- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Luzhou
-
Power:
-
34KW
-
Dimension(L*W*H):
-
8000*9000*2350mm
-
Weight:
-
2800
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
mold stations:
-
24,36,60, 80, or more for choose
-
Features:
-
semiautomatic, banana type
-
Raw material:
-
pu(=ISO+POLY)
-
application:
-
pu soles, safety shoes, slippers, sandals and other pu shoes
-
required labor:
-
3~4 people
Quick Details
-
Production Capacity:
-
500 to 5000 pairs /day
-
Voltage:
-
220V or 380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Luzhou
-
Power:
-
34KW
-
Dimension(L*W*H):
-
8000*9000*2350mm
-
Weight:
-
2800
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
mold stations:
-
24,36,60, 80, or more for choose
-
Features:
-
semiautomatic, banana type
-
Raw material:
-
pu(=ISO+POLY)
-
application:
-
pu soles, safety shoes, slippers, sandals and other pu shoes
-
required labor:
-
3~4 people
Product Description

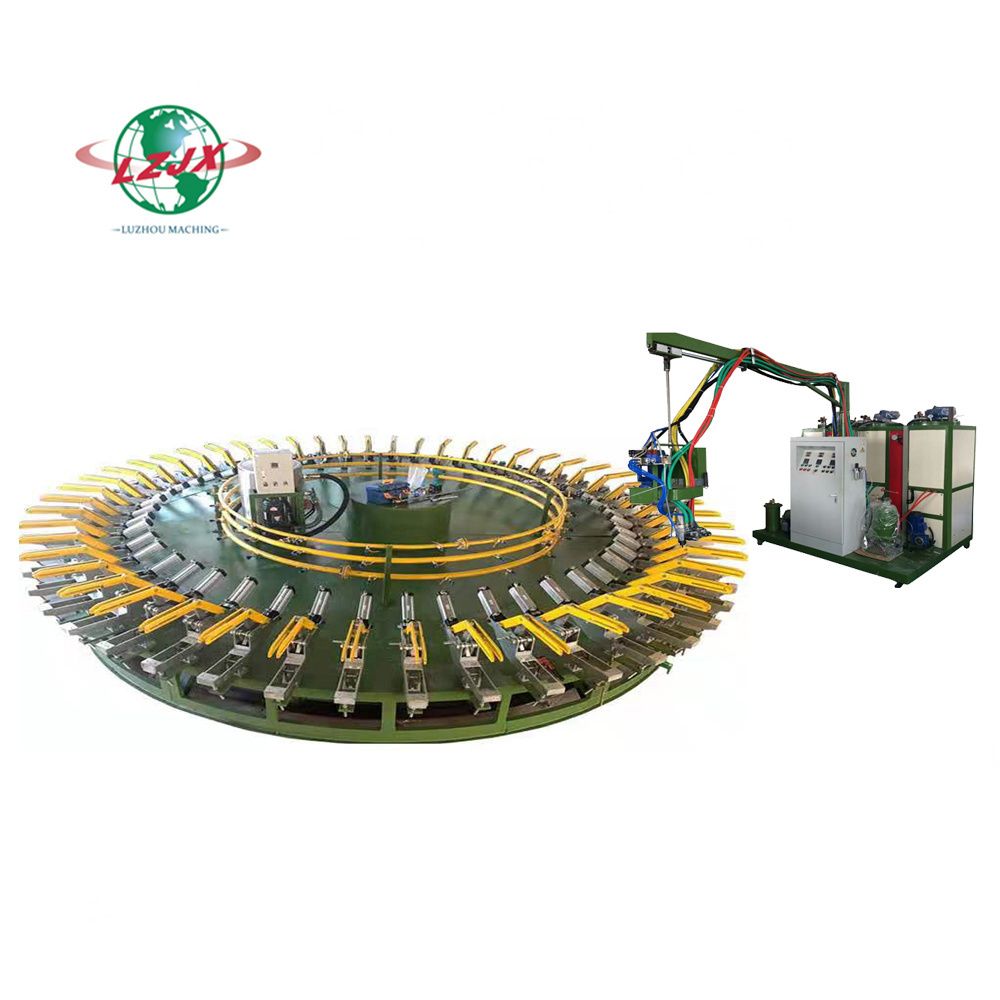

Footwear Soles Pouring Mnufacruring Carousel PU Outsole and Insole Making Machine
This equipment includes one three components low pressure pu foam machine and one automatic banana-type or rotary production line. According to the user's production capacity, the production line has 24, 36, 60, 80,100,120 or other mold stations for choose.
Why Choose Us
1. Most of the components are imported, like the metering pump and electrical components, greatly enhancing equipment running reliability and service life;
2. The moulds can be opened and closed automatically by the pneumatic system which can save the labor cost and around 2~4 people are required for the production only.
3. The molds are heated by circulating water heating system, it can save 3/2 electricity compared with the traditional manual machine, it also makes the temperature of the molds stabler.
4. the injection can be or can not be robotic control, which is customized for the client.
2. The moulds can be opened and closed automatically by the pneumatic system which can save the labor cost and around 2~4 people are required for the production only.
3. The molds are heated by circulating water heating system, it can save 3/2 electricity compared with the traditional manual machine, it also makes the temperature of the molds stabler.
4. the injection can be or can not be robotic control, which is customized for the client.
Product Paramenters
|
Three-components low pressure inject machine
|
Item No.
|
LZ905
|
|
|
type of applicable foam
|
Sole,insole, safety shoe, slipper, sandals, walking shoe, etc.
|
|
|
Flux of inject
|
30g-100g/S (Attention:the flux could be configured)
|
|
|
The mix proportion
|
100-65;100-110
|
|
|
Process of injecting
|
Manual or automatic inject by PLC programmed for choose
|
|
|
Dimension
|
Wide:2.1M; High:2.35M; Long:3.5M
|
|
|
Weight of the machine
|
1.5ton
|
|
banana type and rotary production line with automatic mold stations
|
Pneumatic mold station
|
24,36,60,80,100,120 mold station for choose
|
|
|
Mold station
|
open and close automatically
|
|
|
Material for work station
|
3mm, iron plate
|
|
|
Mold heating way
|
water recycling system
|
|
|
Water heating box
|
150L,304 stainless steel
|
Application
This equipment is used to produce polyurethane insoles, outsoles, high heels, leather shoes, casual shoes, safety shoes, travel shoes,slippers, sandals, flip flops and other all kinds of polyurethane shoes.
