Quick Details
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity
-
Power:
-
0.5~5.5
-
Weight (KG):
-
850 kg
-
Brand:
-
OEM
-
Certification:
-
CE Certificate
-
Maximum dosage:
-
customized
-
Appearance size (mm):
-
2350X840X1960
-
Total power (kW):
-
1.5
-
distance from ground:
-
640
-
Spindle frequency conversion:
-
0.75KW
-
mixer:
-
0.75KW
-
Application:
-
High-contaminated Waste Water Treatment
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DONGMAO
-
Material:
-
Wooden package with film, SS304
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity
-
Power:
-
0.5~5.5
-
Weight (KG):
-
850 kg
-
Brand:
-
OEM
-
Certification:
-
CE Certificate
-
Maximum dosage:
-
customized
-
Appearance size (mm):
-
2350X840X1960
-
Total power (kW):
-
1.5
-
distance from ground:
-
640
-
Spindle frequency conversion:
-
0.75KW
-
mixer:
-
0.75KW
-
Application:
-
High-contaminated Waste Water Treatment
Product Description

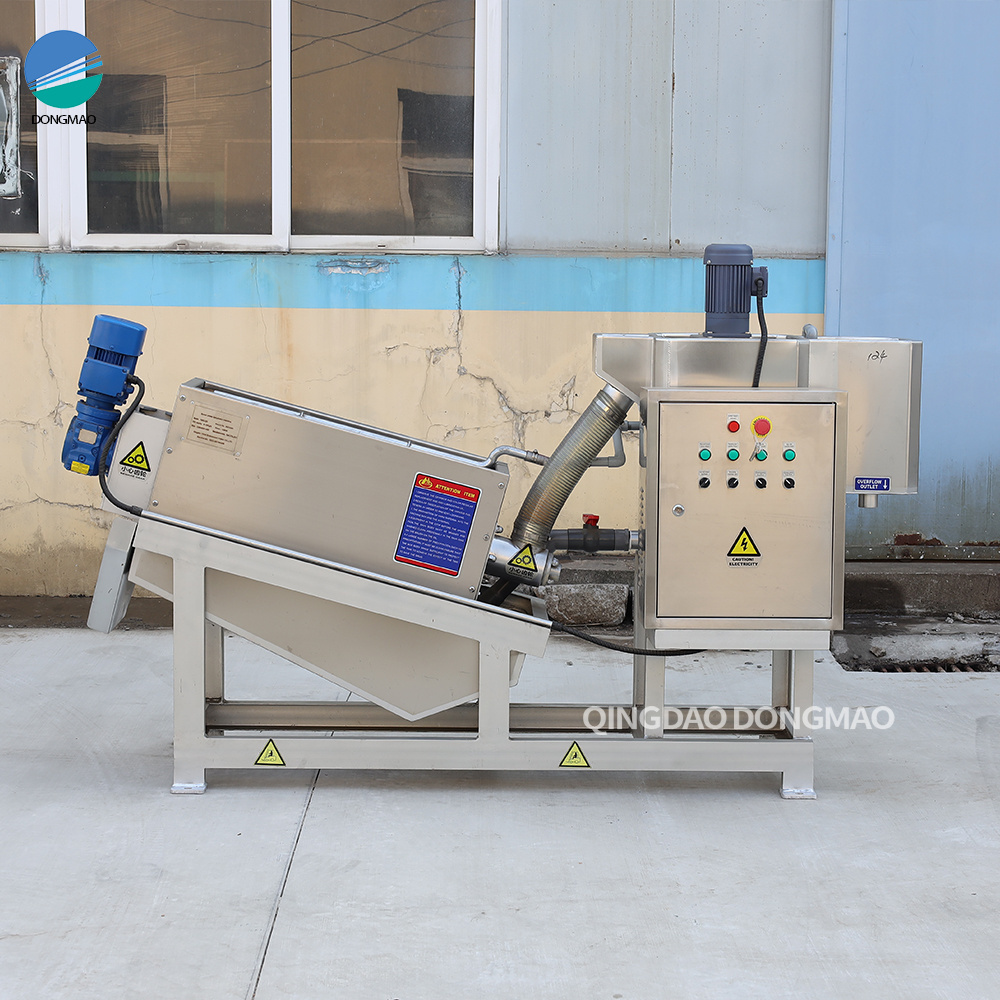

Fold screw type sludge dewatering machine belongs to screw press dehydrator, can reduce the sedimentation tank and sludgeconcentration tank, saving the cost of sewage plant construction. Fold screw type sludge dewatering machine is provided withmultiple ring plate automatic cleaning filter technology replaces the traditional filter sieve, self cleaning filter technology to ensure continuous stability of mud dehydrator separation effect, through the screw diameter and pitch changes produce strong extrusion, and the tiny cracks between swimming ring with fixed ring, implementation to squeeze dewatering of sludge, is a new type of solid-liquid separation.
Main Structure
Application
Specification
|
机型
|
外观尺寸（mm）
|
|
|
总功率（kW）
|
distance from ground
|
Spindle frequency conversion
|
mixer
|
||
|
|
L
|
W
|
H
|
|
|
|
|
||
|
XDHDL101
|
2000
|
750
|
1300RV
|
0.75/
|
390
|
0.37KW
|
0.2/0.37
|
||
|
XDHDL101
|
2750
|
850
|
1600RV 1800TL
|
0.92/
|
550
|
0.55KW
|
0.4/0.37
|
||
|
XDHDL301
|
3700
|
1000
|
1960
|
1.5
|
640
|
0.75KW
|
0.75KW
|
||
|
XDHDL303
|
4000
|
1820
|
2090
|
3.35
|
640
|
0.75KW
|
1.1KW
|
||
|
XDHDL351
|
4100
|
1050
|
2200
|
2.2
|
700
|
1.1KW
|
1.1KW
|
||
|
XDHDL401
|
4400
|
1100
|
2290
|
2.2
|
760
|
1.1KW
|
1.1KW
|
||
|
XDHDL404
|
5300
|
2800
|
2290
|
5.9
|
760
|
1.1KW
|
1.5KW
|
||
