- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
165 KG
-
Power (kW):
-
1.5kw
-
Condition: New:
-
Voltage: 380v/220v
-
Dimension(L*W*H): 700*700*950mm:
-
Warranty: 3 Year
-
Application: Woodworking:
-
Weight (KG): 165 KG
-
Power (kW): 1.5kw:
-
Key Selling Points: High-accuracy
-
Video outgoing-inspection: Provided:
-
Marketing Type: New Product 2020
-
Core Components: Motor:
-
Machinery Test Report: Provided
-
Required air pressure: 4-8kg square:
-
Warranty of core components: 3 Year
-
Cutting stroke: 180mm:
-
Saw blade size: 305mm
-
Aluminum ruler: 1000*35*45mm:
-
Working angle: 45° 90°
-
Cutting thickness: 95mm:
-
Motor power: 1.5kw
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZPOSITIVE
-
Warranty of core components:
-
3Year
-
Weight (KG):
-
165 KG
-
Power (kW):
-
1.5kw
-
Condition: New:
-
Voltage: 380v/220v
-
Dimension(L*W*H): 700*700*950mm:
-
Warranty: 3 Year
-
Application: Woodworking:
-
Weight (KG): 165 KG
-
Power (kW): 1.5kw:
-
Key Selling Points: High-accuracy
-
Video outgoing-inspection: Provided:
-
Marketing Type: New Product 2020
-
Core Components: Motor:
-
Machinery Test Report: Provided
-
Required air pressure: 4-8kg square:
-
Warranty of core components: 3 Year
-
Cutting stroke: 180mm:
-
Saw blade size: 305mm
-
Aluminum ruler: 1000*35*45mm:
-
Working angle: 45° 90°
-
Cutting thickness: 95mm:
-
Motor power: 1.5kw
Product Description
Product Description
Machine Feature:

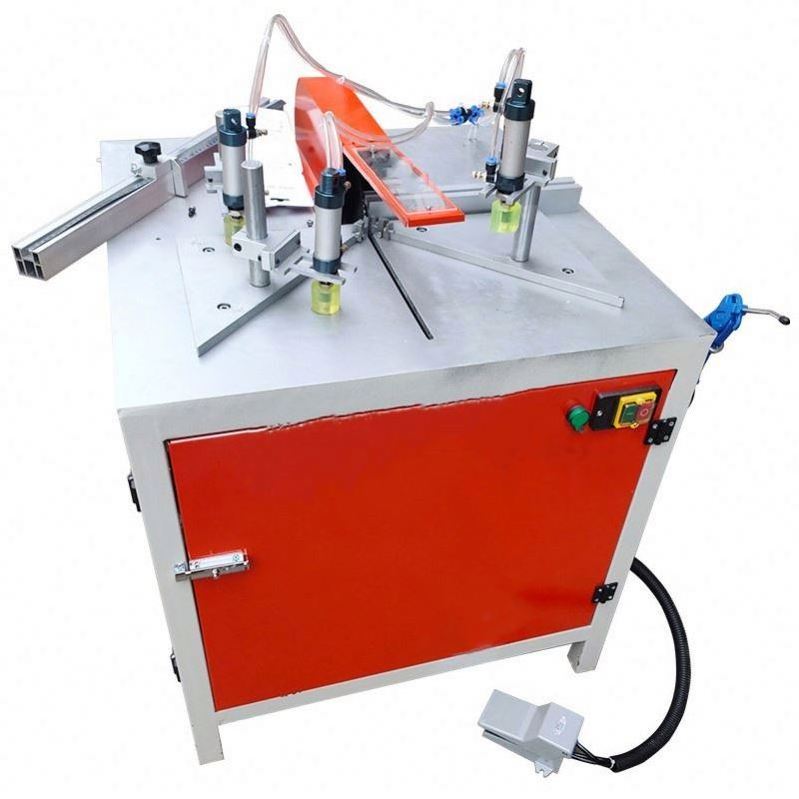

This machine is aluminum profile wood Angle cutting machine, can switch freely 45 90 degrees, processing cutting effect is good, cutting speed is fast and stable, smooth, is a good assistant of all kinds of doors and windows processing industry.
1. SG870C Circular carbide Saw Blade Sharpener Machine Circular Saw carbide Blade Grinding Machine Circular carbideSaw Blade Shaper Machine with quality construction, automatic precision sharpening blade teeth, One key start, It is a complete set of equipment special developed for carbide blade saw and normal blade, computer program automatically controls the grinding of front and rear corners of flat teeth, left and right teeth, three left and one right, three
2. right and one left teeth, all the grinding work finish at one run, do not need to reverse side. Easy to learn and understand, easy operation, functional and precise grinding.
Machine Parameter
Machine Parameter
|
Mode
|
WQ01
|
||||
|
Working form
|
pneumatic electric
|
Operation form
|
semi-automatic
|
||
|
Required air pressure
|
4-8kg square
|
Working voltage
|
220/380V
|
||
|
Frequency
|
50HZ
|
Motor power
|
1.5kw
|
||
|
Saw blade speed
|
6000r/min
|
Working angle
|
45° 90°
|
||
|
Cutting stroke
|
180mm
|
Cutting thickness
|
95mm
|
||
|
Saw blade size
|
305mm
|
weight
|
165kg
|
||
|
Aluminum ruler
|
1000*35*45mm
|
Overall size
|
700*700*950mm
|
||
Application
Application
Packing & Delivery
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
