Quick Details
-
Model Number:
-
WVA4-1...+WCBS3...
-
Brand Name:
-
Winvall
-
Standard or Nonstandard:
-
Standard
-
Certificate:
-
CE/ROHS
-
Rated pressure:
-
PN20
-
Protect rank:
-
IP54
-
Temperature of medium:
-
2°C...90°C
-
Pipe connector:
-
internal thread
-
On-Off time:
-
50~90S
-
Flow characteristic:
-
equal percentage
-
Certification:
-
CE
-
Type:
-
BALL VALVES, Combination Fill & Relief Valves
Quick Details
-
Port Size:
-
1/2'' 3/4'' 1"
-
Warranty:
-
18 Months
-
Place of Origin:
-
Hunan, China
-
Model Number:
-
WVA4-1...+WCBS3...
-
Brand Name:
-
Winvall
-
Standard or Nonstandard:
-
Standard
-
Certificate:
-
CE/ROHS
-
Rated pressure:
-
PN20
-
Protect rank:
-
IP54
-
Temperature of medium:
-
2°C...90°C
-
Pipe connector:
-
internal thread
-
On-Off time:
-
50~90S
-
Flow characteristic:
-
equal percentage
-
Certification:
-
CE
-
Type:
-
BALL VALVES, Combination Fill & Relief Valves
Description

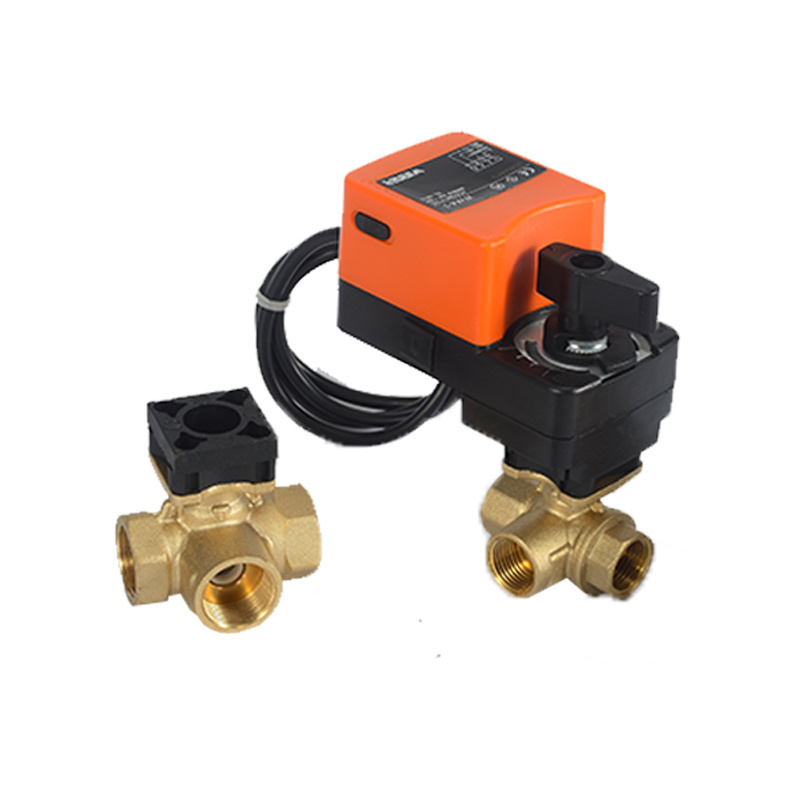

Winner electric control ball valve consists of WAV4- … series rotary actuator and W CBS … series ball valve. Equal percentage flo w characteristic guarantees the valve performances of stability.
Motorized control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.
Operational mode
W inner control ball valve is motor-operated by a type of W AV4-1 … actuator. The actuator is controlled by a modulating on/off , 3-point or proportional control system and move the ball of the valve, to the opening position dictated by the control signal.
Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C... 90 °C
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: − 5…+60°C ; 0…90%RH
Flow characteristic: equal percentage , on/off
Material
V alve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: stainless steel brass stem: EPDM
Valve connector: PC Valve spindle : aluminum alloy
Actuator
WVA4-1 … 2 3 0 V AC ±15% , 3-point
Function ( 3-point,or proportional type )
The actuator is controlled by a modulating on/off, 3-p oint , and proportional control signal, using high transmitting ratio gear drive to fix and lock.
|
Model No. |
Working Voltage |
Actuator type |
Output torque |
Consumption |
Valve body |
|
WVA4-104 |
230VAC±1 5 %
|
3-point or on/off
|
4N.m |
6VA
|
DN25,DN20,DN15 |
|
WVA4-106 |
6N.m |
DN50,DN40,DN32 |
|||
|
WVA4-110 |
10N.m |
DN 50 ,DN 4 0,DN32 |
|
||
