AC/DC Stabilized Variable Switching Mode DC Regulated Power Supply 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V 20A 40A 50A 60A 100A
AC/DC Stabilized Variable Switching Mode DC Regulated Power Supply 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V 20A 40A 50A 60A 100A
AC/DC Stabilized Variable Switching Mode DC Regulated Power Supply 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V 20A 40A 50A 60A 100A
AC/DC Stabilized Variable Switching Mode DC Regulated Power Supply 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V 20A 40A 50A 60A 100A
AC/DC Stabilized Variable Switching Mode DC Regulated Power Supply 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V 20A 40A 50A 60A 100A
AC/DC Stabilized Variable Switching Mode DC Regulated Power Supply 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V 20A 40A 50A 60A 100A
AC/DC Stabilized Variable Switching Mode DC Regulated Power Supply 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V 20A 40A 50A 60A 100A
AC/DC Stabilized Variable Switching Mode DC Regulated Power Supply 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V 20A 40A 50A 60A 100A

AC/DC Stabilized Variable Switching Mode DC Regulated Power Supply 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V 20A 40A 50A 60A 100A

FOB Reference Price: Get Latest Price
≥1 Sets
US $300
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
TWINTEX
Model Number:
SPP series
Output Frequency:
/
Output Current:
20A 40A 50A 60A 100A
Application:
Laboratory use, Factory Test Use
Protections:
OVP, OCP, OTP, OPP
Over Voltage:
Adjustable OVP range 110%
Adjustment:
Coarse and Fine control for voltage and current
Communication:
RS232 interface
Name:
Switching Mode Power Supply
Description:
Switching Mode DC Regulated Power Supply
Type:
Switch Mode DC Power Supply
Output voltage:
12V 15V 24V 30V 32V 36V 48V 50V 60V 72V
Output current:
20A 40A 50A 60A 100A

Quick Details

Input Voltage:
220Vac
Output Voltage:
12V 15V 24V 30V 32V 36V 48V 50V 60V 72V
Place of Origin:
Guangdong, China
Brand Name:
TWINTEX
Model Number:
SPP series
Output Frequency:
/
Output Current:
20A 40A 50A 60A 100A
Application:
Laboratory use, Factory Test Use
Protections:
OVP, OCP, OTP, OPP
Over Voltage:
Adjustable OVP range 110%
Adjustment:
Coarse and Fine control for voltage and current
Communication:
RS232 interface
Name:
Switching Mode Power Supply
Description:
Switching Mode DC Regulated Power Supply
Type:
Switch Mode DC Power Supply
Output voltage:
12V 15V 24V 30V 32V 36V 48V 50V 60V 72V
Output current:
20A 40A 50A 60A 100A
Products Description

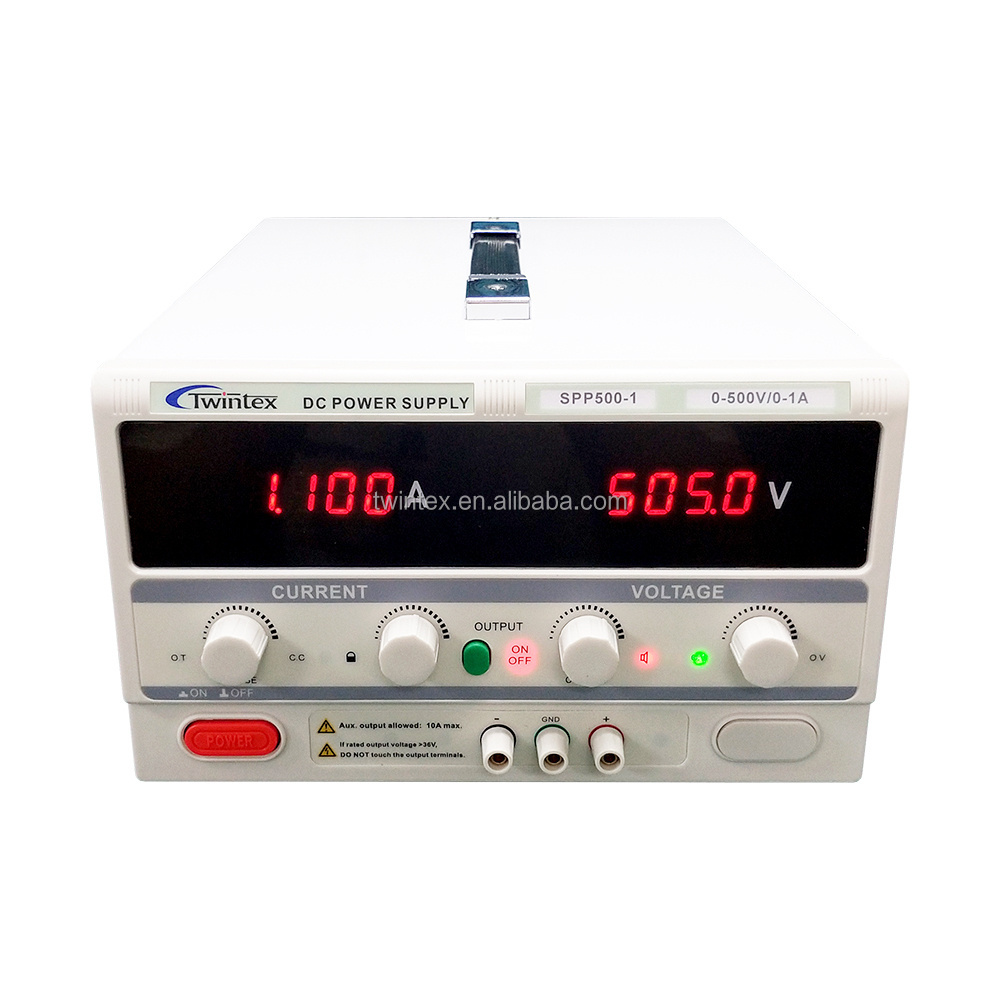

SPP series Programmable Switching Mode DC Power Supply is the upgraded version of TP-S series Switching Mode DC Regulated Power Supply , available from 500W to 6000W in different voltage and current ranges.

The Programmable Switching Mode DC Power Supply makes output voltage maximum 1000V and output current maximum 300A. There are course adjustment and fine adjustment encoder knobs for both voltage and current, making more accurate adjustment.

The voltage ripple is improved from 1% FS to 0.5% FS.
And the display accuracy is improved to 0.1%.

Preset voltage and preset current function is built with Programmable Switching Mode DC Power Supply . Users can set output voltage and current when output is OFF, no need of short connection.

The Programmable Switching Mode DC Power Supply can be made to customized to different rated voltage, from 12V 15V 24V 30V 32V 36V 48V 50V 60V 72V upto 1000V .

Hot models:
SPP30-20: Programmable Switching Mode DC Power Supply 30V 20A
SPP30-30: Programmable Switching Mode DC Power Supply 30V 30A
SPP30-50: Programmable Switching Mode DC Power Supply 30V 50A
SPP30-60: Programmable Switching Mode DC Power Supply 30V 60A
SPP60-30: Programmable Switching Mode DC Power Supply 60V 30A
SPP300-10: Programmable Switching Mode DC Power Supply 300V 10A
SPP500-10: Programmable Switching Mode DC Power Supply 500V 10A
SPP1000-1: Programmable Switching Mode DC Power Supply 1000V 1A .

Features
>>> output power ranging from 500W to 6kW >>> output voltage 1000V, Max. output current 300A >>> MCU digital control and advanced PWM regulation >>> Compact design and light weight >>> Constant voltage (CV) and constant current (CC) operations; Auto CV/CC switch >>> Coarse and Fine control for voltage and current >>> Preset voltage and preset current function
>>> Over voltage, over current and over temperature protections >>> Built-in beeper alarm >>> Panel lock and output ON/OFF function >>> Intelligent temperature control cooling fan >>> RS232/RS485, support MODBUS-RTU commands
>>> Customized specifications and functions acceptable
Specifications
Output power
500W to 6000W
Working mode
PWM
Output
Output voltage
DC 0 to full range adjustable
Output current
DC 0 to full range adjustable
O.V.P. range
DC 1~100%FS
Line regulation
≤0.5%FS
Load regulation
≤0.5%FS
Ripple & Noise
≤0.5%FS rms
Setting accuracy
0.1%FS +1 digit
Display
Voltmeter
4 digits LED display
Ammeter
4 digits LED display
Voltage resolution
0.000-9.999V; 00.00-99.99V; 000.0-999.9V
Current resolution
0.000-9.999A; 00.00-99.99A; 000.0-999.9A
Readback accuracy
0.1%FS +1 digit
Communications
Interface
USB Device, or RS232 or RS485 interface
Protocols
ModBus-RTU
General
Protection
Over voltage, over current, over temperature and over power protections
Operating environment
0°C~40°C, <80%RH
Storage environment
-10°C ~70°C, <80%RH
Power source
AC110V/220V±10%, 50/60Hz
Input module
Power socket or terminal block
Dimension (WxHxD)
260x160x440mm (XL chassis, 1800W~5000W)
Weight
Approx. 4kg to 9kg
Model
Rated Output
Power (W)
Display Resolution
XL chassis, 260Wx160Hx440D mm, 1800W~6000W
SPP15-150
0~15V
0~150A
2250
10mV
100mA
SPP15-200
0~15V
0~200A
3000
10mV
100mA
SPP30-120
0~30V
0~120A
3600
10mV
100mA
SPP30-150
0~30V
0~150A
4500
10mV
100mA
SPP30-200
0~30V
0~200A
6000
10mV
100mA
SPP50-80
0~50V
0~80A
4000
10mV
10mA
SPP50-100
0~50V
0~100A
5000
10mV
100mA
SPP60-60
0~60V
0~60A
3600
10mV
10mA
SPP60-80
0~60V
0~80A
4800
10mV
10mA
SPP60-100
0~60V
0~100A
6000
10mV
100mA
SPP80-40
0~80V
0~40A
3400
10mV
10mA
SPP80-50
0~80V
0~50A
4000
10mV
10mA
SPP80-60
0~80V
0~60A
4800
10mV
10mA
SPP100-40
0~100V
0~40A
4000
100mV
10mA
SPP100-50
0~100V
0~50A
5000
100mV
10mA
SPP100-60
0~100V
0~60A
6000
100mV
10mA
SPP120-30
0~120V
0~30A
3600
100mV
10mA
SPP120-40
0~120V
0~40A
4800
100mV
10mA
SPP120-50
0~120V
0~50A
6000
100mV
10mA
SPP150-30
0~150V
0~30A
4500
100mV
10mA
SPP150-40
0~150V
0~40A
6000
100mV
10mA
SPP200-20
0~200V
0~20A
4000
100mV
10mA
SPP220-20
0~220V
0~20A
4400
100mV
10mA
SPP250-20
0~250V
0~20A
5000
100mV
10mA
SPP300-10
0~300V
0~10A
3000
100mV
10mA
SPP300-15
0~300V
0~15A
4500
100mV
10mA
SPP400-10
0~400V
0~10A
4000
100mV
10mA
SPP500-10
0~500V
0~10A
5000
100mV
10mA
SPP600-5
0~600V
0~5A
3000
100mV
1mA
SPP800-5
0~800V
0~5A
4000
100mV
1mA
SPP800-6
0~800V
0~6A
4800
100mV
1mA
SPP1000-1
0~1000V
0~1A
1000
1V
1mA
SPP1000-2
0~1000V
0~2A
2000
1V
1mA
SPP1000-3
0~1000V
0~3A
3000
1V
1mA
