Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
USUN
-
Model Number:
-
GBD40-OL
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
5.5HP
-
Cable Length:
-
None
-
Outlet Size:
-
NPT1/4
-
Power:
-
None
-
Theory:
-
Reciprocating Pump
-
Material:
-
Stainless steel and Alluminum
-
Drive air range:
-
Compressed air of 3-10 Bar
-
Driven piston diameter:
-
160MM
-
Pump ratio:
-
40:1
-
Working medium:
-
Normal air ,nitrogen/helium/argon/Co2 gas
-
Maximum output pressure:
-
320 Bar Output base on 8 bar air driven pressure
-
Fuel:
-
Compressed air
Quick Details
-
Application:
-
Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers
-
Pressure:
-
Maximum 300 Bar
-
Voltage:
-
None
-
Warranty:
-
1 year
-
Brand Name:
-
USUN
-
Model Number:
-
GBD40-OL
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
5.5HP
-
Cable Length:
-
None
-
Outlet Size:
-
NPT1/4
-
Power:
-
None
-
Theory:
-
Reciprocating Pump
-
Material:
-
Stainless steel and Alluminum
-
Drive air range:
-
Compressed air of 3-10 Bar
-
Driven piston diameter:
-
160MM
-
Pump ratio:
-
40:1
-
Working medium:
-
Normal air ,nitrogen/helium/argon/Co2 gas
-
Maximum output pressure:
-
320 Bar Output base on 8 bar air driven pressure
-
Fuel:
-
Compressed air
WHY CHOOSE OUR PUMP?
This brochure introduces pneumatic driven gas/Hydraulic boosters and Complete booster system.
These gas booster pump offer a flexible and efficient source for delivering high pressure gases.
1 . Oxygen or High Purity cleaning : Our booster are noted for their cleaniness and can handle pure gases such as
oxygen without risk of any contamination.We will use customized lubricants for oxygen and also clean it with ultrosonice cleaner
2 . High Flow rates at High pressure : W hen High flow rates at high pressure are needed ,the booster
can charge a receiver to an even higher pressure level ,thus storing a volume of gas aviable for rapid release at a constant
pressure through a pressure reducing valve
3.Cost savings: Most Industrial gases are commonly delivered at pressure of 2000-2600 Psi in steel cylinders .If the
Gas is to be used well bellow the supply pressure ,the pressurized supply is easily piped and controlled to the point of use
with simple valving .However,if the end user requires the gas to be used at higher pressure then the supply it will have to be
boosted gas.Gas booster can untilize all the gas from a supply source such as cylinder and boost the gas to whatever
pressure and flows are required by the application thus untilizing all the gas volume from the supply source .

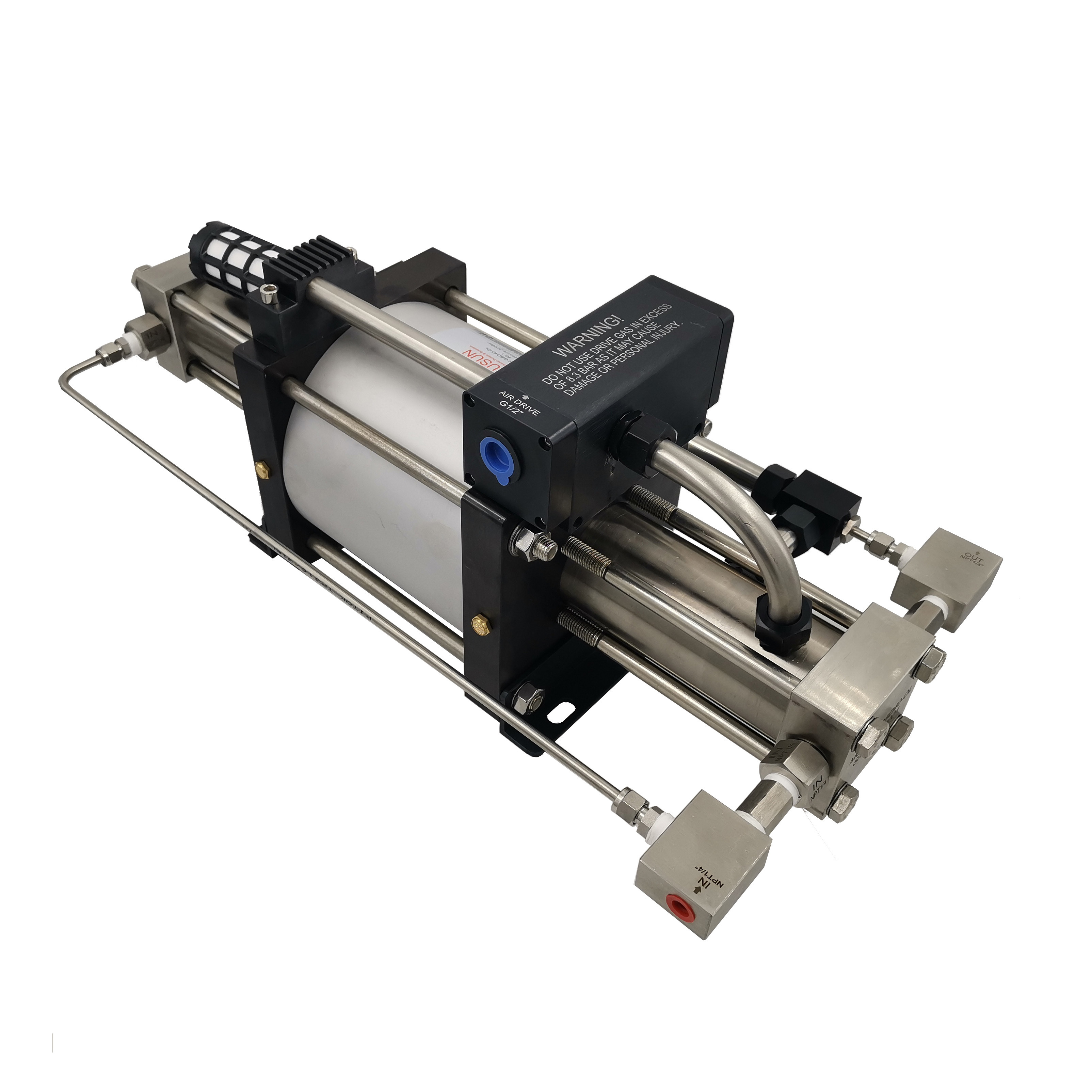

USUN Model:GBD40-OL 200-300 Bar double acting
oxygen gas filling pump
Application : Nitrogen filling stations ,charging high pressure gas cylinders and receivers . Gas assisted plastic injection
molding Hydraulic accumulator charging ,Components testing ,Automotive hoses and component gas testing ,biogas charging and pressure tank vessel leakage testing
|
Item Model
|
GBD40-OL double acting oxygen gas filling pump |
|
|
Action type
|
Double acting,single air drive | |
|
Air driven
pressure |
3-10 Bar | |
|
Dealing with
air source |
Compressed and dry air and air regulator on air driven port | |
|
Lubrication
|
No and Non-lubrication for oxygen gas | |
|
Operating
temperature |
-4-65 degree for air driven section and Maximum temperature for gas barrel ection is not more than 115 degrees |
|
| Theory of operation |
The gas booster consist of a large reciprcating air driven piston directly and coupled by a connecting rod to small area gas piston.The gas piston operates in a high pressure gas barrel section .Each gas barrel end contains high pressure inlet and outlet check valves |
|
|
Suitable
gases for
pumping |
Nitrogen(N2), Helium (He2) ,Breathing air (N202) ,Carbon dioxideCo2)Argon (Ar) ,Neon( Ne) ,Oxygen(O2) and so on . Noted:Liquefied gases( Propane,Co2 ,halons) Can be boosted as a liquid and gas in controlled applications |
|
|
Installation |
Any |
Product features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable cycling speed and output
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. No limit or adverse affect to contineous stop/start applications
6.Seals system designed for long working life,No airline lubricated required
7.Built-in coupling system (Most models) and suitable for most gases boosting
Main technical parameter
| Model | Pressure ratio | Minimum inlet pressure PI(Bar) | Maximum Outlet pressure PO(Bar) | Outlet pressure formula PO | Inlet port size | Outlet porst size |
Maximum Flow rate L/min= 6 Bar |
| GBD07 | 7:1 | 3.4 | 56 | 7PA+PI | PT3/8'' | PT3/8'' | 513@PI=6 |
| GBD10 | 10:1 | 3.4 | 83 | 10PA+PI | PT3/8'' | PT3/8'' | 393@PI=6 |
| GBD15 | 15:1 | 3.4 | 124.5 | 15PA+PI | PT3/8'' | PT3/8'' | 389@PI=6 |
| GBD25 | 25:1 | 7.5 | 207.5 | 25PA+ PI | PT1/4'' | PT1/4'' | 174@PI=6 |
| GBD40-OL | 40:1 | 12 | 332 | 40PA+PI | PT1/4' | PT1/4'' | 112@pi=6 |
| GBD60 | 60:1 | 21 | 498 | 60PA+PI | PT1/4'' | PT1/4'' | 125@PI=6 |
| GBD100 | 100:1 | 35 | 830 | 100PA+ PI | PT1/4'' | PT1/4'' | 94@pi=6 |
| GBD130 | 130:1 | 50 | 1090 | 130PA+ PI | PT1/4'' | PT1/4'' | 75@PI=6 |
PA= Air driven pressure PI=Inlet pressure Po=Outlet pressure
Those data is theoretical and it is just for reference .
Product outview drawing
Product Gas flow chart
