Quick Details
-
Output Speed:
-
14-280rpm
-
Weight (KG):
-
50
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ever-power
-
Ratio:
-
7.5~100
-
Certification:
-
ISO9001-2008
-
Mount Position:
-
Foot Mounted
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
800~100000N.m
-
Input Speed:
-
1400rpm
-
Output Speed:
-
14-280rpm
-
Weight (KG):
-
50
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ever-power
-
Ratio:
-
7.5~100
-
Certification:
-
ISO9001-2008
-
Mount Position:
-
Foot Mounted

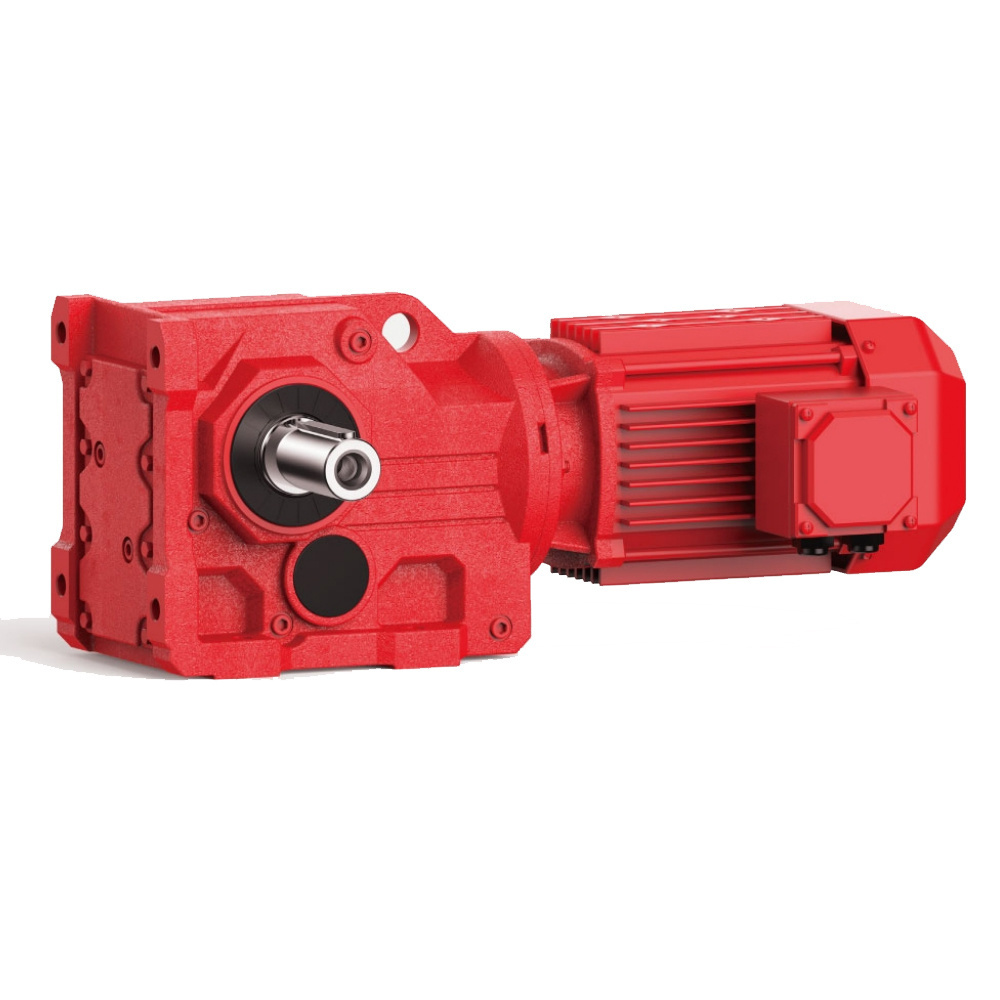

K Series Helical Bevel Reduction Gearbox
Features of products
1. Highly Standard Modular Designed: The products are easily connected with and driven by different types of motors and various input power. The same type geared motor can be adapted to optioned powers of motors. It is therefore easy to realize different solution for varied requirements.
2. Ratio: Featured many closely divided ratios and wide range of them. Very big final ratios can be obtained through combined unites to reach extremely low output speeds.
3. Mounting Arrangement: No strict limitation to the mounting arrangement.
4. High Strength, Compact Dimension: Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburizing process and precise grounding to sequentially get high loading capacity of per certain volume.
5. Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (expect those easily-disabled parts) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.
6. Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.
7. High Efficiency: The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%.
8. Large radial loading ability.
9. Axial load ability of up to 5% of radial load.
1. Highly Standard Modular Designed: The products are easily connected with and driven by different types of motors and various input power. The same type geared motor can be adapted to optioned powers of motors. It is therefore easy to realize different solution for varied requirements.
2. Ratio: Featured many closely divided ratios and wide range of them. Very big final ratios can be obtained through combined unites to reach extremely low output speeds.
3. Mounting Arrangement: No strict limitation to the mounting arrangement.
4. High Strength, Compact Dimension: Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburizing process and precise grounding to sequentially get high loading capacity of per certain volume.
5. Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (expect those easily-disabled parts) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.
6. Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.
7. High Efficiency: The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%.
8. Large radial loading ability.
9. Axial load ability of up to 5% of radial load.
|
Model:
|
K Series - Foot-mounted, solid shaft output
KAB Series - Foot-mounted, hollow shaft output KA Series – Keyed hollow shaft output KF Series – B5 Flange-mounted, solid shaft output KAF Series – B5 Flange-mounted, hollow shaft output KAZ Series – B14 Flange-mounted, hollow shaft output KAT Series – Hollow shaft output, torque arm KH, KHB, KHF, KHZ Series – Hollow shaft output, shrink disk KV, KVB, KVF, KVZ Series – Hollow shaft output, splined hollow shaft K(KA, KF, KAF, KAB, KAZ)S Series – Solid shaft input |
|
Housing
|
Cast Iron
|
|
Input power
|
0.12-200kw
|
|
Output torque
|
10-61900N.m
|
|
Output speed
|
0.08-261rpm
|
|
Bearing
|
C&U Bearing,NSK,SKF or on request
|
|
Ratio
|
5.36~178.37
|
|
Installation Form
|
Foot, Flange, Shaft Mounted
|
|
Seal
|
SKF,CTY,CFW or on request
|
|
Gears
|
Helical-bevel Gears
|
|
Input Configurations
|
Equipped with Electric Motors
Solid Shaft Input IEC-normalized Motor Flange |
|
Applicable Motors
|
Single Phase AC Motor, Three Phase AC Motor
Brake Motors Inverter Motors Multi-speed Motors Explosion-proof Motor Roller Motor |
|
Output Configurations
|
Solid Shaft Output
Hollow Shaft Output |
|
nstallation
|
Foot-mounted
B5 Flange-mounted B14 Flange-mounted Shaft-mounted |
|
Lubrication
|
Oil-bath and Splash Lubrication
|
Installation Method
For more models, please contact us！
