Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PBM
-
Voltage:
-
24 VDC
-
Certification:
-
RoHS ErP CE
-
Product name:
-

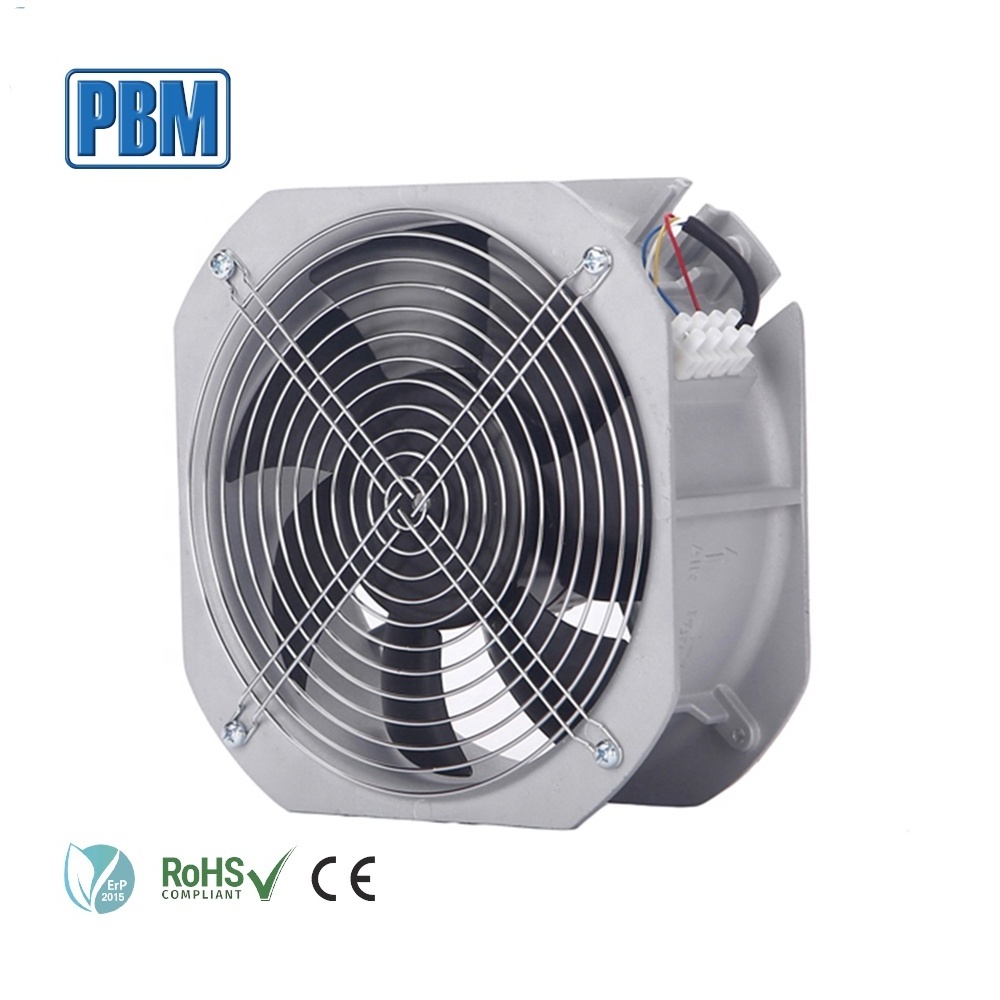

DC Exhaust Fan EC Motor Ventilation Components for Air Handing Units
-
Fan type:
-
DC Axial Fan,Exhaust Fan
-
Usage:
-
Telecom Station, Heat Exchanger
-
Cooling Method:
-
Direct Cooling
-
Demension:
-
280x280x80mm
-
Fan Feature:
-
0~10VDC/PWM Speed Control, Tach Output
-
Frame Material:
-
Aluminum Alloy
-
Air Pressure:
-
220 PA
-
Rated Current:
-
4.4 A
Quick Details
-
Applicable Industries:
-
Hotels, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Other
-
Electric Current Type:
-
DC
-
Mounting:
-
FREE STANDING
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PBM
-
Voltage:
-
24 VDC
-
Certification:
-
RoHS ErP CE
-
Product name:
-
DC Exhaust Fan EC Motor Ventilation Components for Air Handing Units
-
Fan type:
-
DC Axial Fan,Exhaust Fan
-
Usage:
-
Telecom Station, Heat Exchanger
-
Cooling Method:
-
Direct Cooling
-
Demension:
-
280x280x80mm
-
Fan Feature:
-
0~10VDC/PWM Speed Control, Tach Output
-
Frame Material:
-
Aluminum Alloy
-
Air Pressure:
-
220 PA
-
Rated Current:
-
4.4 A
Product name: EC exhaust centrifugal fan for gym equipment
Fan type: dc axial fan
PBM Motor and Fan is a China mainland manufacturer and EC technology consulting company offering an extensive range of EC(Electronically Commutated) motors, fans and solutions, investing in the latest developing, manufacturing and technical equipment with in-depth processes & procedures. Our main products are EC fans, including EC axial fans, EC centrifugal fans and EC blowers. We do both AC and DC current type. And EC Motor is the core technology of our products.
Eletronically Commutated Motors(EC Motors)also known as Brushless DC Motors(BLDC) are synchronous electric motors powered by direct-current(DC) electricity and having electronic commutation systems,rather than mechanical commutators and brushes.The current-to-torque and voltage-to-speed relationships of BLDC motors are linear.
PBM fans are widely used in many fields. For example, axial fan for telecom, backward curved centrifugal fan for air exchanger,(inline duct fan)hydroponic products and FFU, forward curved centrifugal fan for air purifier and air conditioning,blower for kitchen.
| Model | Motor |
Bearing
System |
Rated
Voltage |
Operating
Voltage |
Rated
Current |
Rated Power |
Rated
Speed |
Air Flow |
Air
Pressure |
Noise
Level |
| Part NO. | Type | B / S | VDC | VDC | A | W | RPM | M3/H | Pa | dBA |
| PA3N250B24H | BE92DC | BALL | 24 | 16~28 | 4.4 | 105 | 2,750 | 1900 | 220 | 69 |
| PA3N250B48H | BE92DC | BALL | 48 | 36~57 | 2.2 | 105 | 2,750 | 1900 | 220 | 69 |
