Quick Details
-
Power:
-
25KW
-
Dimension(L*W*H):
-
11000*1200*2000 mm
-
Weight:
-
8000
-
Main material:
-
stainless steel 304,314
-
Accessories:
-
Easily damaged parts, tool case for free
-
color:
-
silver
-
style:
-
full automatic wet tissue machine
-
type:
-
suit for 5~30 pcs/pack wet wipe
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Package:
-
Spray antirust oil,PE film,wooden case
-
Lead time:
-
40~45 working days
-
Price:
-
negotiable
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Chuangda
-
Voltage:
-
380V 50HZ
-
Power:
-
25KW
-
Dimension(L*W*H):
-
11000*1200*2000 mm
-
Weight:
-
8000
-
Main material:
-
stainless steel 304,314
-
Accessories:
-
Easily damaged parts, tool case for free
-
color:
-
silver
-
style:
-
full automatic wet tissue machine
-
type:
-
suit for 5~30 pcs/pack wet wipe
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Package:
-
Spray antirust oil,PE film,wooden case
-
Lead time:
-
40~45 working days
-
Price:
-
negotiable
-
Certification:
-
CE
CD-2008II Automatic Servo Wet Wipe Machine, wet wipes making machine, wet wipes production line
Functions and features:
1) This machine has two lines for producing wet wipes.
2) with servo motors control
3) adotp central unwinding nonwoven rolls, with automatic tension control system.
4) the length of nonwoven can be adjusted.
5) individual running, can use one line for producing if you don't want to use two lines.
6) It is easy and function is very steady.
7) T he part touching with the liquid is made by stainless steel, the machine with beautiful outline it is
controlled by PLC.
8) All the processes are finished on the machine.
9) Production speed is high and sanitary.
Working flow:
unrolling raw material → folding → wetting → cutting → counting wipe → transport wipe
to packing → output finished products.
Technical Parameter:
|
Electric supplier |
380 V,50HZ , 3 phase |
|
Total power |
20 KW |
|
Suitable material |
Spun-lace non woven . Cotton material |
|
40- 6 0 gsm |
|
|
Raw material size |
W :(320-440)MM ,Dia: 1200MM |
|
Production size ( Unfolded) |
(160-220)*(1 6 0-220)mm ( L*W) |
|
Production size ( folded) |
(8 5 -110)*( 65 - 75 )mm (L*W) |
|
Design speed |
1000pcs/min |
|
Steady production speed |
800 pcs/ min |
|
Folding way |
"Z” ,Double “ Z” folding and then V folding |
|
Counting way |
Auto counting system, the number pcs per pile can be changed. |
|
Raw material ( Non woven) |
Width guiding system |
|
Suitable packing size |
5-30pcs per bag packing |
|
Finished production size |
((140-180)*(70-90)*(10-50)mm L*W*H |
|
Design speed of packing machine |
80 bags/min |
|
Steady speed |
Eg: 10pcs/bag:70-80bags/min, 20pcs/bag: 35-40bags/min |
|
Humidification agitation |
Double agitating drums with agitator |
|
Water tank size |
2000*1100*1900mm ( L*W*H) |
|
The function of packing machine |
Auto punching system, with insert corner, Euro hole system |
|
Packing material |
PE&PET, OPP&PE |
|
Control system |
PL C, touch screen |
|
Machine size |
11000*1200*2000 mm (L*W*H) |
|
Machine weight |
8000 kg |
|
Efficiency |
>=95% |
|
Waster |
<=2% |

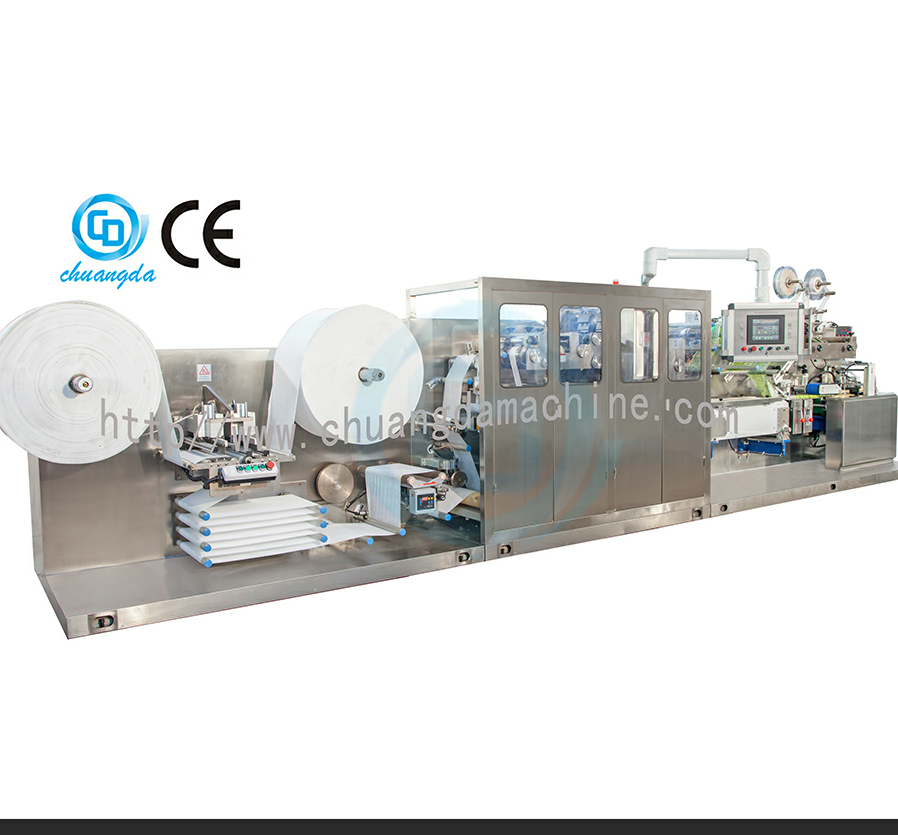

Pictures of Machine:
Pictures of final product:
After Service:
1) Guarantee: 1 year, lifelong maintanance.
2) Buyer's engineer visit to learning is available.
3) Seller's engineer go to buyer's factory to install the machine and train the buyer's engineer.
4) One to One service 24Hours.
5) Within 12hours responses against per your esteemed favour.
6) Technology&staffs support including long-distance and your installation sites.
