Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
oceanlink
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500mm
-
Weight (KG):
-
1400
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
optional
-
Shape:
-
various
-
Command Language:
-
G code
-
X,Y Resolution:
-
<0.01mm
-
Flash Memory:
-
128M(U Disk)
-
Frame:
-
Welding steel
-
Marketing Type:
-
New Product
-
Certification:
-
CE
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
oceanlink
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500mm
-
Weight (KG):
-
1400
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
optional
-
Shape:
-
various
-
Command Language:
-
G code
-
X,Y Resolution:
-
<0.01mm
-
Flash Memory:
-
128M(U Disk)
-
Frame:
-
Welding steel
-
Marketing Type:
-
New Product
-
Certification:
-
CE

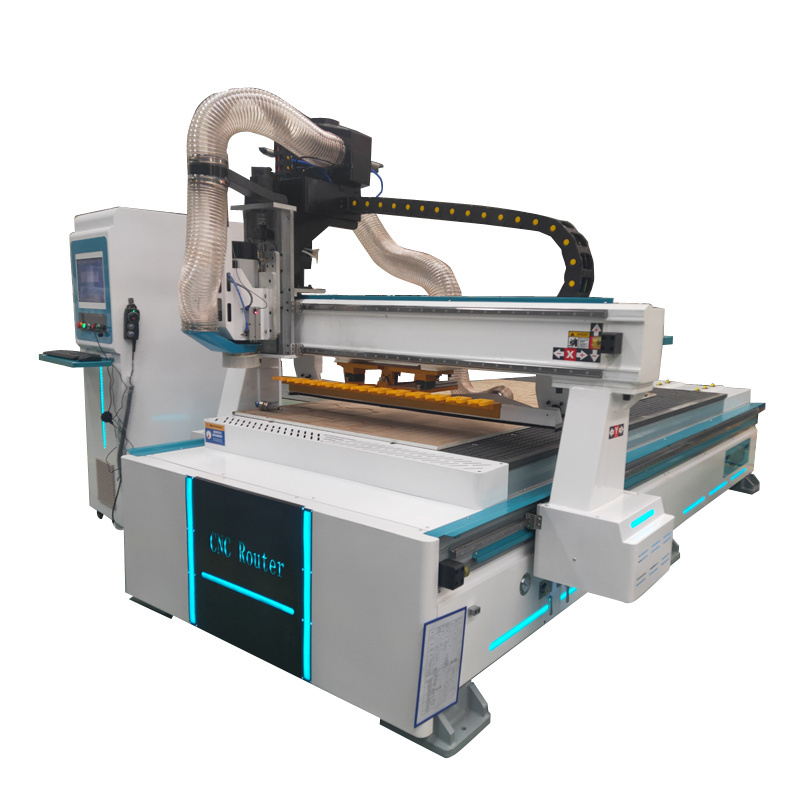

1325 cnc router with four spindle/multi heads cnc router machine
Machine Feature
v Imported linear square rails , dual four slider, large loading capacity, smooth operation and high knife precision.
v Constant power spindle motor, cutting intensity, high efficiency.
v Adopting u-plate flush type all off-line control system makes operation more convenient.
v Two-way tool cooling system, effectively raising tool life.
v Z axis height can be increased to 2.1meters, large surface processing, and suitable for large and medium-sized three-dimensional surface processing.
v Intelligent processing cross-border protection function to prevent the mechanical impacts due to processing oversize design documents.
v Diversified control can separately control the processing speed , idling speed, cutting speed, greatly improving the quality of products and processing efficiency.
Appliable Material
Wood, Metal (Iron, Steel, Steel, A-alloy, Copper, Aluminum , etc), Plastic, PVC, PCB, Hard leather,Marble, Granite, Stone, etc.
Applicable fields
ü Advertising industry: advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
ü Die industry: a sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
ü Other industries: a variety of large-scale relief sculpture, video carving, widely used in process industries gifts.
Machine Parameter
|
X,Y,Z Working Area |
13 00x 25 00x 3 00mm |
|
X,Y,Z Traveling Positioning Accura te |
±0.03/300mm |
|
X,Y,Z repositioning Positioning Accura te |
±0.02mm |
|
Table Surface |
T-Slot work table |
|
Frame |
Welding stee l |
|
X, Z Structure |
Ball Screw |
|
Y Structure |
Hiwin Rail Linear Bearings and Ball Screw |
|
Max. Rapid Travel Rate |
8000mm/min |
|
Max. Working Speed |
6000mm/min |
|
Spindle Power Motor |
3kw water cooling spindle*4 |
|
Spindle Speed |
0- 24 000RPM |
|
Drive Motors |
Stepper system |
|
Working Voltage |
AC 380 V/50 HZ |
|
Command Language |
G code |
|
Operating System |
Mach3 PC Software (Option:DSP System) |
|
Interface |
USB |
|
Flash Memory |
128M(U Disk) |
|
Collet |
ER16 |
|
X,Y Resolution |
<0.01mm |
|
Running Environment |
Temperature: 0°C~45°C Relative humidity: 30%~75% |
Since our machines are in very high quality, so we provide two years warranty, while are factories only provide one year warranty.
- Friend, this kind of machine is quite mature, it seldom has problem. Now the internet is very developed, do the after sale sevice by Internet is a trend. We have 4G internet and phone, we can provide clear video anytime.
- After the machine finish and before it shiped, we test the machine at least 3 times. And we will totally according to your machine make detailed video, and take pictures to show you how to install the machine step by step. It is easy to learn.
- When the machine arrive, we have professional after sale person, they will guide you how to install and operate the machine step by step.
- We have a paid video platform, later we will give you the password. When you meet any problem, you can make video and upload it. Then we will know and tell you how to solve the problem. This is easy and convenient.
