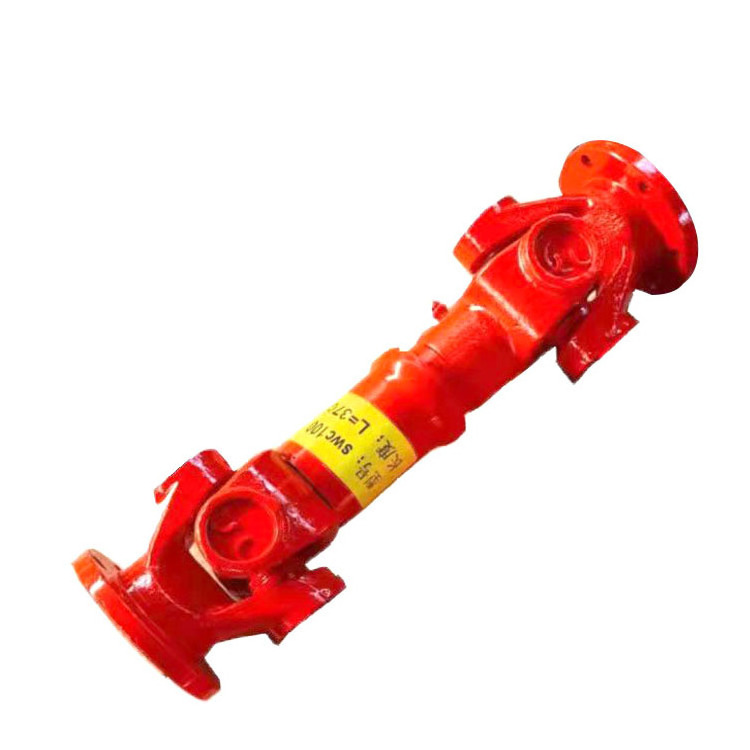

Industrial Cardan Joint Drive Shaft Universal Coupling for Rolling Wire Line

Industrial Cardan Joint Drive Shaft Universal Coupling for Rolling Wire Line

FOB Reference Price: Get Latest Price

≥2 Pieces

US $65.55

≥500 Pieces

US $35.55

≥1000 Pieces

US $25.55

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Standard or Nonstandard:: Standard

Material:: Steel,Stainless steel,Aluminium

Brand Name:: MCPT

Place of Origin:: Jiangsu, China

Product name:: Drive Shaft Universal Coupling

Keyword:: cardan shaft

Size:: Standard Size or Customizesd Size

Customized:: Surpport OEM ODM

Feature:: corrosion resistance, durability

Surface Treatment:: Painting

Usage:: Machinery Equipment

Type:: Flange Disc Universal Coupling (light Duty)

Packing:: Carton or Wooden Case

Maximum speed(r/min):: 0-2000

Quick Details

Warranty:: 1 year

Applicable Industries:: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining

Structure:: Universal

Standard or Nonstandard:: Standard

Material:: Steel,Stainless steel,Aluminium

Brand Name:: MCPT

Place of Origin:: Jiangsu, China

Product name:: Drive Shaft Universal Coupling

Keyword:: cardan shaft

Size:: Standard Size or Customizesd Size

Customized:: Surpport OEM ODM

Feature:: corrosion resistance, durability

Surface Treatment:: Painting

Usage:: Machinery Equipment

Type:: Flange Disc Universal Coupling (light Duty)

Packing:: Carton or Wooden Case

Maximum speed(r/min):: 0-2000

Product Description

The Cross Universal Joint Shaft Coupling is suitable for various mechanical occasions and has the characteristics of large transmission torque, long service life and wide application range. Its application especially provides favorable conditions for the technical transformation and replacement of mechanical products in the metallurgical industry. The keyway of inner diameter 16~22 is 6mm, and the keyway of inner diameter 25~30 is 8mm. It can isolate or absorb axial vibration and shock, and has significant advantages such as large torque, reducing accidents, small transmission inertia, large adjustment angle, convenient installation, wide application range and long service life. It is suitable for all kinds of general machinery. The maximum speed can reach 1000rpm. There are single and double sections to choose from. The maximum rotation angle of each section is 45 degrees. G type is single-section type, GD is double-section type

There are various structural types of universal couplings, such as: cross shaft type, ball cage type, ball fork type, convex block type, ball pin type, ball joint type, ball joint plunger type, three pin type, three fork rod type, three ball pin type, hinge rod type, etc; The most commonly used is the cross axis type, followed by the cage type. In practical applications, according to the magnitude of the transmitted torque, it is divided into heavy, medium, light, and small.

Cross Universal Joint Shaft Coupling Features 1.Application to all kinds of general mechanical situation, maximum rotate speed may reach1000~1500r/min. Our Universal Joint widely used in multiaxle drilling machine ,construction machine,packaging machine,automobile.parking facility and paper machine,medical machine,farm machine 2.Have single -jointed type and bimodal type 3.Each point of the largest rotation angle can be 45° 4.Needle roller bearing,maintenance-free 5.The hole on the finshed product tolerance is H7 according to spline , hexagonal and square hole are available as long as you request.

Specification

Product name	Drive Shaft Universal Joint coupling
Material	Steel,Stainless steel, Aluminum Alloy
Performance	The universal joint has a compact and reasonable structure, high load-bearing capacity, high transmission efficiency, smooth transportation, low noise, and convenient installation, disassembly, maintenance
Surface treatment	Blackening or as your requested
Applicable Industries	Drive Shaft Universal Joint coupling widely used in rolling mill, punch, straightener, crusher, ship drive, paper making equipment, common machinery, water pump equipment, test bench, and other mechanical applications.

Applications

Packing & Delivery

Standard Package:Carton ,Wooden box or as your need. Efficient logistics delivery upon customer requirement, we can supply express
shipment, air shipment, truck shipment and sea shipment, etc.
