Quick Details
-
Temperature Range:
-
-40 to 80℃
-
Rated Power:
-
130 Watts
-
Model Number:
-
NS-5S-Z3
-
Wattage:
-
130 w, 130W
-
Lamp Type:
-
LED
-
Lumens:
-
13000lm
-
voltage:
-
9-32V DC
-
LED Chip:
-
Imported 4575 CSP Chip
-
Heatsink:
-
2 heat pipes with cooling fins
-
Cooling fan:
-
High speed fan
-
Color Temperature:
-
6500 K
-
Polarity:
-
NO
-
CANBUS:
-
Error free
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NSSC
-
Warranty:
-
18 months
-
Temperature Range:
-
-40 to 80℃
-
Rated Power:
-
130 Watts
-
Model Number:
-
NS-5S-Z3
-
Wattage:
-
130 w, 130W
-
Lamp Type:
-
LED
-
Lumens:
-
13000lm
-
voltage:
-
9-32V DC
-
LED Chip:
-
Imported 4575 CSP Chip
-
Heatsink:
-
2 heat pipes with cooling fins
-
Cooling fan:
-
High speed fan
-
Color Temperature:
-
6500 K
-
Polarity:
-
NO
-
CANBUS:
-
Error free

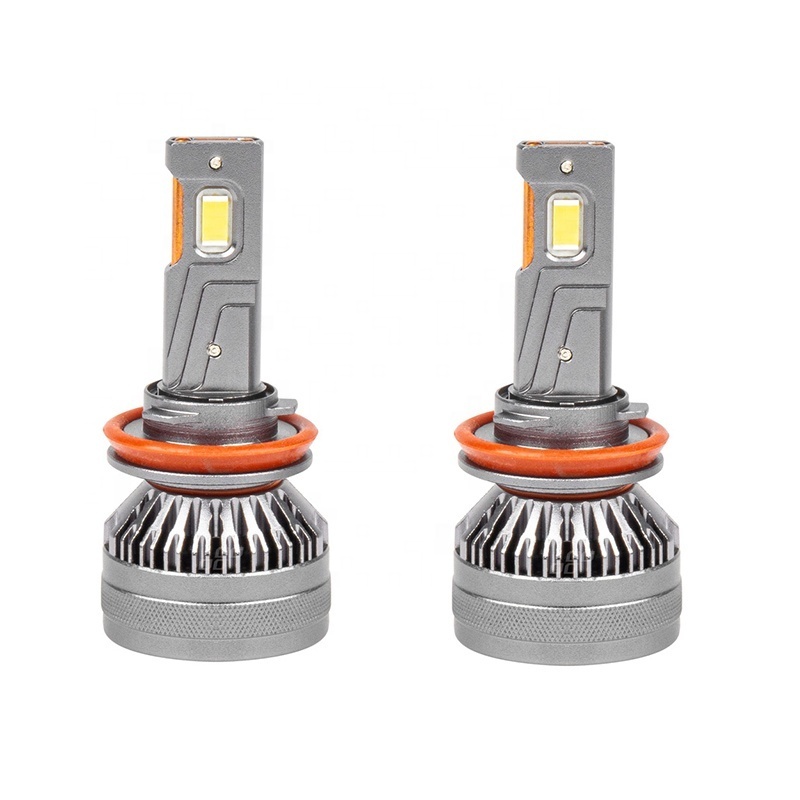

Product Description
|
Model NO.
|
NS-5S-Z3-H1
|
|
SEREIS
|
SUPER CANBUS with external driver
|
|
EFFICIENT POWER
|
55W/bulb
|
|
EFFICIENT LUMEN
|
5500lm/bulb
|
|
VOLTAGE
|
DC 9-32V
|
|
LED CHIPS
|
4575 55mil high intensity CSP
|
|
HOUSING
|
6063 Aluminum
|
|
PCB
|
Double-side Copper plate
|
|
COOLING
|
2 heat pipes + cooling fan
|
|
Model NO.
|
NS-5S-Z3-H4
|
|
SEREIS
|
SUPER CANBUS with external driver
|
|
EFFICIENT POWER
|
55W/bulb
|
|
EFFICIENT LUMEN
|
5500lm/bulb
|
|
VOLTAGE
|
DC 9-32V
|
|
LED CHIPS
|
4575 55mil high intensity CSP
|
|
HOUSING
|
6063 Aluminum
|
|
PCB
|
Double-side Copper plate
|
|
COOLING
|
2 heat pipes + cooling fan
|
|
Model NO.
|
NS-5S-Z3-H7
|
|
SEREIS
|
SUPER CANBUS with external driver
|
|
EFFICIENT POWER
|
55W/bulb
|
|
EFFICIENT LUMEN
|
5500lm/bulb
|
|
VOLTAGE
|
DC 9-32V
|
|
LED CHIPS
|
4575 55mil high intensity CSP
|
|
HOUSING
|
6063 Aluminum
|
|
PCB
|
Double-side Copper plate
|
|
COOLING
|
2 heat pipes + cooling fan
|
|
Model NO.
|
NS-5S-Z3-H11
|
|
SEREIS
|
SUPER CANBUS with external driver
|
|
EFFICIENT POWER
|
55W/bulb
|
|
EFFICIENT LUMEN
|
5500lm/bulb
|
|
VOLTAGE
|
DC 9-32V
|
|
LED CHIPS
|
4575 55mil high intensity CSP
|
|
HOUSING
|
6063 Aluminum
|
|
PCB
|
Double-side Copper plate
|
|
COOLING
|
2 heat pipes + cooling fan
|
|
Model NO.
|
NS-5S-Z3-HB3 / HB4 / HIR2
|
|
SEREIS
|
SUPER CANBUS with external driver
|
|
EFFICIENT POWER
|
55W/bulb
|
|
EFFICIENT LUMEN
|
5500lm/bulb
|
|
VOLTAGE
|
DC 9-32V
|
|
LED CHIPS
|
4575 55mil high intensity CSP
|
|
HOUSING
|
6063 Aluminum
|
|
PCB
|
Double-side Copper plate
|
|
COOLING
|
2 heat pipes + cooling fan
|
SPECIFICATIONS
DIMENSIONS
Z3 - H1
Z3 - H4
Z3 - H7
Z3 - H11
Z3 - HB3
Z3 - HB4|HIR2
Packing & Delivery
Color box with protected foam inside
