Name:
drum 180 degree rotation
concrete can be discharged front, right and left as you like
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JFMIX
-
Motor Power:
-
diesel engine 85kw
-
Charging Capacity:
-
5.3CBM
-
Reclaiming capacity:
-
3.5CBM
-
Speed of Mixing Drum:
-
20rpm
-
Water Supply Mode:
-
self priming pump
-
Working Cycle Period:
-
10-15 minutes per tank
-
Discharge Way:
-
auto discharge
-
Outline Dimension:
-
7520 mmx2240 mmx3270 mm
-
Engine brand:
-
YUCHAI, YCD4J22G
-
Engine:
-
85kw
-
Chassis:
-
articulated chassis
-
Driving & steering:
-
4-wheel drive, hydraulic articulated steering
-
Shovel:
-
600L
-
Concrete Max. Output:
-
14.0 CBM/hour
-
Axle:
-
Outsize wheel side reducer
-
Water tank:
-
2x310 L
Quick Details
-
Mixing Power:
-
85kw
-
Productivity:
-
14M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JFMIX
-
Motor Power:
-
diesel engine 85kw
-
Charging Capacity:
-
5.3CBM
-
Reclaiming capacity:
-
3.5CBM
-
Speed of Mixing Drum:
-
20rpm
-
Water Supply Mode:
-
self priming pump
-
Working Cycle Period:
-
10-15 minutes per tank
-
Discharge Way:
-
auto discharge
-
Outline Dimension:
-
7520 mmx2240 mmx3270 mm
-
Engine brand:
-
YUCHAI, YCD4J22G
-
Engine:
-
85kw
-
Chassis:
-
articulated chassis
-
Driving & steering:
-
4-wheel drive, hydraulic articulated steering
-
Shovel:
-
600L
-
Concrete Max. Output:
-
14.0 CBM/hour
-
Axle:
-
Outsize wheel side reducer
-
Water tank:
-
2x310 L
CMT3500RH

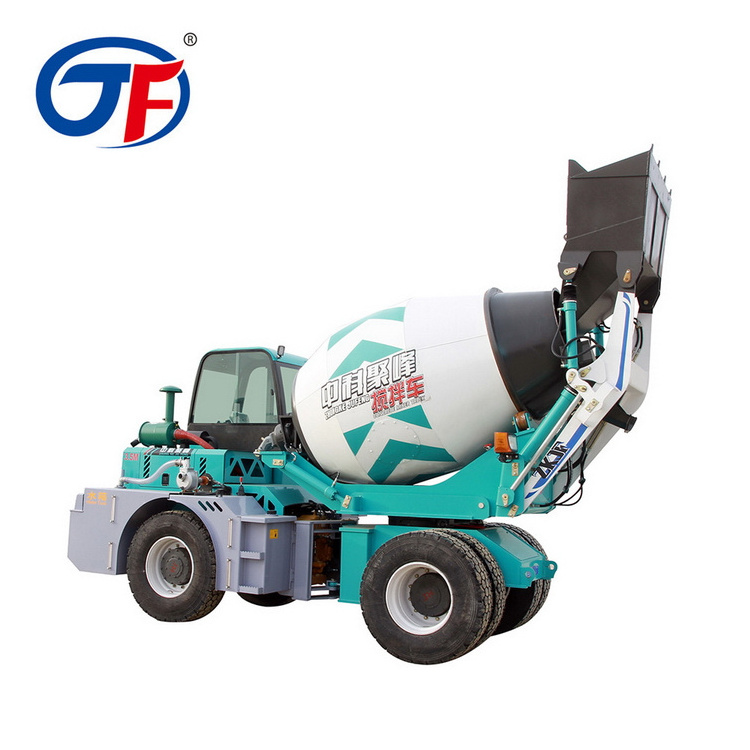

3.5 CBM Self-loading concrete mixer truck with bidirectional driving
Product Application
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
|
specificaitons of self-loading bidrectional driving concrete mixer truck
|
|
|
|
|||
|
Engine
|
YUCHAI, YCD 4J22G, Turbo Charged and Water Cooled (4-Cylinder) Optional: Dongfeng Cummins (4BTA3.9-C130, 97kw)
|
Emission standard
|
Euro II
|
|||
|
Rated power
|
85 KW (116HP) @ 2400 rpm
Max Torque: 390 N.M @2000 rpm |
Mounting position
|
Engine is mounted transversally on the rear.
|
|||
|
Mixing unit
|
Double-cone drum with double spiral mixing screw, mixing blade and convex bottom
|
Geometrical drum volume
|
5.3 M3
|
|||
|
Drum rotation speed
|
20 rpm
|
Concrete output
|
3.5 M3 / batch, 14 M3 / hour
|
|||
|
Transmission
|
Automatic, 4F+ 4R shift
|
Hydrostatic "automotive" transmission
|
4 wheel drive and articulated steering
|
|||
|
Axles
|
Outsize wheel-side reducer driving axle, with oil bath disk brakes and planetary reducers
|
Speed
|
1st: 0-4.5km/h; 0-4.5km/h 2nd: 0-8.0km/h; 0-4.5km/h 3rd: 0-12.0km/h; 0-10.0km/h 4th: 0-25.0km/h; 0-10.0km/h
|
|||
|
water system
|
Self-priming hydraulic driven water pump with quick-suction.
|
Max. capacity
|
550 L/min.
|
|||
|
Overall dimensions (L×W×H)
|
7520 mm × 2240 mm × 3270 mm (4270 mm full height)
|
Load-carrying capacity
|
8,400 Kg
|
|||
Main Features
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
Certifications
Detailed Images
Machine Parts
Main Features
Name:
ROPS and FOPS cab
Brand: JFMIX
Original:
China
Steering wheel can be rotated 180 degree, so that the truck can be drived in two contrary directions without turning.
Machine Parts
Name:
two hydraulic cylinders at the rear of the drum
Original:
Jfmix design
Two hydraulic cylinders at the rear of the drum which makes the drum be lifted 20 degree, so enable the drum to discharge the cocnrete utmostly without remains.
Main Features
Name:
new loading functions
truck shovel is not only loading for itself during mixing the concrete, but also it can act as loader to load material for other trucks.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* before delivery, we have cement, aggregate and additive agents loaded to test runing, so as enable to ensure the truck has no defectiveness in Customer's hand. Factory has their own trial ground for testing the truck performance.
* View our Factory.
After-Sales Service
* we have professional service team, we can training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
40HQ container
|
|
|
Weight
|
6480kg+800kg+220kg
|
|
|
Packaging Details
|
nude packing:
need one 40HQ container:
the whole truck:7520 mm × 2240 mm × 3270 mm
it needs to dismantle the truck into three parts to adapt the container.
1st:7420x2240x2700mm (truck frame)
2nd: dia. 1750x2750mm (drum)
3rd:1300x950x1600mm (cab)
|
|
|
Packaging
|
|
|
|
Size
|
the whole truck:7520 mm × 2240 mm × 3270 mm
|
|
|
Weight
|
7.5T
|
|
|
Packaging Details
|
nude packing without dismantling for land transportaiton.
one lorry can carry our two sets of mixer trucks, at destination unloading the truck then it can get into working conditions without any installing.
|
|
