Quick Details
-
Conductor Material:
-
Oxygen Free Copper
-
Jacket Material:
-
New PVC /New PE
-
Conductor Dia:
-
0.40mm / 0.45mm / 0.50mm or as request
-
Certification:
-
ROHS.CE.FC
-
Conductor:
-
cu cca ccs ccam
-
Pairs:
-
2P,4P,10P,25P,50P,100P
-
Key Words::
-
multi core twisted pair cable
-
Packing:
-
500M/wood drum
-
Operating temperature:
-
-20°C to +60°C
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
123
-
Place of Origin:
-
Guangdong, China
-
Conductor Material:
-
Oxygen Free Copper
-
Jacket Material:
-
New PVC /New PE
-
Conductor Dia:
-
0.40mm / 0.45mm / 0.50mm or as request
-
Certification:
-
ROHS.CE.FC
-
Conductor:
-
cu cca ccs ccam
-
Pairs:
-
2P,4P,10P,25P,50P,100P
-
Key Words::
-
multi core twisted pair cable
-
Packing:
-
500M/wood drum
-
Operating temperature:
-
-20°C to +60°C
50 multi pair twisted telephone cable / outdoor multi core communication cable / indoor outdoor underground connection cable
High speed good quality rj11 telephone connect cable
Detailed Product Description
1.Communication Cable Conductor:Cu CCA CCS
2.Can be burial derectly
3.conductor size:0.4mm-0.5mm
communication cable Transmission character:
1.Characterstic Impedance(Zo)(116MHz):100+/-15;
2.Maximum Insection Loss(IL)at 16MHz:13.1db/100m;
3.Minimum Return Loss (RL)at 16MHz:10db/100m;
4.Minimum Near End Cross Talk(NEXT)at 16MHz:23db/100m;
5.Power Sum NEXT(PSNEXT)at 16MHz:23.3db/100m
6.Equal Level Far End Cross Talk Loss(ELFEXT)at 16MHz:15db/100m;
7.Power Sum ELFEXT(PSELFEXT)at 100MHz:15db/100m;
8.Cable's RJ45 top is protected from being damaged during installation.
9.Connectors which ensure clear transmission .
10.Type: pacth cable .
Max.strain Power:600N;
Temperature Range:-40C+60c
Standard:ISO/IEC11801YD/T1019-2001YD/T838-1996

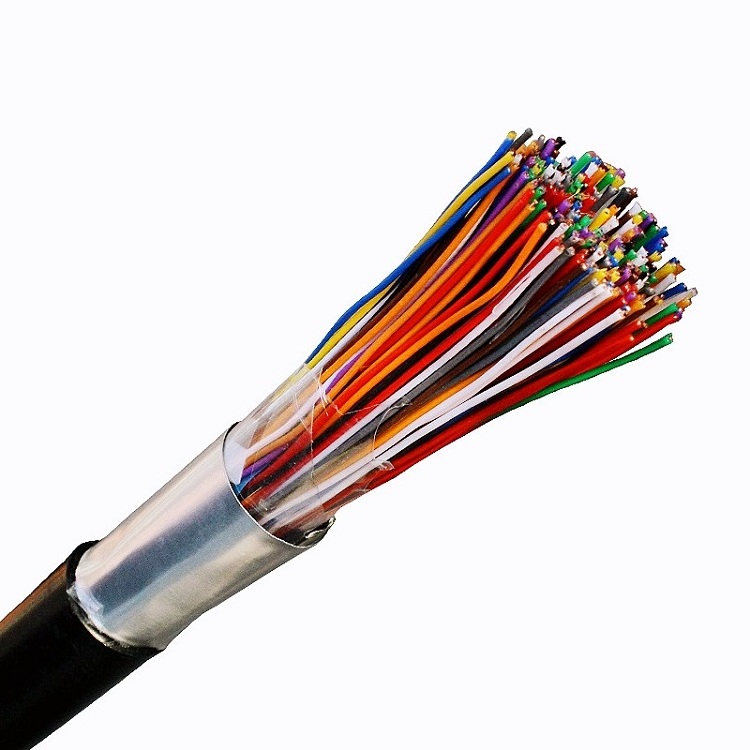

Network Communication Cable 50 Pair 100 Paire Multi Core Twisted Pair Cable
- ♥ Feature different strand lay-length, keeping good NEXT and FEXT, anti-electromagnetic disturb improvement .
- ♥ Structure bare copper, PE insulation, FR PVC/LSOH PVC jacket, twinning structure, flexible added, easily cabling.
- ♥ Telephone cable trunk transmission .
-
Description:
1.Annealed pure copper wire insulated with HDPE, each two different color insulated wires twisted
together to a pair.
2.Cable core wrapped with polyester tape to act as heat resistant barrier.
3 .Aluminum tape wrapped and then with sheath
-
Specification:
Model NO. multi core twisted pair cable Conductor Dimension 0.37mm/0.40mm/0.50mm, 24AWG Conductor Material OFC/CCC/CCA/CCS Insulation 1. Water blocking swellable tape (optional) 2. HD-PE (High density polyethylene) 3. 1.0mmHD-PE(Highdensity polyethylene) Number of
Twisted Pair
2P/5P/7P/10P/16P/20P/25P/30P/32P/
50P/100P/150P/200PShielding UTP/Polyester Tape/Al Foil Ripcord yes/no Yes with Nylon Jacket PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)/PE Separator Mylar Spirally Wrapped Color Different color is available Operating temperature -20 ° C - +75 ° C Service Life 20~25 years
Electrical Characteristic:
| Frequency (MHz) | IL-Max (dB/100m) | NEXT Min(dB/100m) | PSNEXT Min(dB/100m) | ELFEXT Min(dB/100m) |
RL-Min (dB) |
| 1 | 2.6 | 41 | 41 | 39 | 12 |
| 4 | 5.6 | 32 | 32 | 27 | 12 |
| 10 | 9.7 | 26 | 26 | 19 | 12 |
| 16 | 13.1 | 23 | 23 | 15 | 10 |
24AWG/26AWG/28AWG Cat5e Cat6 Communication Cables Multi Cores Indoor and Outdoor
