Quick Details
-
Air Consumption:
-
10~ 12m3 /min(357-430CFM)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WODETEC
-
Voltage:
-
diesel
-
Power:
-
22hp
-
Dimension(L*W*H):
-
2.55*1.05*1.25m
-
Weight:
-
1300 kg
-
Keywords:
-
shotcrete machine
-
Rated Output:
-
5m3 /h
-
Color:
-
Customised
-
Application:
-
Construction
-
Material Charging Height:
-
1.1m
-
Rotor Speed:
-
11r/min
-
operating air pressure:
-
0.2-0.4MPa
-
engine type:
-
diesel engine
-
requirement:
-
negotiable
Quick Details
-
Max. Conveying Distance:
-
35m
-
Max Aggregate Size:
-
15mm
-
Hose Inner Diameter:
-
64 mm
-
Air Consumption:
-
10~ 12m3 /min(357-430CFM)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WODETEC
-
Voltage:
-
diesel
-
Power:
-
22hp
-
Dimension(L*W*H):
-
2.55*1.05*1.25m
-
Weight:
-
1300 kg
-
Keywords:
-
shotcrete machine
-
Rated Output:
-
5m3 /h
-
Color:
-
Customised
-
Application:
-
Construction
-
Material Charging Height:
-
1.1m
-
Rotor Speed:
-
11r/min
-
operating air pressure:
-
0.2-0.4MPa
-
engine type:
-
diesel engine
-
requirement:
-
negotiable
Product Description

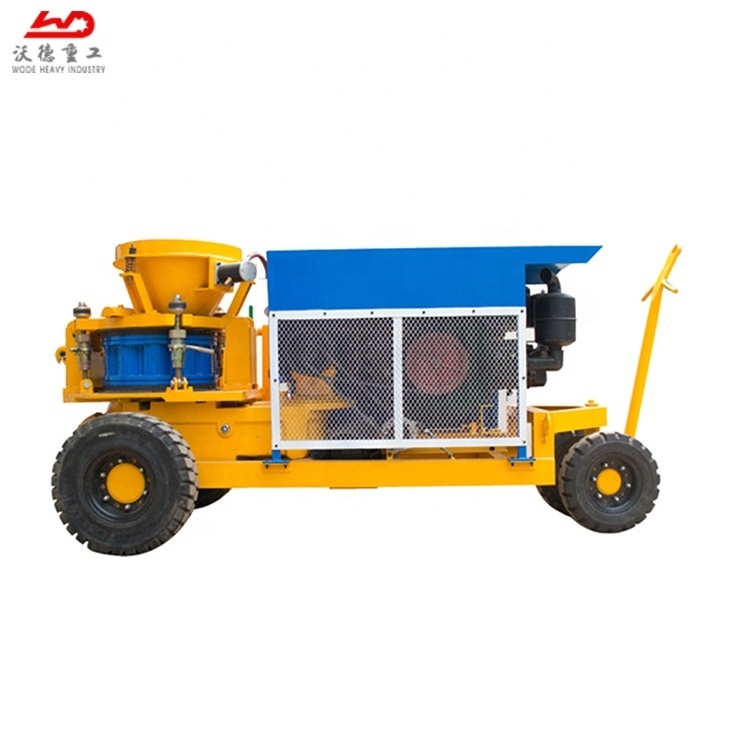

WSZ3000D diesel engine driven shotcrete machine
is a universal concrete spraying machine for the processing of wet or dry mix.
It is widely used in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc. The machine is suitable either for manual spraying or by means of a robotic arm.
WSZ3000 series wet-mix shotcrete machine
is available in following
versions:
Basic:
Electric drive can be combined with tyre chassis.
Extended (optional):
Air motor drive or diesel drive combined with Skid or Rail-wheel
Product Paramenters
|
Specification
|
WSZ3000D
|
|
Rated Output
|
3-5m3/h
|
|
Max. Horizontal Conveying Distanc
|
35m(wet)/200m(dry)
|
|
Suitable Mix Ratio(Cement/Sand)
|
≤1:4~5
|
|
Max. Aggregate Size
|
15mm
|
|
Conveying Hose Inner Diameter
|
64mm
|
|
Operating air Pressure
|
0.2-0.4MPa
|
|
Air Consumption
|
10-12m3/min
|
|
Material Charging Height
|
1.1m
|
|
Rotor Speed
|
7.5-11r/min
|
|
Main Motor Power
|
22hp 2200rpm
|
|
Diesel Engine Starting
|
Electric start
|
|
Clutch Type in Diesel Engine
|
Automatic Clutch
|
|
Air Vibrator
|
OR100, Oli
|
|
Overall Dimension
|
2.55*1.05*1.25m
|
|
Dosing Pump
|
BHA530 dosing pump
|
|
Net Weight
|
1300kg
|
Product Structure
Related Products
Packing&Shipping
1. With plastic bags, wooden cases
2. Or customised
Company Introduction
Wode Heavy Industry Co. Ltd.
, short name
Wodetec
, is a manufacturer specialized is R&D,
manufacture and sale of concrete shotcrete machine.
We have developed full series of
dry-mix shotcrete machines
and
wet-mix shotcrete machines
, output from
1.5m3/h to 9m3/h
, electric motor, diesel engine, air motor and gasoline engine are available options
for customization
.
From years of experience Wode Heavy Industry Co., Ltd. has developed its own R&D and technician teams, which supports further development and
customized service for clients
. We also produce grouting equipment, mortar pump, refractory mixer, refractory gunite machine, foaming machine, concrete pump, hose pump and a series of products.
FAQ
1.Q: Are you a manufacturer or a trade company?
A: We are a manufacturer, and we have our own foreign trade department, we market our own products.
2.Q: How long is your product warranty?
A: 12 months is available from the date of shipment.
3.Q: I plan to put our label to your product, is it possible?
A: Of course, it is ok. OEM and ODM is available for us, please send your logo, brand name and other info to us, then we’ll produce them per your requires.
4.Q: How can you ensure your product quality?
A: We have our professional testing department, after finishing the machine, we’ll test the machine for twice before shipment.
5.Q: Payment?
A: We will confirm the payment with you when quoting, like FOB, CIF or others. we accept 30% deposit, and shipping after paying the balance. T/T is the main payment, and L/C is acceptable as well.
