Quick Details
-
Place of Origin:
-
Shandong, China
-
Certification:
-
ce
-
Product name:
-
dump semi trailer
-
Tire:
-
11.00r20/12r22.5
-
Axles Number:
-
3
-
Color:
-
Customers Optional
-
Brand name:
-
CH
-
Wheel:
-
12
-
Port:
-
tianjin qingdao shanghai
-
OE NO.:
-
MXH9402ZZXP
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
50tons
-
Brand Name:
-
lH
-
Place of Origin:
-
Shandong, China
-
Certification:
-
ce
-
Product name:
-
dump semi trailer
-
Tire:
-
11.00r20/12r22.5
-
Axles Number:
-
3
-
Color:
-
Customers Optional
-
Brand name:
-
CH
-
Wheel:
-
12
-
Port:
-
tianjin qingdao shanghai
-
OE NO.:
-
MXH9402ZZXP

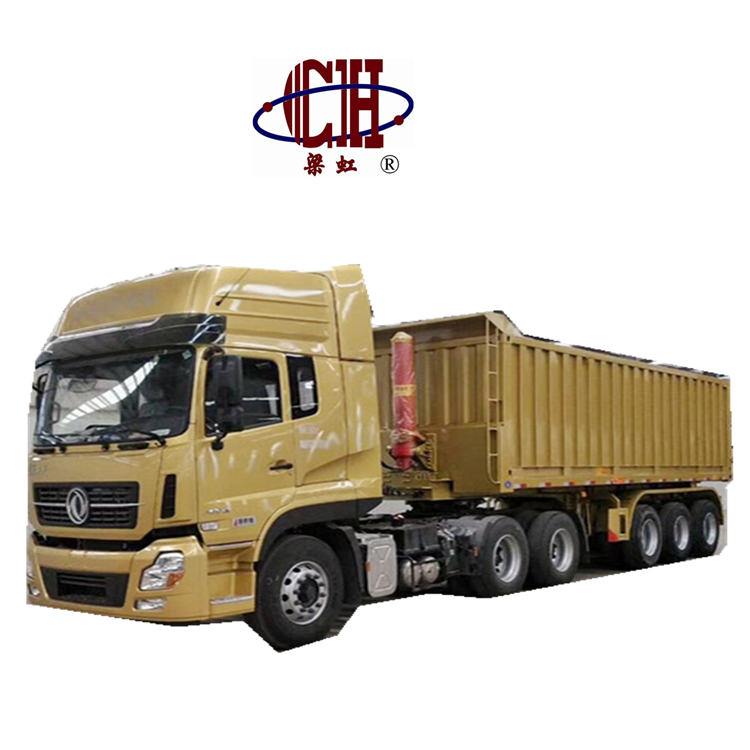

Various hydraulic dump trucks transport semi trailer
Axle:
Famous Brand Axle Support
Trailer Durable and High Truck Attendance Rate
Chassis:
China Best Q345B-T700 support Stronger Trailer Skeleton
Tire:
Good Quality Tire support Trailer Running Safety&Smoothly
King Pin:
JOST Detachable Type support Durable and Fast&Easy Replace
Emergency Valve:
Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use
|
Overall Dimension |
13000*2500*1800 optional |
|
Curb Weight |
7.5T |
|
Loading Capacity |
40T, 50T, 60T, 70T, 80T, 90T, 100T |
|
Main Beam Spec. |
T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm |
|
Side Frame |
Channel Steel |
|
Cross Brace |
Channel Steel/Bending Steel |
|
Suspension |
Mechanical Suspension, Air Suspension or Optional |
|
Leaf Spring |
10-layers leaf spring(90mm*13mm*10pcs) |
|
Axle Spec. |
13T/16T/20T BPW or FUWA brand |
|
King Pin |
2"(50mm)or3.5"(90mm) JOST Brand |
|
Tire |
11.00R20/12.00R20/ 12R22.5 |
|
Brake Chamber |
6sets |
|
Landing Gear |
28T*2, JOST brand |
|
Accessories |
1 Standard Tool Box |
|
Electric System |
24V, One Set 6-core Standard Cable |
|
Light |
Tail lamp with turn signal,brake light & reflector,side lamp etc |
|
Painting |
Sand balsting,prime coating, surface painting,color opitional, wax polishing |
|
Ladder |
Spring or Hydraulic |
|
Packing |
FCL Container, Ro-ro Shipment, Framework or Optional |
