Glass Plastic Bottle batch expiry date coding machine Auto Conveyor 20w 30w 50w Fiber Laser

Glass Plastic Bottle batch expiry date coding machine Auto Conveyor 20w 30w 50w Fiber Laser

FOB Reference Price: Get Latest Price

≥1 Sets

US $1780

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: Air Cooling

Place of Origin:: Hubei, China

Brand Name:: Amark

Weight (KG):: 55 KG

Product name:: fiber marking machine

Laser source:: Raycus /Max

Min line width:: 0.01mm

Marking speed:: up to 7000mm/s

Input power:: 110V/220V 50-60HZ

Laser lifetime:: up to 100,000 hours

Marking area:: 110*110/175*175/200*200mm

Standard wavelength:: 1064nm

cutting speed:: up to20mm/s

Marking materials:: metal and no-metal

Quick Details

Working Accuracy:: 0.015MM

Graphic Format Supported:: PLT, BMP, Dwg, DXP

Laser Type:: Fiber Laser

Cooling Mode:: Air Cooling

Place of Origin:: Hubei, China

Brand Name:: Amark

Weight (KG):: 55 KG

Product name:: fiber marking machine

Laser source:: Raycus /Max

Min line width:: 0.01mm

Marking speed:: up to 7000mm/s

Input power:: 110V/220V 50-60HZ

Laser lifetime:: up to 100,000 hours

Marking area:: 110*110/175*175/200*200mm

Standard wavelength:: 1064nm

cutting speed:: up to20mm/s

Marking materials:: metal and no-metal

Product Description

Amark PL-200 Laser Marking Machine for Metal and Nonmetal is the high-tech product which collection of laser, computer, automatic control,precision machinery technology together.

This marking machine adopts high performance digital galvanometer scanning system with high speed and high precision, can work for a long time. .

Average power	20W/30W/50W/100W
Wave length	1064nm
Maximum speed	7000mm/s
Modulation frequency range	20kHz~80kHz
Red light localization	yes
Resolution ratio	0.001mm

Amark PL-200 Laser Marking Machine for Metal and Nonmetal with small size, stable and reliable work, free maintenance, no need water cooling system, low energy consumption,

g ood marking quality and laser output power and frequency is controlled by computer, with special marking software, can conduct real time control of the laser output power and frequency.

Marking content can be text, graphics,

images etc., and can directly input and edit in proprietary software, also can import the DXF, AI vector text, etc.

Industry Application

Applications

We offer China Laser Marking Machine for Metal and Nonmetal with following applications:

1.Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware,
tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others

2.Hall marking on Gold

3.Automotive & Engineering Industries

4.Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments

5.Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making

Detailed Images

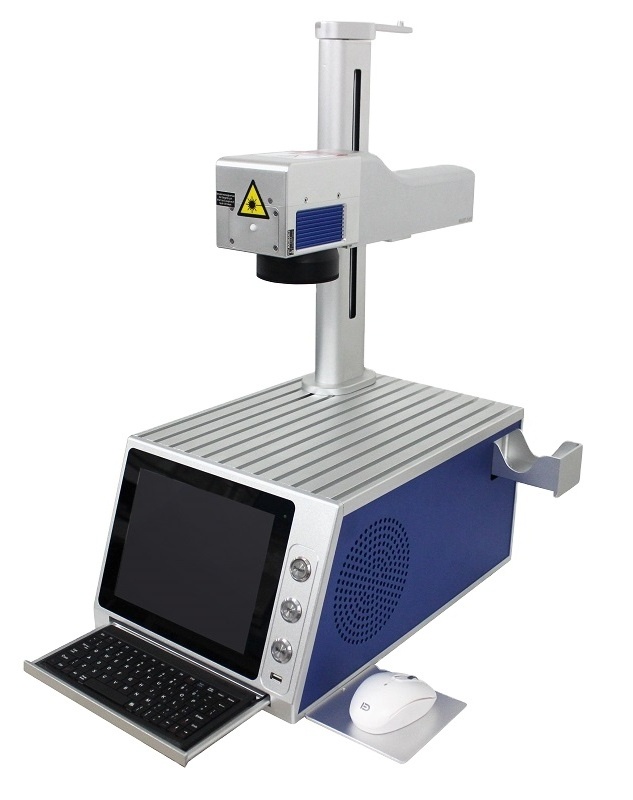

Amark PL-200 Laser Marking Machine for Metal and Nonmetal

What is the fiber laser marking machine features ?

1.Satbility is high

we use the domestic first-line brand accessories, product quality is stable,stability 60% higher than other
brand lasers,life time 30%-80% longer than other brand lasers;

2.Low cost:high electro-optical conversion rate is more than 90%,less power consumption, lower than 500W;

3.High marking efficiency:light spot quality is good, high single pulse energy;

4.Excellent equipment quality control:wiring is regular,professional tuning of parameters;

5.EZCAD from BJJCZ, price 3 times higher than copied marking card;

6.Secondary development: can provide hardware, software level of secondary development and customization.

Main structure of the machine

What are the benefits of Fiber lasers?

Fiber laser marking machines are designed to meet the needs of manufacturers who mark codes and other information on robust, high-density materials such as metals and plastics.

* Applies high-contrast marks at ultra-fast speeds on hard plastics, metals, and other industrial products.
* Virtually no maintenance and a source life expectancy of up to 100,000 hours delivers high performance and long-lasting reliability
* Line speed of 900m/min meet the demands of high-speed packaging operations
* 498mm wide marking window provides more time to print, increasing product throughput and maximizing productivity

Fiber lasers benefit from more power and speed, which provides more available mark time to achieve the best readable code on a range of materials such as:
* Aluminum cans
* Cable and wire
* White polypropylene extrusion
* Blister pack materials
* Aseptic packaging

Fiber laser marking is an ideal solution for many parts-marking, pharmaceutical and cosmetics manufacturers. To meet the needs of food, beverage , the range of fiber lasers have been designed to ensure laser marks are clearly and
accurately positioned, offering code precision that does not adversely impact product aesthetics.

FAQ

PL-300

A fiber laser engraver uses a process of cutting through paint on a surface to make permanent marks which protects codes from being tampered with by unauthorized channels.
