Quick Details
-
Model Number:
-
SD48 SD56
-
Frequency:
-
60Hz
-
Product Name:
-
General Purpose Motor
-
Protection class:
-
IP23
-
Speed:
-
1800rpm 3600RPM
-
Structure:
-
Rolled steel shell
-
Standard:
-
NEMA International Standard
-
Frame:
-
48, 56
Quick Details
-
AC Voltage:
-
115/208-230
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BIOTE
-
Model Number:
-
SD48 SD56
-
Frequency:
-
60Hz
-
Product Name:
-
General Purpose Motor
-
Protection class:
-
IP23
-
Speed:
-
1800rpm 3600RPM
-
Structure:
-
Rolled steel shell
-
Standard:
-
NEMA International Standard
-
Frame:
-
48, 56
General purpose motor type
Confirm which type you want and application. contact us!!!
Resistance start motor
Drippoof Single-Phase Capacitor start Motor
Drippoof Single-Phase Capacitor Run Motor
Totally Enclosed Single-Phase Capacitor Start Motor
Totally Enclosed Single-Phase Capacitor Run Motor
Single-Phase, Dripproof, General Purpose, Capacitor Start & Run Motor
Single-Phase, Totally Enclosed, General Purpose, Capacitor Start & Run Motor
Single phase fractional Horsepower Premium Efficiency Motor
Three phase fractional Horsepower Premium Efficiency Motor
NEMA Premium Efficiency motors exceed the minimum efficiency legally required by the Energy Independence and Security Act of 2007 (EISA), and the program covers motors with the following characteristics:
Rated capacity from 1 hp to 500 hp
Three-phase, low-voltage power supply
NEMA Design A and B
General, special and definite purpose motors
Although motors below 1 hp are not covered by the standard, it is possible to achieve similar efficiency levels with electronically-commutated motors (ECM), which are better suited for fractional horsepower applications. ECMs also feature built-in speed control, which means they do not require a variable frequency drive (VFD) to operate below rated speed.
Nema general Motor with CSA and UL certification,Motors range from 1/3-3hp,2,4,6P with rolled steel. Mainly used in air compressor,pump and so on. Well received by customers in North America market.
General pu
rpose single
phase ODP capacitor start and run
General purpose AC motors, also known as induction motors, are electric motors that convert AC power into torque (where torque is the measure of a rotational or twisting force) to drive mechanical loads. They are suitable for powering pumps, blowers, conveyors, and machine tools. Split-phase NEMA frame general purpose AC motors are lower efficiency and have a lower starting torque for a softer startup compared to other AC motors. Capacitor-start NEMA frame general purpose AC motors use a capacitor to provide additional power during startup for higher torque. Capacitor-start/run NEMA frame general purpose AC motors are single-phase motors that use a capacitor to provide additional power during startup for higher torque and a separate capacitor to run with higher operating efficiency. Three phase NEMA frame general purpose AC motors and three phase IEC metric motors operate on efficient three phase power with high torque and don’t require start or run capacitors.
Features
1. Capacitor start design for high starting torque
2. Durable rolled steel, double shielded ball bearing
3. Thermal protector is available as demand
4. Open Drip proof is available as demand
5. NEMA service factor
6. General purpose use on pumps, conveyors, blowers, and other machinery requiring high starting torque
7. C flange is inter chhange able as demands
|
Model
|
HP
|
RPM
|
Frame
|
VOLTAGE
|
S.F
|
Full Load Amps@230V
|
|
BT-B1
|
1/3
|
3450
|
56
|
115/208-230
|
1.35
|
2.3
|
|
BT-B2
|
1/3
|
1725
|
56
|
115/208-230
|
1.35
|
2.2
|
|
BT-B3
|
1/2
|
3450
|
56
|
115/208-230
|
1.25
|
3.1
|
|
BT-B4
|
1/2
|
1725
|
56
|
115/208-230
|
1.35
|
2.9
|
|
BT-B5
|
3/4
|
3450
|
56
|
115/208-230
|
1.25
|
4.1
|
|
BT-B6
|
3/4
|
1725
|
56
|
115/208-230
|
1.25
|
4.2
|
|
BT-B7
|
1
|
3450
|
56
|
115/208-230
|
1.25
|
5.6
|
|
BT-88
|
1
|
1725
|
56
|
115/208-230
|
1.15
|
5.8
|
|
BT-B9
|
1.5
|
3450
|
56
|
115/208-230
|
1.15
|
7.1
|
|
BT-B10
|
1.5
|
1725
|
56
|
115/208-230
|
1.15
|
7.6
|
|
BT-B11
|
1.5
|
1725
|
145T
|
115/208-230
|
1.15
|
7.6
|
|
BT-B12
|
2
|
3450
|
145T
|
115/208-230
|
1.15
|
9.1
|
|
BT-B13
|
2
|
3450
|
56
|
115/208-230
|
1.15
|
9.1
|
|
BT-B14
|
2
|
1725
|
56
|
115/208-230
|
1.15
|
9.3
|
|
BT-B15
|
2
|
1725
|
145T
|
115/208-230
|
1.15
|
9.3
|
|
BT-B16
|
3
|
3450
|
145T
|
115/208-230
|
1.15
|
13.0
|
|
BT-B17
|
3
|
3450
|
56
|
115/208-230
|
1.15
|
13.0
|
|
BT-B18
|
3
|
3450
|
145T
|
115/208-230
|
1.15
|
13.0
|
|
BT-B19
|
3
|
1725
|
182T
|
208-230
|
1.15
|
13.5
|
|
BT-B20
|
5
|
3500
|
184T
|
208-230
|
1.15
|
20
|
|
BT-B21
|
5
|
1750
|
213T
|
208-230
|
1.15
|
21
|
|
BT-B22
|
7.5
|
1750
|
213T
|
208-230
|
1.15
|
32
|
|
BT-B23
|
10
|
1750
|
215T
|
208-230
|
1.15
|
40
|

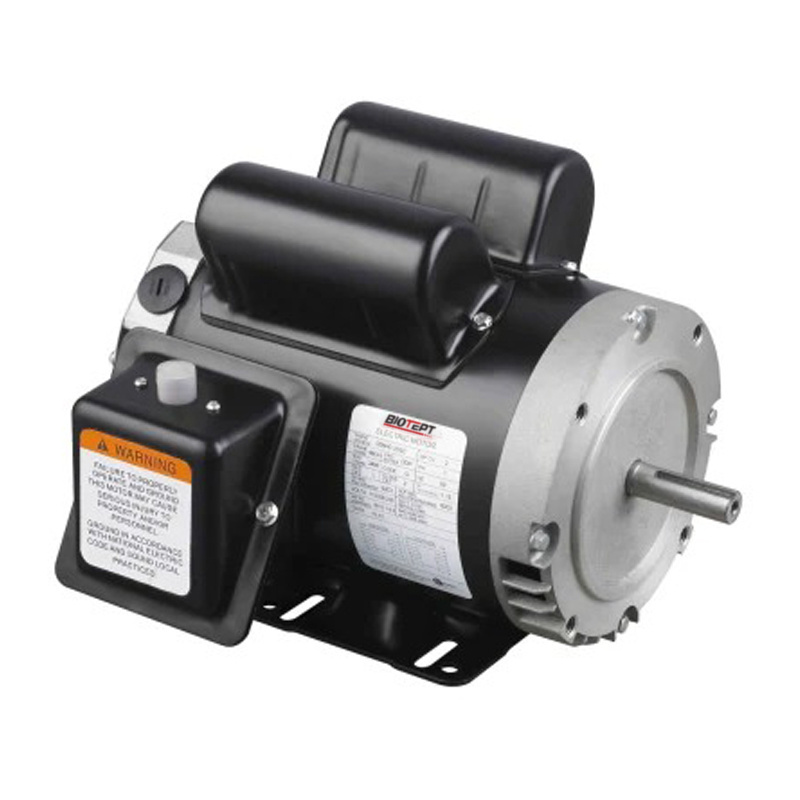

General purpose single phase TEFC capacitor stanrt and run
Motors have NEMA frame construction with standard dimensions for drop-in replacement of motors from multiple suppliers with no modifications required to existing installations. Models may have two capacitor covers on the top or side of the motor shell for the start and run capacitors and may also have a conduit box that houses the electrical connections between the external power cables and the motor's internal electrical wiring. The motor's frame size is shown on the motor nameplate under “Frame” or “FR”.
Features
1. Steel frame, ball bearing construction
2. Totally Enclosed Fan cooled
3. Reversible rotation
4. Capacitor start design for high starting torque
5. Thermal protector is available as demand
6. C flange is inter chhange able as demands
|
Model
|
HP
|
RPM
|
FRAME
|
VOLTAGE
|
FULLLOAD AMPS @230V
|
S.F
|
|
BT-D1
|
1/3
|
1725
|
56/56C
|
115/208-230
|
3.3
|
1.15
|
|
BT-D2
|
1/3
|
3450
|
56/56C
|
115/208-230
|
3.1
|
1.15
|
|
BT-D3
|
1/2
|
1725
|
56/56C
|
115/208-230
|
4.4
|
1.15
|
|
BT-D4
|
1/2
|
3450
|
56/56C
|
115/208-230
|
4.0
|
1.15
|
|
BT-D5
|
3/4
|
1725
|
56/56C
|
115/208-230
|
5.5
|
1.15
|
|
BT-D6
|
3/4
|
3450
|
56/56C
|
115/208-230
|
5.3
|
1.15
|
|
BT-D7
|
1
|
1725
|
56/56C
|
115/208-230
|
6.0
|
1.15
|
|
BT-D8
|
1
|
3450
|
56/56C
|
115/208-230
|
5.6
|
1.15
|
|
BT-D9
|
1.5
|
1725
|
56/56C
|
115/208-230
|
7.6
|
1.15
|
|
BT-D10
|
1.5
|
3450
|
56/56C
|
115/208-230
|
7.1
|
1.15
|
|
BT-D11
|
1.5
|
3450
|
56
|
115/208-230
|
7.1
|
1.00
|
|
BT-D12
|
1.5
|
:3450
|
143T
|
115/208-230
|
7.1
|
1.00
|
|
BT-D13
|
1.5
|
1725
|
56
|
115/208-230
|
7.6
|
1.15
|
|
BT-D14
|
1.5
|
1725
|
145T
|
115/208-230
|
7.6
|
1.00
|
|
BT-D15
|
2
|
3450
|
56
|
115/208-230
|
9.0
|
1.15
|
|
BT-D16
|
2
|
3450
|
145T
|
115/208-230
|
9.0
|
1.15
|
|
BT-D17
|
2
|
1725
|
56
|
115/208-230
|
9.2
|
1.15
|
|
BT-D18
|
2
|
1725
|
145T
|
208-230
|
9.2
|
1.15
|
|
BT-D19
|
3
|
3450
|
56H
|
115/208-230
|
13.0
|
1.15
|
|
BT-D20
|
3
|
3450
|
145T
|
208-230
|
13.0
|
1.15
|
|
BT-D21
|
3
|
1725
|
184T
|
208-230
|
13.5
|
1.15
|
|
BT-D22
|
5
|
3450
|
184T
|
208-230
|
20.0
|
1.15
|
|
BT-D23
|
5
|
1725
|
184T
|
208-230
|
21
|
1.15
|
|
BT-D24
|
7.5
|
3450
|
213T
|
208-230
|
32
|
1.00
|
|
BT-D25
|
7.5
|
1725
|
215T
|
208-230
|
32
|
1.15
|
|
BT-D26
|
10
|
3800
|
215T
|
208-230
|
141.5
|
1.15
|
FEATURES AT A GLANCE
Capacitor-start & run NEMA frame general purpose AC motors are single-phase and use a capacitor to provide additional power during startup for higher torque and a separate capacitor to run with higher operating efficiency compared to standard capacitor-start motors
ODP enclosure protects against falling drops of liquid entering the motor from angles of up to 15 degrees from the vertical. A shaft-mounted fan pulls air directly from the environment through open vents in the motor's body, circulating it around the inside of the motor and over the stator and rotor windings for cooling.
TEFC enclosures are very common in industrial environments, They are more expensive than ODP enclosures but provide a much higher level of protection, and when properly maintained, ensure that the motor remains in peak condition for a long time.
Application
They have a main winding and auxiliary winding with both a start capacitor and run capacitor for use in medium-to-high-torque requirements in air conditioner, auger drive, compressor, conveyor, fan, and pump applications.
