Quick Details
-
Temperature Type:
-
Single
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Keqirui
-
Model Number:
-
1011020
-
Product name:
-
1011020
-
Dimension:
-
Customized
-
RTD:
-
PT100/K Type /NI120
-
Adhesive interface:
-
5/16,5/8,3/4
-
Gluing method:
-
Spray strip, spray point
-
Aperture:
-
0.25-0.60 MM
-
Valve nozzle selection:
-
Adjustable
-
Package:
-
Blister box + carton packaging
-
MOQ:
-
10 Piece/Pieces
-
Rated Power:
-
200w
Quick Details
-
Application:
-
Not Rated
-
Voltage:
-
220V/50HZ
-
Glue stick Diameter:
-
1/2in
-
Temperature Type:
-
Single
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Keqirui
-
Model Number:
-
1011020
-
Product name:
-
1011020
-
Dimension:
-
Customized
-
RTD:
-
PT100/K Type /NI120
-
Adhesive interface:
-
5/16,5/8,3/4
-
Gluing method:
-
Spray strip, spray point
-
Aperture:
-
0.25-0.60 MM
-
Valve nozzle selection:
-
Adjustable
-
Package:
-
Blister box + carton packaging
-
MOQ:
-
10 Piece/Pieces
-
Rated Power:
-
200w
Scope of application:
It is commonly used in the carton sealing and filtration industry to spray the product on the product, the glue is fast, and the whole process is controlled by automatic glue gun.
1. Packaging industry: honeycomb paperboard products, boxes, beverage tubes, etc.; packaging materials: adhesive tapes, tapes, etc.;
2. Filter industry: Paste without separator air filter.
3, the most commonly used is the carton packaging, intermittently spray 2 strips of glue before the carton is closed, covering the paper with a strong pressure for a few minutes.
The thimble and the rubber outlet of the hot melt adhesive dispensing gun of Kozirui are mechanically sealed, and the contact part is made of high-precision grinding and is sensitive, completely eliminating the leakage phenomenon of the glue. And to ensure the use of high strength and long life.
Equipment features:
1. Automatic glue gun can be equipped with nozzles such as 0.2mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm, 0.6mm, 0.7mm, 1.0mm and other various specifications according to production needs;
2. When disassembling the rubber valve body or replacing the nozzle, it is necessary to disassemble the rubber gun in the case of preheating;
3. It is recommended to install a pressure regulating valve on the air inlet of the solenoid valve to adjust the gas to ensure the gas pressure of the glue gun is stable to ensure uniformity of the glue;
4. The double-nozzle glue gun only needs to be fixed at the station during the installation process. The electric eye of the product is tested to give a signal to the solenoid valve to control the glue gun.
|

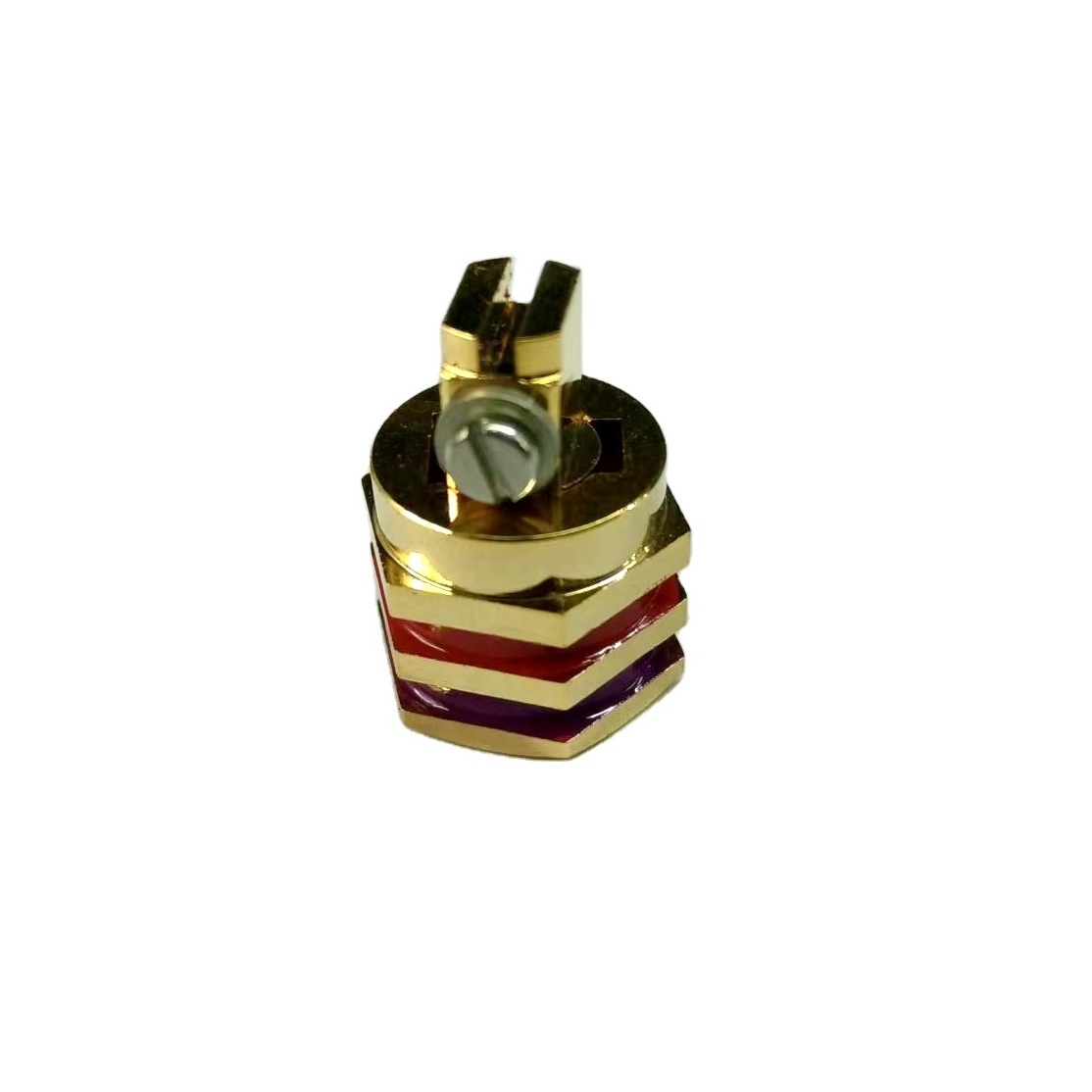

Product Name |
Single hole glue gun nozzle
|
|
| Application | gule gun | |
| Other optional nozzle |
90° single/double hole glue gun nozzle/Down double hole nozzle |
|
|
Remarks:We professional produce various hot melt gule machine/hot glue gun and other accessories,we provide OEM/ODM service For more information please feel free to contact with us.
|
||
|
Model |
Description |
Aperture(mm) |
|
1011010 |
.010 Dia. x .075L |
0.25 |
|
1011012 |
.012 Dia. x .075L |
0.30 |
|
1011014 |
.014 Dia. x .075L |
0.35 |
|
1011016 |
.016 Dia. x .075L |
0.40 |
|
1011018 |
.018 Dia. x .075L |
0.45 |
|
1011020 |
.020 Dia. x .075L |
0.50 |
|
1015824 |
.024 Dia. ,15° x .075L |
0.55 |
|
1015828 |
.028 Dia. ,15° x .150L |
0.60 |
Other Products We Made:
Glue Gun using instructions
|
Components |
Note |
Valve nozzle selection |
|
The complete set includes a valve,socket screw, O-ring, and replacement with these accessories |
The melter should be turned off during replacement installation and gloves should be worn in accordance with safety regulations to avoid burns. |
single hole down straight nozzle, down double or triple hole angle nozzle, 45° side single hole double hole nozzle, 90° side single hole double hole nozzle, etc. |
