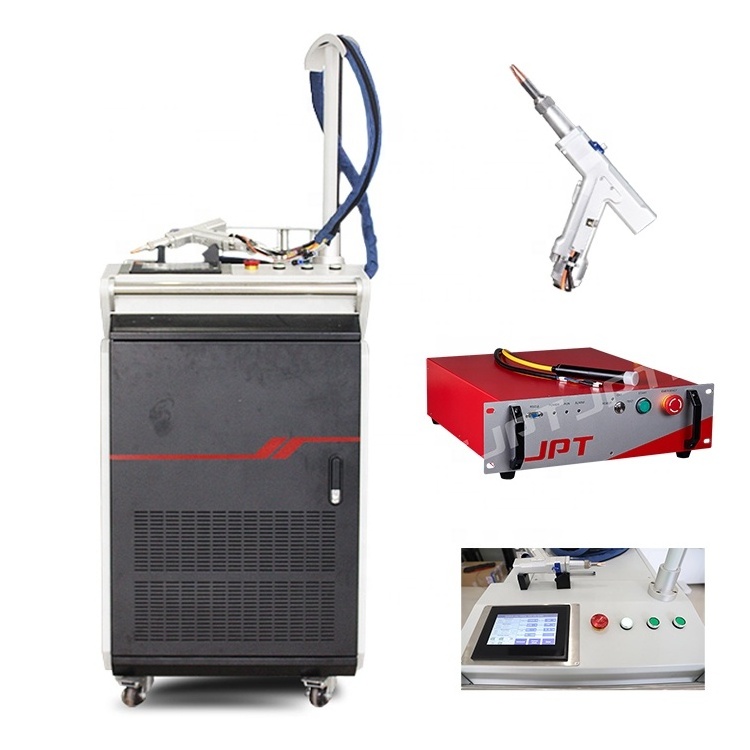

The handheld laser welding machine can perform long-distance laser welding of large workpieces. The heat affected area is small
during welding, and it will not cause deformation, blackening, and traces on the back of the workpiece. The connection depth is large, the welding is firm, and the melting is sufficient. There is no depression in the joint between the raised part of the
molten material in the bath and the substrate! The welding speed is fast, 2-10 times faster than traditional welding, and one machine can save at least 2 welders a year.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
JINAN,CHINA
-
Brand Name:
-
ZCLASER Welding Machine
-
Single Pulse Energy:
-
Not pulse but continuous laser welding machine
-
Pulse Width:
-
Not pulse but continuous laser welding machine
-
Wavelength:
-
1070nm
-
Focal Spot Diameter:
-
Not pulse but continuous laser welding machine
-
Dimensions:
-
120cm*60cm*163cm
-
Weight (KG):
-
150 KG
-
Core Components:
-
Laser source
-
Product name:
-
Handheld laser welding machine
-
Laser power:
-
1000W/1500W/2000W
-
Laser wavelength:
-
1070nm
-
Fiber length:
-
Standard 8-10M supports up to 15M
-
Way of working:
-
Modulation
-
Speed range of weld:
-
0-120mm/s
-
Cooling water machine:
-
S&A
-
Working environment humidity range:
-
<70% without condensation
-
Recommended welding:
-
0.5-5mm
-
Welding gap require:
-
ments: ≤0.5mm
Quick Details
-
Max. Output Power:
-
2000W
-
Use:
-
Metal stainless steel welding
-
Laser Source Brand:
-
JPT
-
Place of Origin:
-
JINAN,CHINA
-
Brand Name:
-
ZCLASER Welding Machine
-
Single Pulse Energy:
-
Not pulse but continuous laser welding machine
-
Pulse Width:
-
Not pulse but continuous laser welding machine
-
Wavelength:
-
1070nm
-
Focal Spot Diameter:
-
Not pulse but continuous laser welding machine
-
Dimensions:
-
120cm*60cm*163cm
-
Weight (KG):
-
150 KG
-
Core Components:
-
Laser source
-
Product name:
-
Handheld laser welding machine
-
Laser power:
-
1000W/1500W/2000W
-
Laser wavelength:
-
1070nm
-
Fiber length:
-
Standard 8-10M supports up to 15M
-
Way of working:
-
Modulation
-
Speed range of weld:
-
0-120mm/s
-
Cooling water machine:
-
S&A
-
Working environment humidity range:
-
<70% without condensation
-
Recommended welding:
-
0.5-5mm
-
Welding gap require:
-
ments: ≤0.5mm
1000W 1500W 2000W customized laser welder handheld metal welding machine for steel welding
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Max Output Power
|
2000W
|
|
Usage
|
Metal stainless steel welding
|
|
Place of Origin
|
Shandong,China
|
|
Brand Name
|
Zhancheng
|
|
Wavelength
|
1070nm
|
|
Laser Source Brand
|
JPT
|
|
Control System Brand
|
QILIN
|
|
Key Selling Points
|
High Rigidity
|
|
Applicable Industries
|
Building Material Shops, Food & Beverage Factory, Metal furniture, Container sealing
|
|
After Warranty Service
|
Video technical support, Online support
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
New Product 2021
|
|
Core Components
|
Laser source, QILIN system, S&A water cooler
|
|
Laser power
|
1000W/1500W/2000W
|
|
Laser wavelength
|
1070nm
|
|
Fiber length
|
Standard 8-10M supports up to 15M
|
|
Way of working
|
Modulation
|
|
Speed range of welding machine
|
0-120mm/s
|
|
Cooling water machine
|
S&A
|
|
Working environment humidity range
|
<70% without condensation
|
|
Recommended welding thickness
|
0.5-5mm
|
|
Welding gap requirements
|
≤0.5mm
|
Jinan Zhancheng Automation Equipment Co., Ltd. Is a company specializing in researching, developing, producing and selling of laser marking equipment. Our products with various standards and non-standard are used in fields including metal and non-metal industry. They are widely used in automotive parts, instrumentation, measuring tools, electronic communications, aerospace, petrochemical industry, military products, medicine and food. And the company has established a long-term and stable cooperative relationship with many large and well-known companies at home and abroad to provide customers.
