Quick Details
-
Brand:
-
gongfeng
-
Packaging:
-

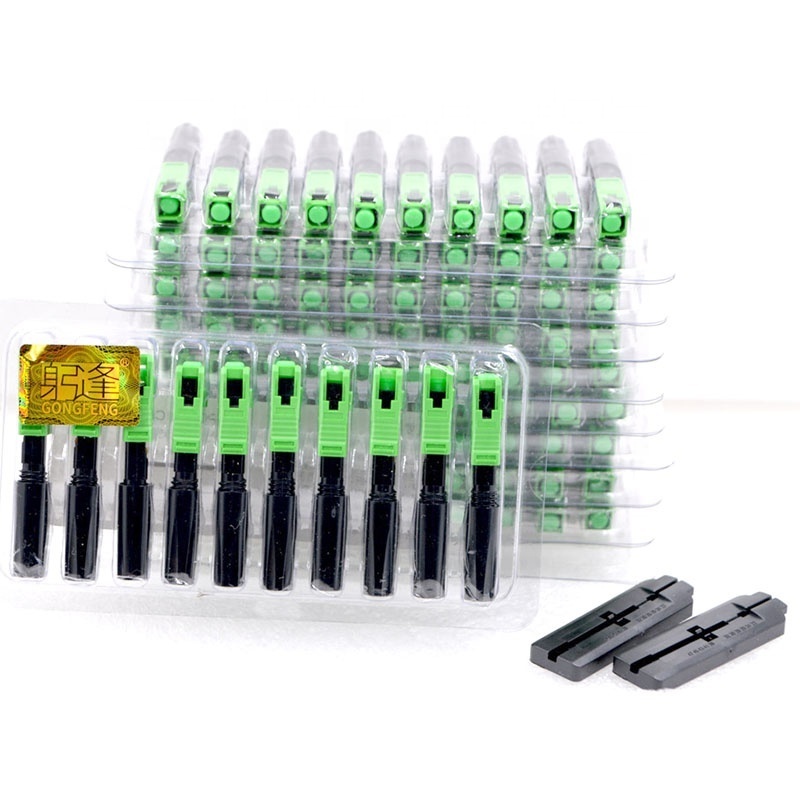

100pcs/Box
-
Product name:
-
Fiber optic fast connector
-
Length:
-
55MM
-
Color:
-
APC Green/UPC Blue
-
Insertion loss:
-
Max.≤0.5dB, Typical≤0.3dB
-
Return loss:
-
UPC≥50dB,APC≥55dB
-
Tensile strength:
-
50N
-
Assembly times::
-
10 Times
-
Operating temperature:
-
-40~+85℃
-
Fiber cable type:
-
3.1*2.0mm butterfly optical cable
-
Connector Type:
-
SC APC UPC PC
Quick Details
-
Type:
-
fiber optic connector
-
Model Number:
-
Sigle Mode
-
Place of Origin:
-
Shanghai, China
-
Brand:
-
gongfeng
-
Packaging:
-
100pcs/Box
-
Product name:
-
Fiber optic fast connector
-
Length:
-
55MM
-
Color:
-
APC Green/UPC Blue
-
Insertion loss:
-
Max.≤0.5dB, Typical≤0.3dB
-
Return loss:
-
UPC≥50dB,APC≥55dB
-
Tensile strength:
-
50N
-
Assembly times::
-
10 Times
-
Operating temperature:
-
-40~+85℃
-
Fiber cable type:
-
3.1*2.0mm butterfly optical cable
-
Connector Type:
-
SC APC UPC PC
Product Description
Kind reminder
UPC and APC connectors have different prices!
The current displayed price is UPC price! Customers who need APC connectors, please contact us to update the price after placing the order!
Product length: 55mm
The average insertion loss is ≦ 0.3dB
Return loss> =
50db
Product manual
Product manual
Product name: Embedded SC / APC fiber optic quick connector
Product specifications: 55mmx8.9mmx7mm
Scope of application: optical fiber distribution frame, optical fiber network equipment, fiber to the home, cable TV network, etc.
Scope of application: optical fiber distribution frame, optical fiber network equipment, fiber to the home, cable TV network, etc.
Steps:
1. Prefabricated fiber
2. Thread the tail sleeve into the leather cable
3. Insert the prefabricated
leather thread into the pre-buried optical fiber, and continue to gently push the leather thread to bend it.
leather thread into the pre-buried optical fiber, and continue to gently push the leather thread to bend it.
4. Push the fixing
ring forward, lock the optical fiber, and close the tail cover.
ring forward, lock the optical fiber, and close the tail cover.
5. Tighten the tail cover and put on the SC shell. Complete the
connection.
connection.
Reopen method:
1. Withstand the dust cap and withdraw the casing.
2. Push the retaining ring back to loosen
the fiber.
the fiber.
3. Unscrew the tail sleeve and pull out the leather thread. Complete the opening work.
Specification
|
item
|
value
|
|
Model Number
|
H-01
|
|
Type
|
Fiber optic fast connector （Open type）
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
Renew or OEM
|
|
Use
|
FTTH/FTTX
|
|
Warranty Time
|
1 year
|
|
Product name
|
Fiber optic fast connector
|
|
Length
|
55MM (60MM)
|
|
Color
|
APC Green/UPC Blue
|
|
Insertion loss
|
Max.≤0.5dB, Typical≤0.3dB
|
|
Return loss
|
UPC≥50dB, APC≥55dB
|
|
Tensile strength
|
50N
|
|
Assembly times:
|
10 Times
|
|
Operating temperature
|
-40~+85℃
|
|
Ferrule
|
CCTC ceramic ferrules
|
|
Fiber cable type
|
3.1*2.0mm butterfly optical cable
|
