- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v/3phase/50hz, 220v/380v/3phase/50hz
-
Disc Dia.:
-
Customers Request
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UM
-
Model Number:
-
UM01
-
Warranty:
-
24 months
-
Product name:
-
Car Spray Booth
-
Color:
-
Red/blue/white/orange or customized
-
Heating System:
-
Electric Heating/ Riello diesel burner or natural gas burner
-
Lighting System:
-
LED Lamp
-
Basement:
-
Galvanized Non-slip Floor
-
Wall Panel:
-
50/75mm EPS / Rock Wool
-
Environmental certificate:
-
CE /ISO Certification
-
Filter system::
-
Environmental 3 Filter Process
-
Application:
-
Car Care Equipment
-
MOQ:
-
1 Set
Quick Details
-
Power:
-
11KW
-
External Size:
-
7000*5160*3250mm
-
Internal Size:
-
6900*3900*2600mm
-
Voltage:
-
380v/3phase/50hz, 220v/380v/3phase/50hz
-
Disc Dia.:
-
Customers Request
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UM
-
Model Number:
-
UM01
-
Warranty:
-
24 months
-
Product name:
-
Car Spray Booth
-
Color:
-
Red/blue/white/orange or customized
-
Heating System:
-
Electric Heating/ Riello diesel burner or natural gas burner
-
Lighting System:
-
LED Lamp
-
Basement:
-
Galvanized Non-slip Floor
-
Wall Panel:
-
50/75mm EPS / Rock Wool
-
Environmental certificate:
-
CE /ISO Certification
-
Filter system::
-
Environmental 3 Filter Process
-
Application:
-
Car Care Equipment
-
MOQ:
-
1 Set
Product Description

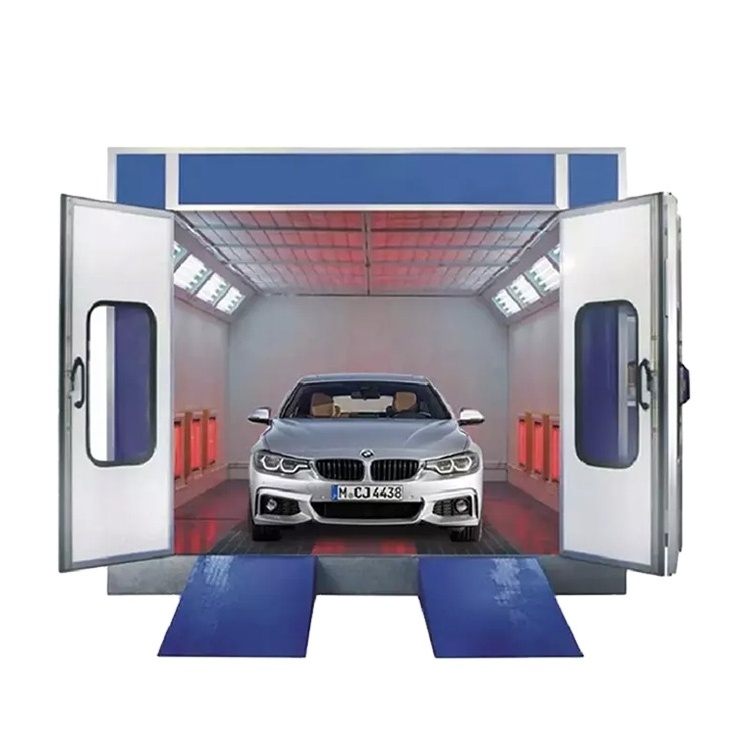

Car spray booth/Automotive paint both / car baking oven/spray paint booth
Specification
|
UM-03
|
|
|
|
|
||||
|
Outside size
|
7000*5160*3250mm(L×W×H)
|
|
|
|
||||
|
Inside size
|
6900*3900*2600mm(L×W×H)
|
|
|
|
||||
|
Entry door
|
3 folds,2900x2500 mm(W×H), bending steel door
|
|
|
|
||||
|
Emergency door
|
700*2000mm(W*H),equipped with pressure lock
|
|
|
|
||||
|
Main System
|
|
|
|
|
||||
|
Cabin system
|
Wall panel
|
EPS foam colorful steel skin panel, 50mm thick, tongue&groove style, compound construction.
Galvanized steel roof panel.
|
|
|
||||
|
|
Basement
|
ENHANCE BASEMENT
The basement made by high quality galvanized C-shaped steel design and square tubes assembling.
|
|
|
||||
|
Ventilation system
|
Intake fan
|
Two sets of 3KW Double-intake centrifugal fan,air Capacity:20000m³/ h.
|
|
|
||||
|
|
Exhaust fan
|
1 set European-style exhaust air fan, air capacity:18000m³/h. Large air volume and low noise.
|
|
|
||||
|
|
Cabinet setting type
|
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful.
-Cabinet for the fan*1unit ,air duct*2units. -Elbow:90°*1 unit. |
|
|
||||
|
|
Airflow speed
|
On load 0.3m/s,ventilation rate:280time/h
|
|
|
||||
|
Heating system
|
Optional : Electric heating/Diesel heating/Gas heating
|
|
|
|
||||
|
Lighting system
|
Ceiling lights
|
32pcs*16w LED lighting
|
|
|
||||
|
|
Side lights
|
Optional
|
|
|
||||
|
Filtering system
|
Intake filter
|
could capture the articles larger than 10µm.
|
|
|
||||
|
|
Roof filter
|
could capture the articles larger than 4µm.
|
|
|
||||
|
|
Floor filter
|
The floor filter is fiberglass filter, TSP≤14mg/m³.
|
|
|
||||
|
Control system
|
Control panel
|
Intelligent control system
|
|
|
||||
|
|
Function
|
Lighting,painting, Overload, lack of phase protection
|
|
|
||||
|
Voltage/frequency
|
380V,50HZ,3phase,customized
|
|
|
|
||||
|
Environmental protecticion machine
|
--Water curtain cabinet
--Activated carbon and photo oxygen catalytic integrated machine
--Other
|
|
|
|
||||
|
|
|
|
|
|
||||
Details Images
Why Choose Us
Customer Reviews
Product packaging
Delivery Details
:Normonally we will ship you our standard specifications goods about 7-10 days after receiving your payment.
It
depends on the quantities you order.
Packing Details:
Standard exportation packing with polyfoam / wooden box / carton.Our package
is very professional. We use the iron bracket package and it can fix the product and prevent them from broken. Moreover, every
components with label and it easy for customers to distinguish.
Case Display
FAQ
Q: How do you ganrantee the production quality?
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before the shipment.
Q: May I know the Lead time?
A:The lead time of our machine is 7-25 days. When you order more, we need to check the production schedule.
Q: What is the regular color? May I order a special color I like?
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 24 months. Parts have free replacement when damaged during this time.
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before the shipment.
Q: May I know the Lead time?
A:The lead time of our machine is 7-25 days. When you order more, we need to check the production schedule.
Q: What is the regular color? May I order a special color I like?
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 24 months. Parts have free replacement when damaged during this time.
