Quick Details
-
Products name:
-

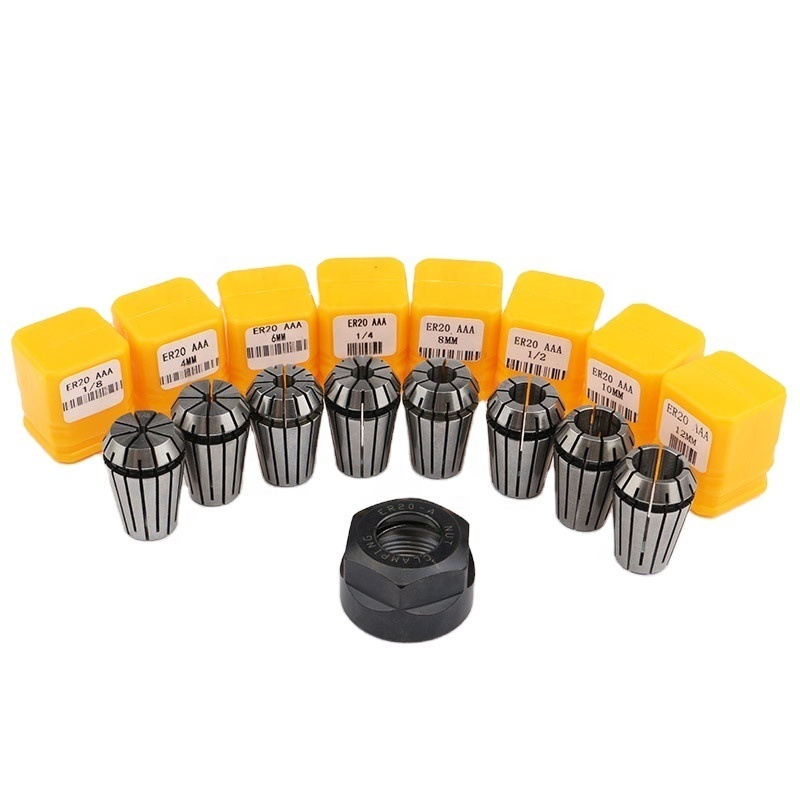

ER20 chunk
-
Application:
-
engraving cutter holder
-
Type:
-
Standard
-
Material:
-
65Mn
-
Color:
-
Silver
-
Delivery time:
-
In-stocked
-
Precision:
-
0.008
-
MOQ:
-
1pcs
-
Advantage:
-
high precision
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HYCNC
-
Core Components:
-
65Mn steel
-
Products name:
-
ER20 chunk
-
Application:
-
engraving cutter holder
-
Type:
-
Standard
-
Material:
-
65Mn
-
Color:
-
Silver
-
Delivery time:
-
In-stocked
-
Precision:
-
0.008
-
MOQ:
-
1pcs
-
Advantage:
-
high precision
2.precision:0.005mm
3.hardness:HRC 44-46
4.used for boring, milling, drilling, etc...
Model Number: ER
Collet CNC lathe chuck ER,OZ,
Sealing collet chuck
High accuracy:0.005mm...
Model Number: ER Collet
| Model | D | D1 | D2 | L | L1 | L2 | L3 |
| ER8 | 8 | 8.5 | 6.5 | 13.5 | 2.7 | 1.5 | 1.2 |
| ER11 | 11 | 11.5 | 9.5 | 18 | 3.8 | 2.5 | 2 |
| ER16 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4 | 2.7 |
| ER20 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 |
| ER25 | 25 | 26 | 22 | 34 | 6.66 | 5 | 3.1 |
| ER32 | 32 | 33 | 29.2 | 40 | 7.16 | 5.5 | 3.6 |
| ER40 | 40 | 41 | 36.2 | 46 | 7.66 | 7 | 4.1 |
| ER50 | 50 | 52 | 46 | 60 | 12.6 | 8.5 | 5.5 |
| ER8 | 9 PCS | 1-5 mm(1,1.5,2,2.5,3,3.5,4,4.5,5mm) |
| ER11 | 5PCS | 3-7mm(3;4;5;6;7mm) if 7PCS,includes 1&2mm |
| ER16 | 8PCS | 3-10mm(3;4;5;6;7;8;9;10mm) |
| ER20 | 6PCS | 3-13mm(3;4;6;8;10;13mm) |
| 11PCS | 3-13mm(3;4;5;6;7;8;9;10;11;12;13mm) | |
| ER25 | 7PCS | 4-16mm(4;6;8;10;12;14;16mm) |
| 15PCS | 2-16mm(2;3;4;5;6;7;8;9;10;11;12;13;14;15;16mm) | |
| ER32 | 6PCS | 6-20mm(6;8;10;12;16;20mm) |
| 11PCS | 4-20mm(4;5;6;8;10;12;13;15;16;18;20mm) | |
| 18PCS | 3-20mm(3;4;5;6;7;8;9;10;11;12;13;14;15;16;17;18;19;20mm) | |
| ER40 | 7PCS | 6-25mm(6;8;10;12;16;20;25mm) |
| 15PCS | 4-26mm(4;5;6;8;10;12;13;15;16;18;20;21;23;25;26mm) | |
| 23PCS | 4-26mm(4;5;6;7;8;9;10;11;12;13;14;15;16;17;18;19;20; | |
| 21;22;23;24;25;26mm) | ||
|
ER50 |
12PCS | 10-34mm(10,12,14,16,18,20,22,24,26,28,30,32,34mm) |
Why choose us?
♦ Good experience of 10 years to cooperate more than 10 countries.
.
♦ Good experience of OEM and ODM for our customers.
♦ Serve the big company also the small company.
♦ Provide best price, good quality and fast delivery.
Wish we have the chance to be on service of you.
