158.75*158.75mm，166*166mm,182*182mm
- Product Details
- {{item.text}}

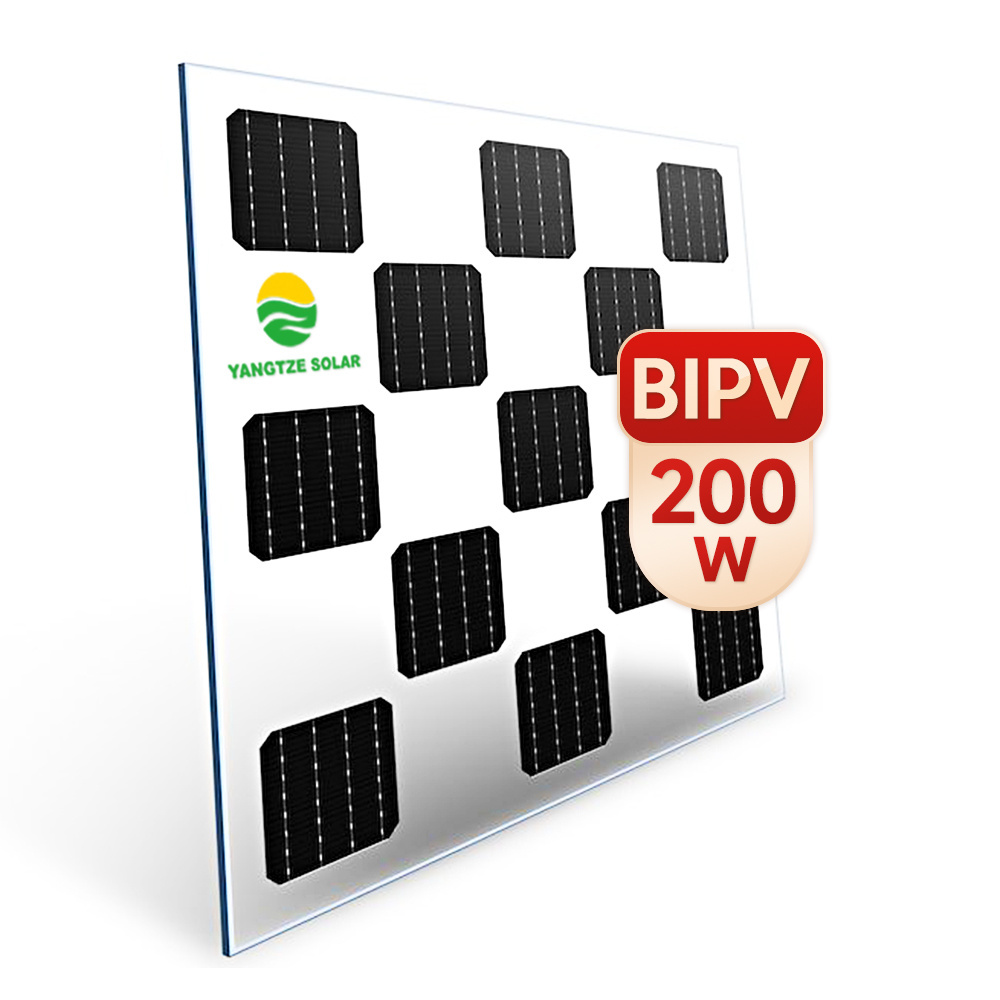

Quick Details
-
Panel Dimensions:
-
customzied
-
max power:
-
200w
-
Color:
-
Customized Color
-
Solar cell:
-
166*166mm
-
Cell Type:
-
Mono PERC Half Cell
-
Cable:
-
4.0mm2
-
Thickness of the glass:
-
3.2mm/5mm/6mm/8mm/10mm/12mm
-
Warranty:
-
25 Years
-
OEM Order:
-
Acceptable
-
Junction Box:
-
IP68 Waterproof
-
Transparent:
-
30% 40% 50% 80%
Quick Details
-
Brand Name:
-
Yangtze
-
Model Number:
-
YS200-BI
-
Place of Origin:
-
China
-
Panel Dimensions:
-
customzied
-
max power:
-
200w
-
Color:
-
Customized Color
-
Solar cell:
-
166*166mm
-
Cell Type:
-
Mono PERC Half Cell
-
Cable:
-
4.0mm2
-
Thickness of the glass:
-
3.2mm/5mm/6mm/8mm/10mm/12mm
-
Warranty:
-
25 Years
-
OEM Order:
-
Acceptable
-
Junction Box:
-
IP68 Waterproof
-
Transparent:
-
30% 40% 50% 80%
|
Model Type
|
|
YS200M-BI
|
|
YS300M-BI
|
YS400M-BI
|
|||||
|
Rated Maximum Power at STC
|
|
200W
|
|
300W
|
400W
|
|||||
|
Maximum Power Voltage (Vmp)
|
|
28.5V
|
|
33.2V
|
34.82V
|
|||||
|
Maximum Power Current (Imp)
|
|
7.02A
|
|
9.03A
|
11.49A
|
|||||
|
Open Circuit Voltage ( Voc)
|
|
35.63V
|
|
41.5V
|
43.53V
|
|||||
|
Short Circuit Current (Isc)
|
|
7.51A
|
|
9.69A
|
12.64A
|
|||||
|
Module Efficiency
|
|
14.90%
|
|
18.44%
|
21.98%
|
|||||
|
Working Conditions&Working Conditions
|
|
|
|
|
|
|||||
|
Glass Thickness
|
|
2mm 4mm 6mm 8mm 10mm 12mm
|
|
|
|
|||||
|
Transmittance
|
|
10% 20% 30% 40% 50% 60% 70% 80%
|
|
|
|
|||||
|
Operating Temperature
|
|
-40°c~+85°c
|
|
|
|
|||||
|
Maximum System Voltage
|
|
DC 1000V(IEC) / 1500V(IEC)
|
|
|
|
|||||
|
Maximum Series Fuse
|
|
25A
|
|
|
|
|||||
|
Power Tolerance
|
|
0~+5W
|
|
|
|
|||||
|
Temperature Coefficient of Pmax
|
|
-0.35%/°c
|
|
|
|
|||||
|
Temperature Coefficient of Voc
|
|
-0.29%/°c
|
|
|
|
|||||
|
Temperature Coefficient of Isc
|
|
+0.048%/°c
|
|
|
|
|||||
|
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
|
|
|
|
|
|
|||||
|
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
|
|
|
|
|
|
|||||
Solar Cells
Crystalline silicon cells, high power, guaranteed power generation
Transmittance
The greater the light transmittance, the better the lighting in the house,Transmittance is generally between
10% and 80%
10% and 80%
Component structure
(The following is a schematic diagram of the conventional structure)
Glass processing thickness
While ensuring the aesthetics, it can also protect the cells.Now the thickness we do is generally
between 4mm-12mm
between 4mm-12mm
Glass color
For some BIPV that is used in buildings and needs color, colored glass can be selected
Glass Color
For some BIPV that is used in buildings and needs color, colored glass can be selected
Shape
Sizes can be customized，the following are several common shapes
