Quick Details
-
Row Distance(mm):
-
1 - 200 mm
-
Usage:
-
garlic harvester
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
always here
-
Dimension(L*W*H):
-
170*135*90CM
-
Weight:
-
200 KG
-
Name:
-
Tractor Front Mounted Garlic Harvester
-
Function:
-
garlic harvest
-
Power:
-
17-40kw
-
loss rate:
-
2%
-
Capacity:
-
0.3-0.5 acre/h
-
drive type:
-
four-wheeler
-
automation:
-
semi automatic
-
front depth:
-
about 10cm
-
material:
-
manganese plate
-
MOQ:
-
1 Set
Quick Details
-
Number of Rows:
-
6
-
Working Width(mm):
-
1300 mm
-
Tractor Power(HP):
-
0 - 35 HP
-
Row Distance(mm):
-
1 - 200 mm
-
Usage:
-
garlic harvester
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
always here
-
Dimension(L*W*H):
-
170*135*90CM
-
Weight:
-
200 KG
-
Name:
-
Tractor Front Mounted Garlic Harvester
-
Function:
-
garlic harvest
-
Power:
-
17-40kw
-
loss rate:
-
2%
-
Capacity:
-
0.3-0.5 acre/h
-
drive type:
-
four-wheeler
-
automation:
-
semi automatic
-
front depth:
-
about 10cm
-
material:
-
manganese plate
-
MOQ:
-
1 Set
Products Description

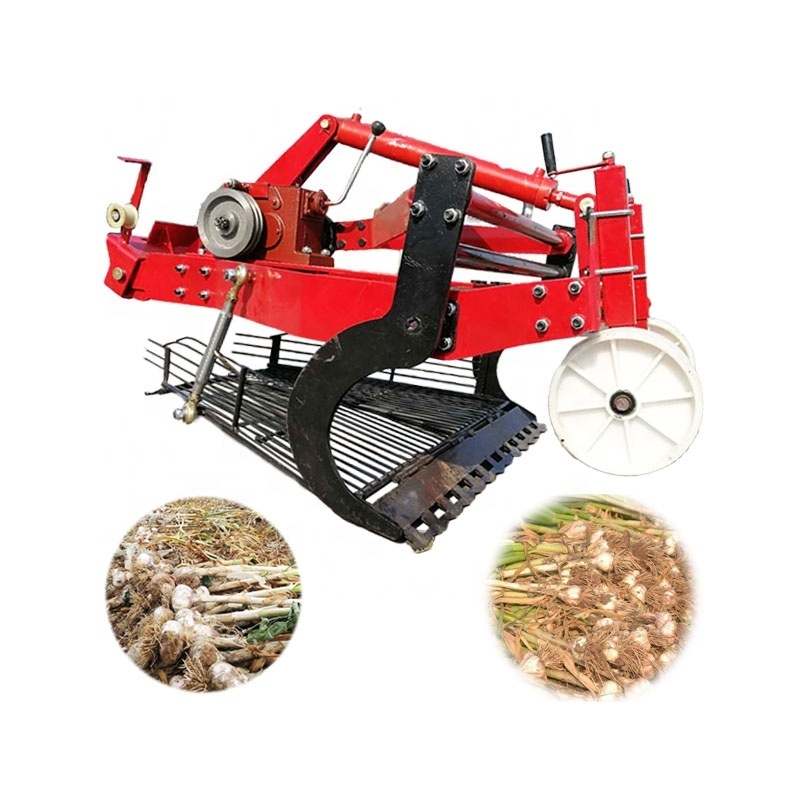

Tractor Front Mounted Garlic Harvester
This garlic harvester is suitable for single-cylinder 170-404 tractors with a wheel base of no more than 130 cm. Generally, 2800 B-type V-belts are used.
It is better to use a 150 cm working wheel for the matching tractor, and the speed should be 2 or 1 slow, and the oil volume should not be too large.
The edge wires on both sides of the sieve can adjust the height behind the sieve, and it is 5-8 cm away from the ground.
The front knife of the harvester is sunk into the soil to the root of the garlic, about 10 cm.
Product Parameters
The appearance of machines may vary slightly due to product upgrades and changes in production plans.
|
Model
|
NT-G130
|
|
Size
|
170*135*90 cm
|
|
Weight
|
200 kg
|
|
Lose Rate
|
2%
|
|
Row
|
6 rows
|
|
Power
|
17-40 kw
|
|
Capacity
|
0.3-0.5 acre/h
|
Features and Advantages
Want a harvester?
Choose us!
1.
This garlic harvester is made of high-strength manganese plate, with good hardness, anti-vibration and no breakage.
2.
High-strength forged manganese steel knife, sieve is 45 straight steel.
3.
Nano original plastic control wheel, wear-resistant and not cracked.
4. The oil cylinder is a double return high pressure engineering cylinder, safe and efficient.
5. The whole machine is high temperature spray, beautiful and eye-catching.
4. The oil cylinder is a double return high pressure engineering cylinder, safe and efficient.
5. The whole machine is high temperature spray, beautiful and eye-catching.
Suitable for small and medium farms
For harvesting garlic, and other crops of similar size
High cost performance, no garlic damage
Detailed Images
Packaging & Shipping
Packed in wooden box.
