Fiber Optic Attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. The basic types of optical attenuators are fixed and variable, and are designed to be used with various kinds of fiber optic connectors. The attenuators can be female to female or male to female.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
APT/OEM
-
Use:
-
FTTX Systems/PON Networks, etc.
-
Warranty Time:
-
2years
-
Product name:
-
Fiber Optic Attenuator
-
Brand:
-
APT/OEM Avaliable
-
Certification:
-
CE/FCC/RoHS/ISO9001
-
Connector Type:
-
FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
-
Material:
-
PBT / PVC /Metal Material
-
Model:
-
Single Model or Multimode
-
Application:
-
FTTX ODF/CATV System
-
Package:
-
Plastic Box
-
Warranty:
-
2 Yeas
-
Function:
-
FTTH FTTX System
Quick Details
-
Type:
-
Fiber Optic Attenuator
-
Model Number:
-

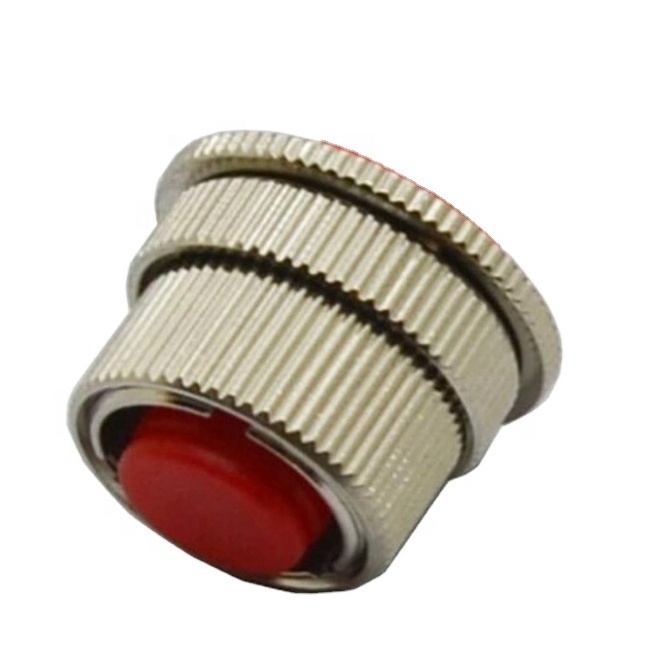

FC/UPC Adjustable Fiber Attenuator
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
APT/OEM
-
Use:
-
FTTX Systems/PON Networks, etc.
-
Warranty Time:
-
2years
-
Product name:
-
Fiber Optic Attenuator
-
Brand:
-
APT/OEM Avaliable
-
Certification:
-
CE/FCC/RoHS/ISO9001
-
Connector Type:
-
FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
-
Material:
-
PBT / PVC /Metal Material
-
Model:
-
Single Model or Multimode
-
Application:
-
FTTX ODF/CATV System
-
Package:
-
Plastic Box
-
Warranty:
-
2 Yeas
-
Function:
-
FTTH FTTX System
|
Product Description
|
|
|
|
|
||||
|
Product Basic Info.
|
|
|
|
|
||||
|
Model NO.
|
Fiber Optic Attenuator
|
Attenuation Range
|
1~30dB
|
|
Wide Operating Wavelength
|
SM:1310/1550nm MM: 850/1300nm 1260-1650nm
|
Maximum Optical Input Power
|
1000MW
|
|
Application
|
FTTX Systems/Pon Networks
|
Material
|
PVC / Metal
|
|
Model Type
|
Singlemode or Multimode
|
Connector Type
|
FC/SC/LC/St/Mu/DIN/SMA/E2000/MT-RJ/MPO/MTP
|
|
Return Loss (dB)
|
>50dB
|
Polarization Dependent Loss
|
<0.1 dB
|
|
Ferrule Materials
|
Ceramic
|
Specification
|
RoHS
|
|
Storage Temperature
|
-45~+85
|
Operating Temperature
|
-40~+75
|
|
Trademark
|
APT or OEM
|
Warranty
|
2 Years
|
|
Production Capacity
|
100000PCS/Month
|
HS Code
|
8536700000
|
|
Product application
|
|
|
|
|
||||
|
FC/APC single mode fiber optic attenuator and FC/PC single mode fiber optic attenuator are available, both of them
are with ceramic sleeves and accurate FC connection interface. The attenuation range is from 1dB to 30dB available. The FC fiber attenuator features high power endurance and low back reflection. They are used to reduce the optical power in the fiber optic links. |
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Application:
|
|
|
|
|
||||
|
. Optical fiber communication system
. Cable television network . LAN, WAN . Optical fiber access network . video transmission . test equipment |
|
|
|
|
||||
|
Complied with or exceeds Standard
.
Telcorida GR-326-CORE(ferrule end face quality compliant)
. Telecordia GR-910-CORE . EC 60874-7, F01(JIS C5970) TIA/EIA-604-4A . TIA/EIA-568B-B.3 Fiber Optic Cabling Components Standard . EEE802.3z Standards for Fiber Optic Cabling . RoHS Approved for European Market Requirements |
|
|
|
|
||||
|
Features
. Precise attenuation level(with 1dB,2dB,3dB... to 30dB, typical 5dB, 10dB 15dB)
. Inline design is easy to use (plugs between existing fiber jumper & equipment) . Portable, Easy installation, Readily panel mountable . High Quality Return loss 60db or Greater . Custom designed specifications . Dual wavelength (1310nm/1550nm) . Attenuators marked with attenuation level |
|
|
|
|
||||
Details Images
|
Product Parameters
|
|
|
|
|
||||
|
Characteristics
|
Unit
|
Conditions
|
Values
|
|
Attenuation
|
dB
|
UPC
|
1 ~ 30
|
|
|
|
APC
|
1 ~ 20
|
|
Return Loss
|
dB
|
UPC
|
≥50
|
|
|
|
APC
|
≥60
|
|
Operating Wavelength
|
nm
|
-
|
1310 and 1550, 1240 - 1600
|
|
Attenuation Accuracy
|
-
|
1 ~ 10dB
|
± 0.5dB
|
|
|
|
11 ~ 30dB
|
± 10%
|
|
Operating Temperature
|
°C
|
-
|
-40 ~ +75
|
|
Storage Temperature
|
°C
|
-
|
-40 ~ +85
|
|
Polarization Dependent Loss
|
dB
|
-
|
<0.2
|
|
Relative Humidity
|
%
|
75°C
|
95
|
|
