Quick Details
-
Size:
-
12 1/4''
-
Seal type:
-
Rubber sealed bearing
-
Bearing type:
-
sliding bearing
-
Application:
-
water/oil/gas well drilling
-
Diameter:
-
3 3/4"~26"
-
Button Materia:
-
tungsten carbide
-
Color:
-
customized
-
Formation:
-
soft to hard
-
MOQ:
-
1 pieces
-
Service:
-
OEM Services
Quick Details
-
Weight (KG):
-
43
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SDK
-
Size:
-
12 1/4''
-
Seal type:
-
Rubber sealed bearing
-
Bearing type:
-
sliding bearing
-
Application:
-
water/oil/gas well drilling
-
Diameter:
-
3 3/4"~26"
-
Button Materia:
-
tungsten carbide
-
Color:
-
customized
-
Formation:
-
soft to hard
-
MOQ:
-
1 pieces
-
Service:
-
OEM Services
Product Description

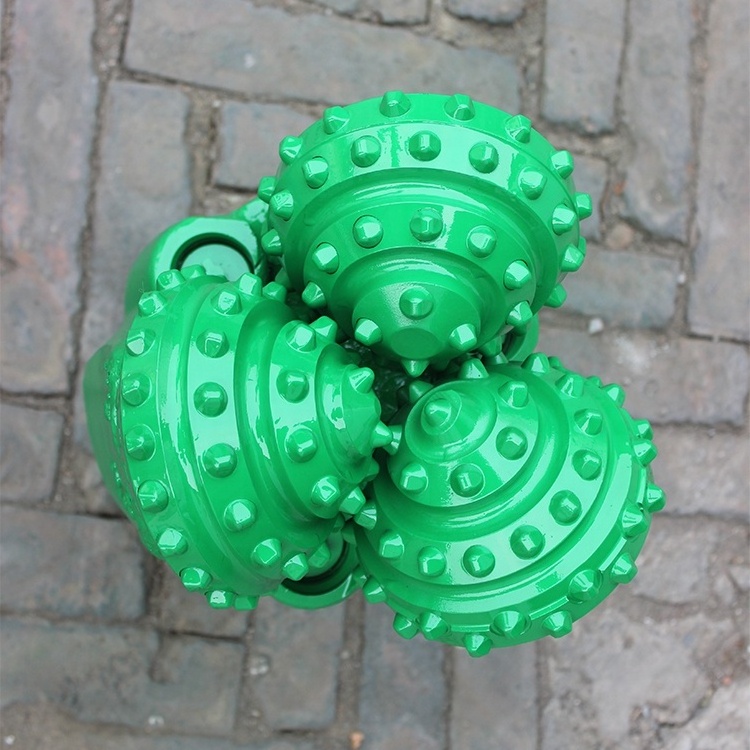

Tricone Rock Drilling Head Bit For Oil Well Drilling Rigs Rock Tricone
Our tricone bit is from high manganese steel and carbide, can be used for geological prospecting, development of oil and gas, drilling water wells,blast holes and making holes for seismic prospecting,construction engineering. Now there are eleven common types of tricone rock bits.
|
classify of tricone bits/roller bits
|
|
|
||
|
|
Steel teeth series
|
TCI series
|
||
|
IADC CODE
|
116.117.126.127.136.137.216.217.317.337
|
417.437.447.517.527.537.547.617.627.637.647.737.837
|
||
TCI tricone bit, tci roller Bits ,roller bit,steel tooth roller bit,TCI roller bit,TCI tricone bit
1.Sizes rang from 3 7/8" to 26"
2.Covers almost all IADC code.
3.Reliable quality and reasonable price
Products Description
Normal IADC:
437 Soft Formation TCI Tricone Bits:
The 437 TCI bits are used to drill low compressive strength, very soft formations. TCI bits maximize the use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.
517Medium Formation TCI Tricone Bits:
The 517 features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium-to-medium hard formation. The HSN rubber O-ring provides adequate sealing for bearing durability.
637Hard Formation TCI Tricone Bits:
The 637 bits can be used to drill hard and abrasive formation. Wear-resistant tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical-shaped inserts are used in all rows to provide cutter durability and long life.
617Medium-Hard Formation TCI Tricone Bits:
The 617 features robust chisel tungsten carbide inserts on the heel row and conical on the inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing durability.
|
Specifications:SDK tricone bit
|
|
|
|
|||
|
IADC
|
WOB (KN/mm)
|
RPM (r/min)
|
Application
|
|||
|
111/114/115
|
0.3-0.75
|
200-80
|
very soft formations with low compressive strength and high drill ability , like clay, mudstone, chalk
|
|||
|
116/117
|
0.35-0.8
|
150-80
|
|
|||
|
121
|
0.3-0.85
|
200-80
|
soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
|
|||
|
124/125
|
|
180-60
|
|
|||
|
131
|
0.3-0.95
|
180-80
|
soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone,medium formation with harder and abrasive interbeds
|
|||
|
36/137
|
0.35-1.0
|
120-60
|
|
|||
|
211/241
|
0.35-1.0
|
180-80
|
medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder inte rbeds.
|
|||
|
216/217
|
0.4-1.0
|
100-60
|
|
|||
|
246/247
|
0.4-1.0
|
80-50
|
medium hard formation with high compressive strength, like hard shale, lime stone, sandstone, dolomite
|
|||
|
321
|
0.4-1.0
|
150-70
|
medium abrasive formations, like abrasive shale， limestone， sandstone, dolomite, hard gypsum, marble
|
|||
|
324
|
0.4-1.0
|
120-50
|
|
|||
|
437/447/435
|
0.35-0.9
|
240-70
|
very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft
limestone |
|||
|
517/527/515
|
0.35-1.0
|
220-60
|
soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
|
|||
|
537/547/535
|
0.45-1.0
|
220-50
|
soft to medium formations with low compressive strength, like medium, soft shake, medium soft lime stone, medium soft sandstone,medium formation with harder and abrasive interbeds
|
|||
|
617/615
|
0.45-1.1
|
200-50
|
medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
|
|||
|
637/635
|
0.5-1.1
|
180-40
|
hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble
|
|||
|
Note: Above limits of WOB and RRPM should not be used simultaneously
|
|
|
|
|||
Different Tooth Shapes And Application:
Dome / Round button
Used as gauge buttons of DTH bits, suitable for very abrasive and very hard rock formation.
Parabolic / Semi-ballistic
Used as gauge buttons and front buttons of DTH Bits, suitable for medium abrasive and hard rock formations.
Ballistic button
Used front buttons of DTH bits, suitable for medium abrasive and medium hard formations. Also be used as gauge buttons for soft rock.
