1. The powerful 24-bit CPU realizes high-precision and fast response LCD display;
2. The low temperature can reach -30 ℃;
3. Key operation can rewrite the range on site.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
FD3051SDP
-
Item:
-
lng lpg cng gas differential pressure transmitter
-
Pressure Range:
-
0-50Pa~3MPa
-
Accuracy:
-
0.075%F.S 0.1%F.S 0.25%F.S
-
Stability:
-
Standard: 0.2%/year
-
Temperature Compensation:
-
-20℃~80℃
-
Power Supply:
-
12V~32VDC (Recommend 24VDC )
-
Explosion-proof:
-
13,Exd II C T6 Gb Ex ia II C T6 Gb Ex Td A21 IP66 T80℃
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FRD
-
Model Number:
-
FD3051SDP
-
Item:
-
lng lpg cng gas differential pressure transmitter
-
Pressure Range:
-
0-50Pa~3MPa
-
Accuracy:
-
0.075%F.S 0.1%F.S 0.25%F.S
-
Stability:
-
Standard: 0.2%/year
-
Temperature Compensation:
-
-20℃~80℃
-
Power Supply:
-
12V~32VDC (Recommend 24VDC )
-
Explosion-proof:
-
13,Exd II C T6 Gb Ex ia II C T6 Gb Ex Td A21 IP66 T80℃
Products Description
Click pictures to view more

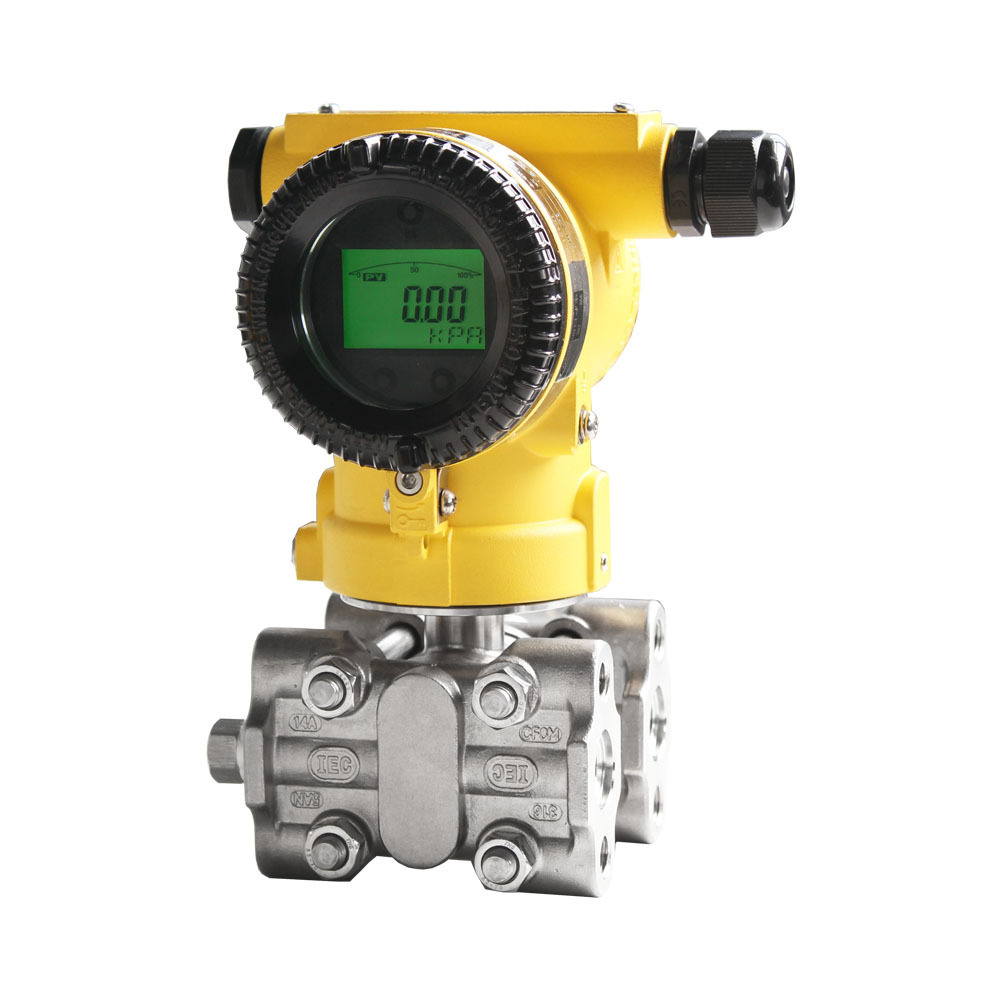

FD3051S DP-Differential Pressure Transmitter
The FD3051ST series smart single crystal silicon differential pressure transmitter is a high -precision, high -stability, multi -parameter pressure measurement product, which is in line with the Hart protocol. The digital technology adopted by this product is the latest application results in the field of sensor manufacturing. Combined with the international advanced single crystal silicon core design and manufacturing technology, precision digital temperature compensation and non -linear correction are performed. LCD4 -bit display, standard signal output, the on -site and control room observations. The reliable explosion -proof structure design and standardized signal output, high accuracy and wide range coverage range, suitable for precision measurement of fluid pressure. Hart375 hand operators can perform digital communication, and electromagnetic radiation meets the IEC801 standard.
1. Powerful personal protection, transmitter security guard;
2. Despite the thunder and lightning, still working steadily.
Used in the requirements of strong corrosiveness to the chemical site and harsh environment.
1. Beautiful appearance, showing the beauty of fashion technology;
2. Inner thick and sturdy, meet the most demanding environment.
1. Precise liquid filling technology eliminates the influence of temperature and static pressure;
2. Double-diaphragm overload protection structure, easily deal with high overload test.
2. Double-diaphragm overload protection structure, easily deal with high overload test.
1. Super thick reinforced structure, indestructible;
2. Powerful guarantee of high static pressure and high overload.
|
Model
|
FD3051S DP-Differential Pressure Transmitter
|
|
Pressure Range
|
0-200pa~6kPa
0-400pa~40kpa
0-2.5Kpa~250kpa
0-20Kpa~250kpa
|
|
Pressure Type
|
Differential pressure
|
|
Solating Diaphragm
|
SS316L, Hastelloy C, Tantalum, SS316L gold plated, SS 316L coated FEP
|
|
Output Signal
|
Two Wire 4~20mADC, 4~20mADC with HART
|
|
Output Signal
|
15-36V DC,24V DC
|
|
Accuracy
|
≤ 0.075%, 0.1%F.S
|
|
Overload/Burst pressure
|
150% F.S/200% FS
|
|
Long-term stability
|
±0.1%* Span/3 years
|
|
working temperature
|
-20℃～80℃
|
|
Electrical Connection
|
Standard product ISO M20 × 1.5 female thread;
ANSI NPT1/2(F) female thread
|
|
Process Connection
|
1.1/4 inch NPT female thread on the splint;
2. 1/2 inch NPT female thread stainless steel oval flange;
3.M20x1.5 male thread stainless steel T-shaped joint with M20X1.5 to φ14 welded pipe;
4.NPT1 / 4-M20 × 1.5 adapter, with φ14 welded pipe;
5.NPT1 / 2-M20 × 1.5 adapter, with φ14 welded pipe
|
|
Indicator
|
LCD Display
|
|
Working Pressure
|
Static pression16MPa、25MPa、40MPa
|
|
Process Material
|
316 Stainless Steel
|
|
Output signal
|
4mA～20mADC 1V-5VDC RS485
|
|
Explosion Protection
|
NEPSI : Ex dⅡC T6, Ex iaⅡC T4
|
|
Protection Level
|
IP67
|
|
Weight
|
About 3.3kg
|
