Quick Details
-
Air Consumption:
-
7-8m3/min
-
Place of Origin:
-
Hebei, China
-
Voltage:
-
380
-
Power:
-
7.5kW
-
Dimension(L*W*H):
-
1600*800*1200mm
-
Weight:
-
850 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Application:
-
industry
-
Keywords:
-
Shoecrete Machine
-
After-sales Service Provided:
-
Engineers
-
Type:
-
Robotic Telescopic Concrete Spray System
-
Name:
-
Construction works
-
Applicable materials:
-
Wet Concrete
-
Function:
-
Concrete Shotcrete Machine
-
Capacity:
-
7L
-
Key words:
-
Shotcrete Pump Concrete
Quick Details
-
Max. Conveying Distance:
-
200m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
7-8m3/min
-
Place of Origin:
-
Hebei, China
-
Voltage:
-
380
-
Power:
-
7.5kW
-
Dimension(L*W*H):
-
1600*800*1200mm
-
Weight:
-
850 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Application:
-
industry
-
Keywords:
-
Shoecrete Machine
-
After-sales Service Provided:
-
Engineers
-
Type:
-
Robotic Telescopic Concrete Spray System
-
Name:
-
Construction works
-
Applicable materials:
-
Wet Concrete
-
Function:
-
Concrete Shotcrete Machine
-
Capacity:
-
7L
-
Key words:
-
Shotcrete Pump Concrete
China Factory 3m3/h 5m3/h 7m3/h 9m3/h Concrete Dry Shotcrete Machine Concrete Spray Shotcrete Gunite Machine Wet and Dr
y

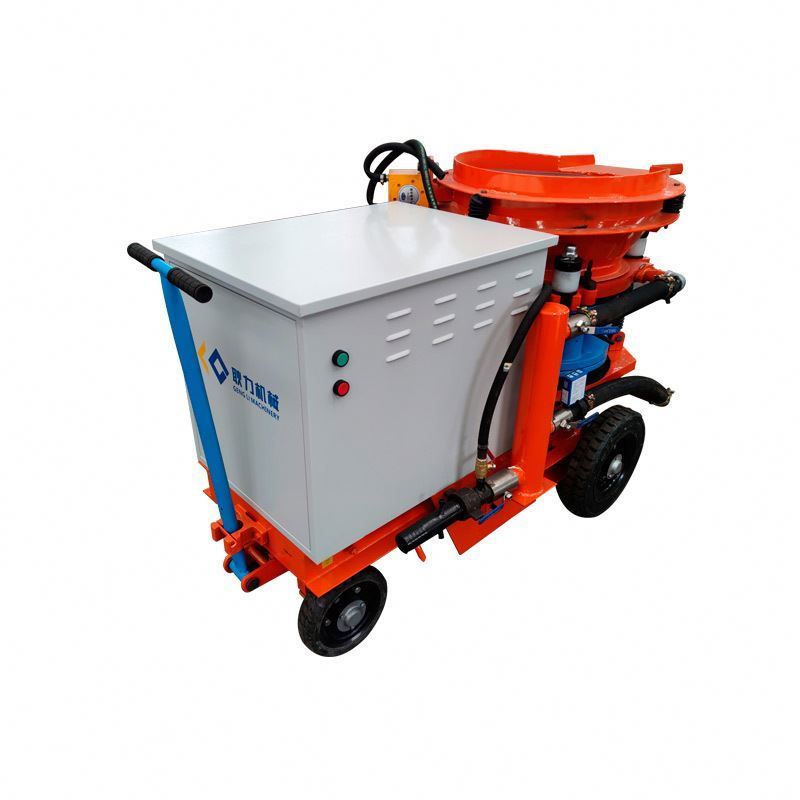

Product introduction
Dry electric shotcrete machine is a kind of equipment used for dry shotcrete. It has the advantages of advanced technology, reasonable structure, stable performance, easy operation and maintenance, and long service life. Widely used in mine, tunnel, culvert, subway, underground engineering and coal mine drainage tunnel construction work.
Dry electric shotcrete machine is a kind of equipment used for dry shotcrete. It has the advantages of advanced technology, reasonable structure, stable performance, easy operation and maintenance, and long service life. Widely used in mine, tunnel, culvert, subway, underground engineering and coal mine drainage tunnel construction work.
|
Model
|
|
PZ-5
|
PZ-7
|
|
|
Spaying capacity
|
|
6-8m³/h
|
9-10m³/h
|
|
|
Max. grain size
|
|
20mm
|
20mm
|
|
|
Group aggregate fineness modulus
|
|
≥2.5
|
≥2.5
|
|
|
Liquid accelerator dosage
|
|
0
|
0
|
|
|
Conveying hose diameter
|
|
51mm
|
57mm
|
|
|
Concrete slump
|
|
10-20cm
|
10-20cm
|
|
|
System wind pressure
|
|
≥0.5MPa
|
≥0.5MPa
|
|
|
Working wind pressure
|
|
0.4-0.6MPa
|
0.4-0.6MPa
|
|
|
Air consumption
|
|
≥12m³/min
|
≥12m³/min
|
|
|
Maximum conveying distance
|
Horizontal
|
200m
|
100m
|
|
|
|
Vertical
|
200m
|
100m
|
|
|
Machine dust
|
|
<10mg>
|
<10mg>
|
|
|
Rebound(under standard process conditions)(%)
|
|
≤20
|
≤20
|
|
|
main motor power
|
|
7.5kW
|
7.5kW
|
|
|
Dimensions(L × W× H)
|
|
1600×800×1200mm
|
1850×900×1200mm
|
|
|
weight
|
|
750kg
|
950kg
|
|
