Quick Details
-
Machinery Test Report:
-
Provided CE Certificate
-
Rated Power:
-
75
-
Engraving Speed:
-
≤50mm/s
-
Feeding Height:
-
20mm
-
Milling Cutter Diameter:
-
15*3
-
Application:
-
200*150mm
-
Dimensions:
-
22*40*30
-
Weight (KG):
-
15
-
Key Words:
-
handheld name marking machine
-
Maximum Fixture Diameter:
-
0-100mm, 0-200mm dot pin marking machine
-
Marking Depth:
-
0.1-2mm
-
Pin Hardness:
-
HRC92
-
Delivery time:
-
30 days
-
Working Environment:
-
-5~40 ℃
-
Marking Head Weight:
-
5Kgs (Portable)
-
Certification:
-
CE ISO
-
Marking Speed:
-
≤50mm/second (3-4 number/second for 3mm height letters)
-
Air Pressure:
-
0.2-0.6 Mpa
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Machine Type:
-
Pneumatic
-
Machinery Test Report:
-
Provided CE Certificate
-
Rated Power:
-
75
-
Engraving Speed:
-
≤50mm/s
-
Feeding Height:
-
20mm
-
Milling Cutter Diameter:
-
15*3
-
Application:
-
200*150mm
-
Dimensions:
-
22*40*30
-
Weight (KG):
-
15
-
Key Words:
-
handheld name marking machine
-
Maximum Fixture Diameter:
-
0-100mm, 0-200mm dot pin marking machine
-
Marking Depth:
-
0.1-2mm
-
Pin Hardness:
-
HRC92
-
Delivery time:
-
30 days
-
Working Environment:
-
-5~40 ℃
-
Marking Head Weight:
-
5Kgs (Portable)
-
Certification:
-
CE ISO
-
Marking Speed:
-
≤50mm/second (3-4 number/second for 3mm height letters)
-
Air Pressure:
-
0.2-0.6 Mpa

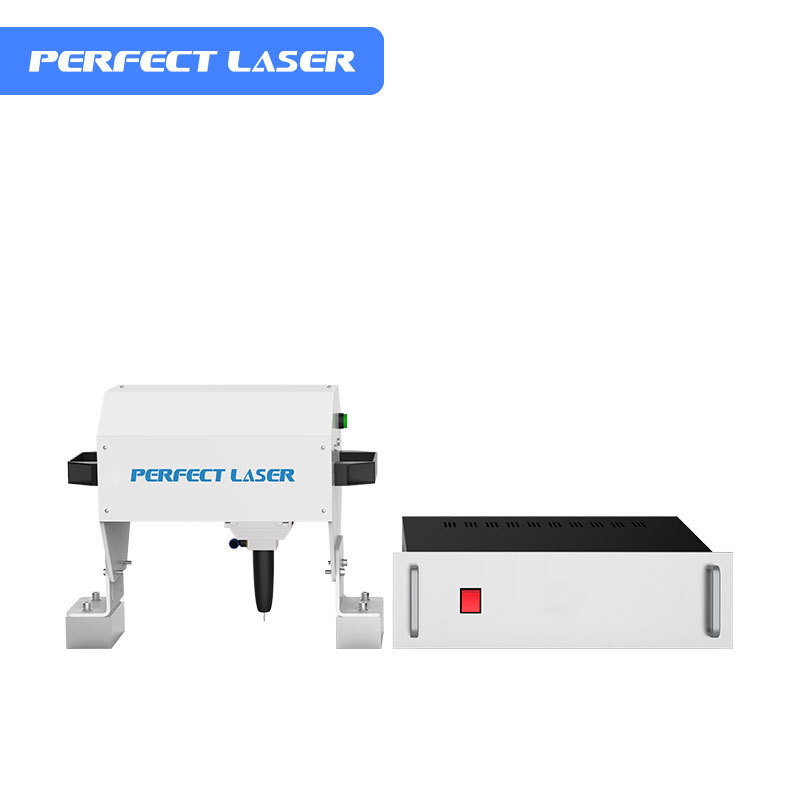

Perfect Laser- Vehicle Car Chassis Number small portable dot peen marking machine/pneumatic nameplate engraving machine
(Model: PEQD-030)
Contact: Bella (Whatsapp: 008613971605145 Skype: perfectlaser026)
Product Introduction
Product Features
1.
small portable dot peen marking machine
is portable, so it is suitable for marking on heavy objects with large size and is not easy to move.
2.
small portable dot peen marking machine
with 2 separate-body design, convenient operation.
3.
small portable dot peen marking machine
is controlled by computer, Perfect Laser’s professional marking software has a wide application and can operate under Window and XP system. It is very easy to use.
4.Portable dot peen marking machine has a very powerful editing function, and can automatically identify various letters and numbers, such as VIN code, engine number, serial number and so on.
5. Supports AutoCAD and CorelDraw logos and graphics designed in DXF format.
6. Supports multiple fonts including CHRMG fonts in Borland, TTFAuto in Windows, and SHX fonts in CAD.
7. With the function of automatically saving marked content, it can prevent damage caused by shutdown or accidental power failure.
Application & Samples
Portable dot peen marking machine
is also called a portable dot marking machine, a portable metal marking machine, a numerical point needle marking machine, and a portable pneumatic marking machine. This portable dot peen marking machine can permanently make logos on various metals and some hard plastics. For example, characters and letters can be made on surfaces such as automobiles, motorcycles, machine tools, mechanical parts, metal pipes, and pump bodies.
Machine Details
Technical Data
|
Machine Name
|
Portable Dot Peen Marking Machine
|
|
|
|
Model
|
PEQD-030
|
PEQD-030E
|
|
|
Machine Type
|
Portable Marking
|
LCD Control +
Portable Marking |
|
|
Marking Area
|
135×20mm/90×20mm/125×20mm/150×100mm/200×100mm
|
|
|
|
Marking Accuracy
|
0.01 mm
|
|
|
|
Marking Depth
|
0.01~2mm
|
|
|
|
Marking Speed
|
≤50mm/second
(3-4 number/second for 3mm height letters) |
|
|
|
Pin Hardness
|
HRC 92
|
|
|
|
Power Supply
|
220V±10％, 50HZ
|
|
|
|
Air Pressure
|
0.2-0.6 Mpa
|
|
|
|
Machine Power
|
≤400 W
|
|
|
|
Working Environment
|
-5～40 ℃
|
|
|
|
Making Head Weight
|
5 Kgs (Portable)
|
|
|
|
Whole Machine Weight
|
25 Kgs
|
30 kgs
|
|
Packing & Delivering
We have 3 layers package for channel letter machine PEQD-030:
For the outside, we adopt wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking.
For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Air-Worthy Packing or Sea Packing which comply with international standard.
Our company has the European CE certificate, Germany TUV certificate, ISO9001:2000 quality system certificate. Our products have been exported to more than 180 different countries and regions, and win good reputation from customers.
