Quick Details
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Warranty:
-
12 Months
~~~~~2019 new style rim repair machine~~~~
Specification
|
DIMENSIONS |
Specification |
|
Height |
1250 mm |
|
Width |
1110 mm |
|
Length |
900 mm |
|
Machining capacity |
10’--22.5’ |
|
Rotation |
110 rpm |
|
Hydraulic piston power |
0.55kw /0.75 hp Sound 35 db,3 Phase - single phase, 220V - 380 V |
|
Working motor |
Mechanic 0,55 kw, 1 hp, 3 phase - single phase, 220V - 380 V |
|
Working pressure |
140 bar |
|
Gross/Net Weight |
350/330kg |

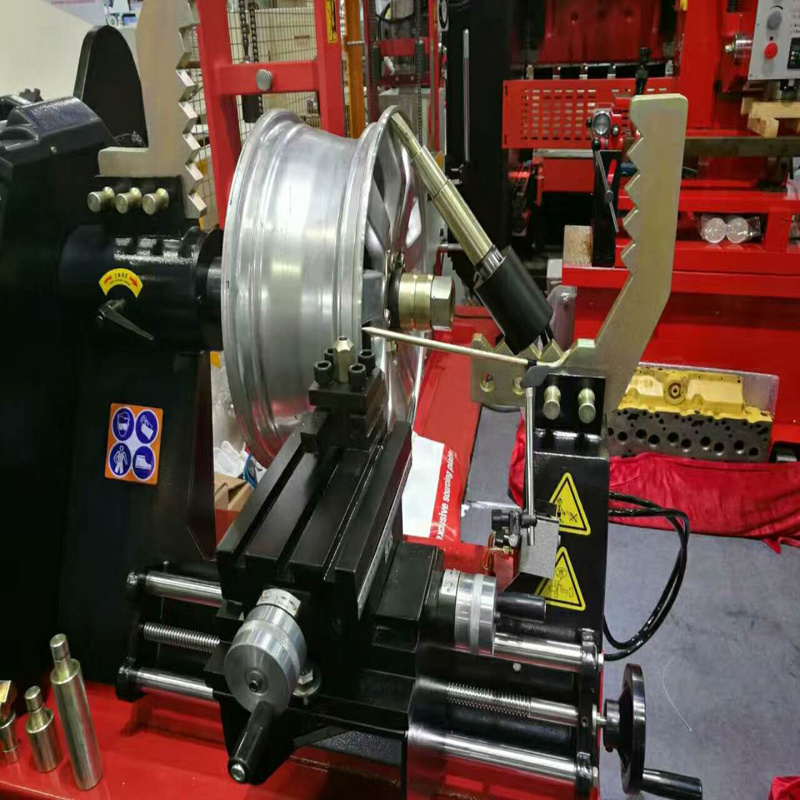

The model 85 is designed and manufactured to repair by straightening all kind of steel , aluminium and alloy wheels with range diameter between 10’-- 22.5’ The system uses an easy to handle piston controlled by an hydraulic unit that , conveniently positioned , pushes on the damaged part of the rim taking it back to the original shape . Such operation is made easier with the aid of a wide set of shaped punches that perfectly lean tothe different rim profiles . 85 moreover is equipped with a lathe unit that allows , after the wheel straightening operation , to remove dents on the edges .
