Quick Details
-
Brand Name:
-
Shantui
-
Model Number:
-
SD13
-
Dimension(Long * Breadth * High):
-
4492*3185*2950 mm
-
Engine:
-
Shangchai
-
Gross Power:
-
105/141/1900 kW/HP/rpm
-
Net power:
-
95.5/130/1900 kW/HP/rpm
-
Gradeability:
-
30°
-
Blade type:
-
Straight tilt blade/Angle blade
-
Max. drop below ground of blade:
-
590 mm
-
Lift height of blade:
-
930 mm
-
Min. turning radius:
-
4466/4545 mm
-
Ripper type:
-
Three-shank ripper
-
Ripping depth of ripper:
-
467 mm
Quick Details
-
Machine Weight:
-
13.7 t
-
Dozing Capacity:
-
3.158M3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shantui
-
Model Number:
-
SD13
-
Dimension(Long * Breadth * High):
-
4492*3185*2950 mm
-
Engine:
-
Shangchai
-
Gross Power:
-
105/141/1900 kW/HP/rpm
-
Net power:
-
95.5/130/1900 kW/HP/rpm
-
Gradeability:
-
30°
-
Blade type:
-
Straight tilt blade/Angle blade
-
Max. drop below ground of blade:
-
590 mm
-
Lift height of blade:
-
930 mm
-
Min. turning radius:
-
4466/4545 mm
-
Ripper type:
-
Three-shank ripper
-
Ripping depth of ripper:
-
467 mm

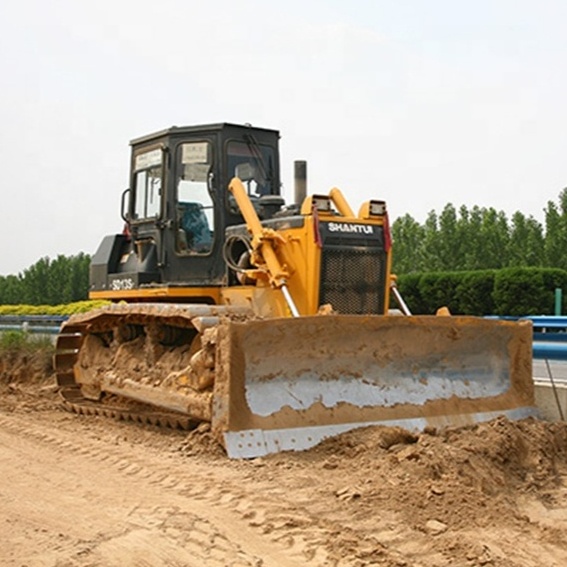

New Shantui SD13 Small Mini Bulldozer with Winch
Laura Chen
Mobile/Whatsapp/Wechat: +86 18737330327
Email: laura @ oriemac.com
Strong power, high efficiency and energy-saving, and low maintenance cost.
The rated power reaches 105kW, featuring high torque reserve coefficient.
The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.
The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.
The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.
The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
Shantui’s mature product chassis system is applicable to diversified severe working conditions, featuring high stability and reliability.
The product features long ground length, high ground clearance, stable driving, and good trafficability.
The environmental sanitation blade, ripper, and universal blade can be installed depending on specific working condition to achieve strong working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
The structural parts inherit the excellent quality of Shantui’s mature products;
The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.
The fuel filter element and the air filter are designed on one same side to achieve one-stop maintenances.
Performance Parameters
| Parameter name | SD13 (Standard version) | SD13S (Wetland version) | SD13R (Environmental sanitation version) | SD13C (Coal version) |
| Performance parameters | ||||
| Operating weight (Kg) | 13700 | 14900 | 15200 | 13900 |
| Ground pressure (kPa) | 53.8 | 38.4 | 39.2 | 54.6 |
| Engine | ||||
| Engine model | SC8D143G2B1(China-II)/SC8DK(China-III) | SC8D143G2B1(China-II)/SC8DK(China-III) | SC8D143G2B1(China-II)/SC8DK(China-III) | SC8D143G2B1(China-II)/SC8DK(China-III) |
| Rated power/rated speed (kW/rpm) | 105/1900 | 105/1900 | 105/1900 | 105/1900 |
| Overall dimensions | ||||
| Overall dimensions of machine (mm) | 4492*3185*2950 | 4492*3510*3000 | 4492*3510*3000 | 4492*3700*2950 |
| Driving performance | ||||
| Forward speed (km/h) | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 |
| Reversing speed (km/h) | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 |
| Chassis System | ||||
| Center distance of track (mm) | 1880 | 1880 | 1880 | 1880 |
| Width of track shoes (mm) | 460 | 700 | 700 | 560 |
| Ground length(mm) | 2365 | 2365 | 2365 | 2365 |
| Tank capacity | ||||
| Fuel tank (L) | 300 | 300 | 300 | 300 |
| Working device | ||||
| Blade type | Straight tilting blade | Straight tilting blade | Sanitation blade | Coal blade |
| Digging depth (mm) | 590 | 590 | 590 | 590 |
| Ripper type | Three-shank | —— | —— | —— |
| Ripping depth (mm) | 567 | —— | —— | —— |
