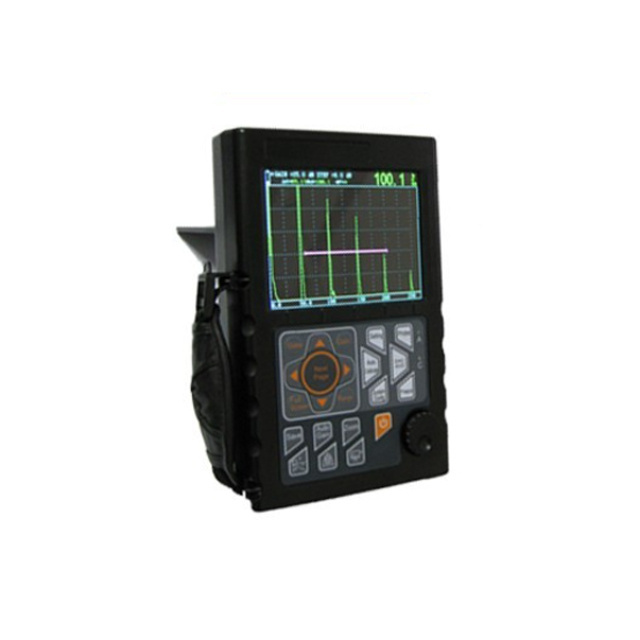

Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
YFD300
-
Measuring Range(mm):
-
0~10000
-
Vertical Linearity Error:
-
≤3%
-
Horizontal Linearity Error:
-
≤0.1%
-
Sensitivity:
-
≥62dB
-
Dynamic range:
-
≥34dB
-
Resolving Power:
-
≥36dB
-
Frequency Range (MHz):
-
0.5~20
-
Gain (dB):
-
0~120
-
Application:
-
Metal weld testing
Quick Details
-
Warranty:
-
18 months, 18 Months
-
Type:
-
-
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
OEM
-
Model Number:
-
YFD300
-
Measuring Range(mm):
-
0~10000
-
Vertical Linearity Error:
-
≤3%
-
Horizontal Linearity Error:
-
≤0.1%
-
Sensitivity:
-
≥62dB
-
Dynamic range:
-
≥34dB
-
Resolving Power:
-
≥36dB
-
Frequency Range (MHz):
-
0.5~20
-
Gain (dB):
-
0~120
-
Application:
-
Metal weld testing
Product Description
|
Range of scanning (mm)
|
0~10000
|
|
D-delay (us)
|
-20~+3400
|
|
P-delay
|
0.0~99.99
|
|
MTLVEL(m/s)
|
1000~15000
|
|
Sensitivity Leavings
|
≥62 dB
|
|
Dynamic range
|
≥34dB
|
|
Frequency Range (MHz)
|
0.5~20
|
|
Battery
|
Li battery 7.4V,4800mAh
|
|
Power adaptor
|
Input 100V~240V/50Hz~60Hz Output 9VDC/1.5A
|
|
Working temperature
|
-20C~50C
|
|
Working humidity
|
20%~90%
|
|
Port type
|
BNC or LEMO 001
|
|
Working mode
|
Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)
|
