The electric strike Y-136s is the same as Y-136 except that the Y-136-S has signal output. Y-136-S is an standard Heavy Duty Electric Strike. This is suitable for many different doors. The operating principle of electric strike is that electromagnetism producestheforcetopullorpushthereleaseleversothattolockoropenthedoor.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Feature:
-
Fail Safe
-
Voltage:
-
DC 12V
-
Current:
-
200mA
-
Working temperature:
-
-10 to 55 Celsius degree
-
Humidity:
-
0 to 95%
-
Weight:
-
0.36kg
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door,Glass Door
-
Size:
-
149Lx28Wx31H(mm)
-
Bolt Housing:
-
Stainless steel, Draw the Polishing of silk
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product Name:
-
12V DC Fail Secure NO NC Electric Strike Lock
-
Feature:
-
Fail Safe
-
Voltage:
-
DC 12V
-
Current:
-
200mA
-
Working temperature:
-
-10 to 55 Celsius degree
-
Humidity:
-
0 to 95%
-
Weight:
-
0.36kg
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door,Glass Door
-
Size:
-
149Lx28Wx31H(mm)
-
Bolt Housing:
-
Stainless steel, Draw the Polishing of silk
Product Description
400KG Holding Force Electronic Door Lock Fail Secure Fail Safe 44mm Lock Tongue 12V Electric Strike lock
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Feature
|
Fail Safe
|
|
|
||
|
Strike Structure
|
Stainless Steel
|
|
|
||
|
Holding Force
|
400kg
|
|
|
||
|
Voltage
|
DC12V (Need Order DC24V)
|
|
|
||
|
Current
|
200mA
|
|
|
||
|
Feature
|
Fail Secure; Fail Safe
|
|
|
||
|
Suitable For:
|
Wooden Door,Metal Door,PVC Door
|
|
|
||
|
Surface Temperature
|
Within +20℃
|
|
|
||
|
Suitable Temperature
|
-10~+55℃(14-131F)
|
|
|
||
|
Operating Humidity
|
0~90%(non-condensing)
|
|
|
||
|
Face plate Housing
|
Painted Steel
|
|
|
||
|
Function
|
Built-out MOV
|
|
|
||
|
Weight
|
0.6kg
|
|
|
||
Product Advantage
An electric strike is an access control device used for doors. Y131NO/NC type is with short faceplate. Electric strikes are
generally available in two modes: Fail-secure: with current to the strike will cause it to unlock. Fail-safe: with current to the
strike will cause it to lock
Detailed Images , OEM/ODM available

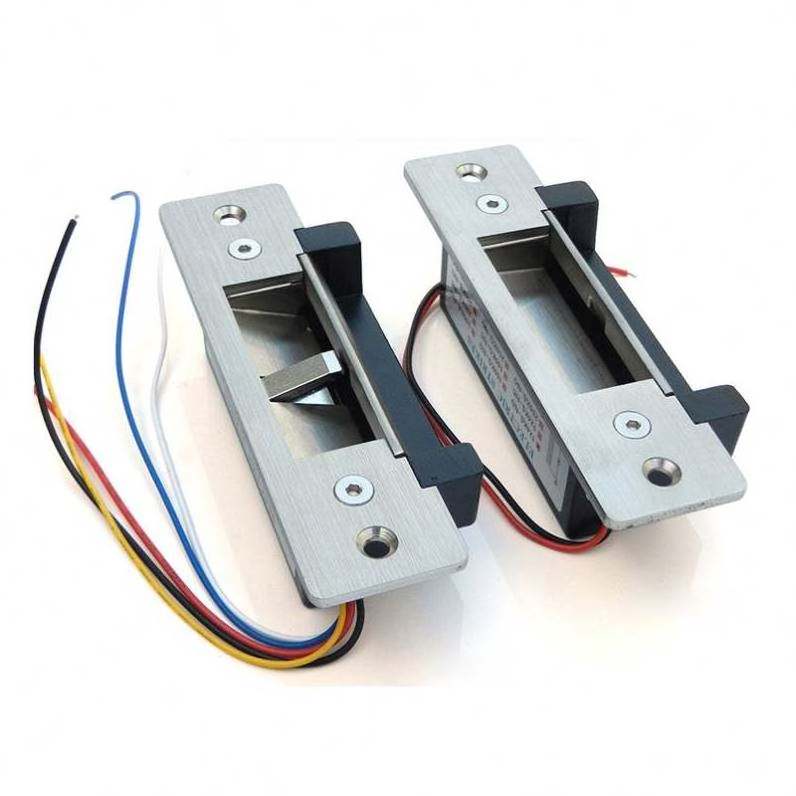

ACM-Y136S NO/NC is the electric strike with long faceplate. It has two modes: A fail safe electric strike needs power to keep it locked. A fail secure electric strike stays locked even without power. Electric strikes come in many varieties.
More Features and Functions for This Stainless Steel Electronic Stripe (NC/NO)
Instalation Diagram
Quality Warranty
- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
Packing & Delivery
Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.
Packaging
Bolt Lock packaging: 1unit per box, 60pcs per carton,
Carton size :
54.5*20*30.5
cm , Gross Weight :18kg. 50 cartons per pallet
