Quick Details
-
Jacket:
-
NBR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huadong
-
Model Number:
-
ESP Cable
-
Size:
-
10,13,16,20,33,42 mm2
-
Product name:
-
Esp Submersible Oil Well Pump Cable
-
Voltage:
-
3KV 4KV 5KV
-
Temperature range:
-
-40℃ to + 232℃
-
Conductor:
-
Bare/Tinned/Solid/Stranded Copper Conductor
-
Insulation:
-
EPR/EPDM
-
Sheath:
-
NBR
-
Armour:
-
Galvanized Steel Armor
-
MOQ:
-
1000 Meters
-
Sample:
-
Availabe
-
Warranty:
-
1 Year
Quick Details
-
Insulation Material:
-
EPDM
-
Application:
-
Industrial
-
Conductor Material:
-
Copper
-
Jacket:
-
NBR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huadong
-
Model Number:
-
ESP Cable
-
Size:
-
10,13,16,20,33,42 mm2
-
Product name:
-
Esp Submersible Oil Well Pump Cable
-
Voltage:
-
3KV 4KV 5KV
-
Temperature range:
-
-40℃ to + 232℃
-
Conductor:
-
Bare/Tinned/Solid/Stranded Copper Conductor
-
Insulation:
-
EPR/EPDM
-
Sheath:
-
NBR
-
Armour:
-
Galvanized Steel Armor
-
MOQ:
-
1000 Meters
-
Sample:
-
Availabe
-
Warranty:
-
1 Year
Product Description

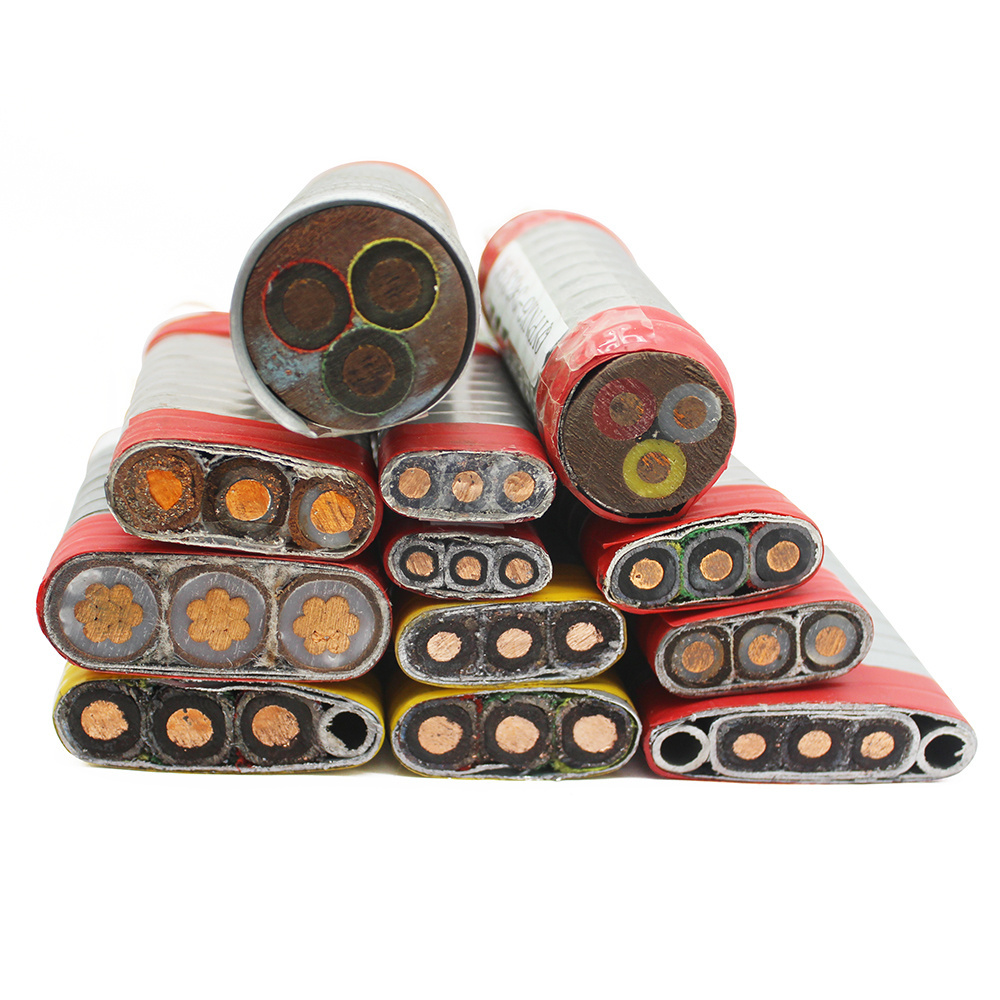

ESP Submersible Oil Pump Cable Introduction
Electrical Submersible Pump cable provide a reliable & cost-effective way to power this critical oil production equipment.
To meet the demands of the operating environment, ESP cable features high temperature, high pressure resistance,high resistance to aggressive chemical environments,handling flexibility,ease of installation and maintenance
Electrical Submersible Pump cable provide a reliable & cost-effective way to power this critical oil production equipment.
To meet the demands of the operating environment, ESP cable features high temperature, high pressure resistance,high resistance to aggressive chemical environments,handling flexibility,ease of installation and maintenance
ESP Submersible Oil Pump Components
* Bare/Tinned/Solid/Stranded copper conductor
* High-dielectric EPDM rubber insulation
* Lead-sheathed conductors for maximum protection against gas and corrosive liquids
* Synthetic tape wrapping to ensure mechanical strength
* Galvanized or corrosion-resistant cable armor, with alloy option for extreme pressures
* Stainless steel chemical injection capillary tube for supplying scale and corrosion inhibitor
Armor Selection
* Galvanized steel for basic corrosion resistance
* Corrosion-resistant steel for added protection
* Highly corrosion-resistant alloy for extremely corrosive environments
* High-dielectric EPDM rubber insulation
* Lead-sheathed conductors for maximum protection against gas and corrosive liquids
* Synthetic tape wrapping to ensure mechanical strength
* Galvanized or corrosion-resistant cable armor, with alloy option for extreme pressures
* Stainless steel chemical injection capillary tube for supplying scale and corrosion inhibitor
Armor Selection
* Galvanized steel for basic corrosion resistance
* Corrosion-resistant steel for added protection
* Highly corrosion-resistant alloy for extremely corrosive environments
Specification
|
Cable type
|
Description
|
Max working temperature ºC
|
Product range (cross section) mm2
|
|
QYPN
|
PP insulated and NBR sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump
|
96
|
10,13,16,20,33,42
|
|
QYPNY
|
PP insulated and NBR sheathed,galvanized steel tape interlocked armoring,round cable for submersible oil pump
|
96
|
10,13,16,20,33,42
|
|
QYEN
|
EPR insulated and NBR sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump
|
140
|
10,13,16,20,33,42
|
|
QYENY
|
EPR insulated and NBR sheathed,galvanized steel tape interlocked armoring,round cable for submersible oil pump
|
140
|
10,13,16,20,33,42
|
|
QYEE
|
EPR insulated and sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump
|
175
|
10,13,16,20,33,42
|
|
QYEEY
|
EPR insulated and sheathed,galvanized steel tape interlocked armoring,round cable for submersible oil pump
|
175
|
10,13,16,20,33,42
|
|
QYEQ
|
EPR insulated and lead sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump
|
204
|
10,13,16,20,33,42
|
|
QYYEQ
|
Polyimide-F46 composite film and EPR insulated, lead sheathed,galvanized steel tape interlocked armoring,cable for submersible oil
pump |
232
|
10,13,16,20,33,42
|
|
QYYEEY
|
Polyimide-F46 composite film and EPR insulated,EPR sheathed, galvanized steel tape interlocked armoring,round cable for submersible oil pump
|
204
|
10,13,16,20,33,42
|
