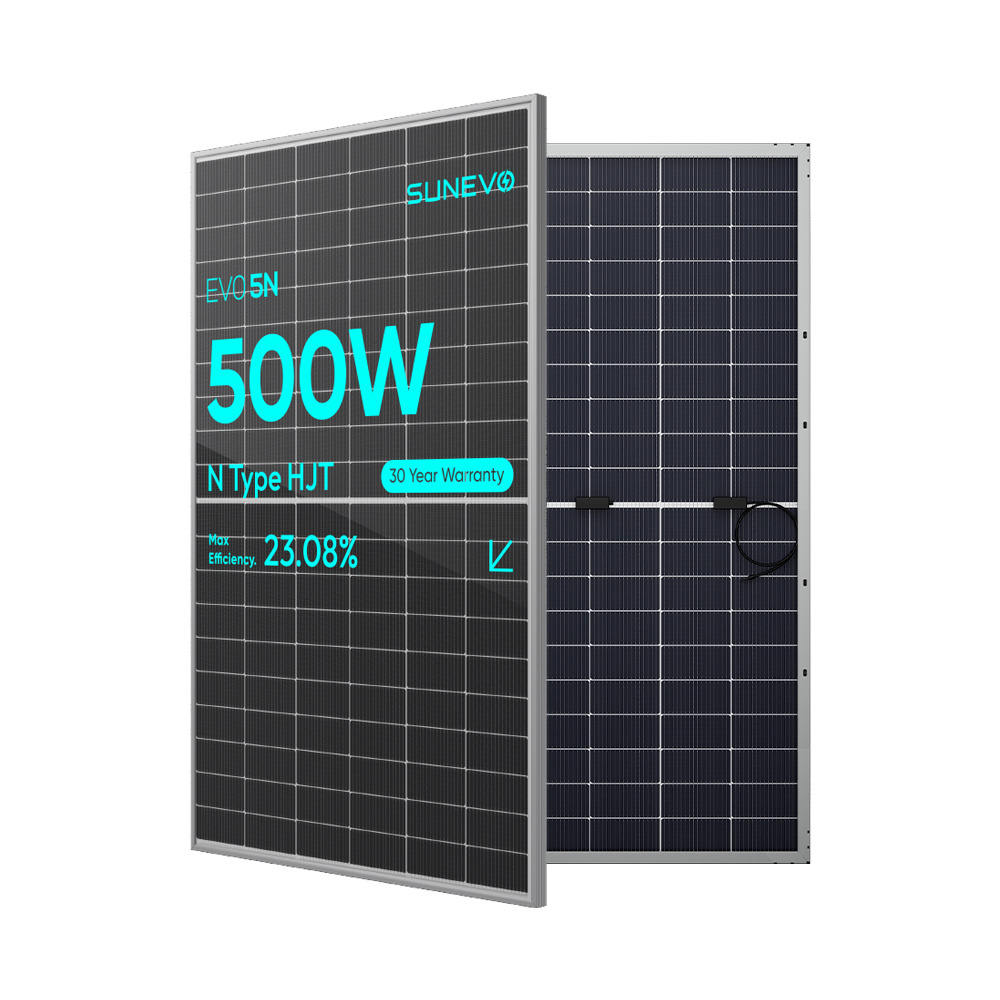

Sunevo HJT Mono Bifacial Double Glass Solar Panels 480W 490W 500W Watts PV High Efficiency Solar Panels

Sunevo HJT Mono Bifacial Double Glass Solar Panels 480W 490W 500W Watts PV High Efficiency Solar Panels

FOB Reference Price: Get Latest Price

≥5000 Pieces

US $0.14

≥50000 Pieces

US $0.13

≥300000 Pieces

US $0.12

≥1500000 Pieces

US $0.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 25 YEARS

Brand Name:: SunEvo

Model Number:: Evo 5N 120cells 480-500W

Place of Origin:: Anhui, China

Panel Dimensions:: 1910 * 1134 * 35mm

Solar Cells:: HJT Mono 182*91mm

No. of Cells:: 120 (6*20)

Dimensions:: 1910 * 1134 * 35mm

Glass:: 2.0mm coated semi-tempered glass

Frame:: Anodized aluminium alloy

Junction Box:: IP68 Rated, 3 Diodes

Cable:: 4mm2, 300mm (+) / 300mm (-) or Customized

Wind/Snow Load:: 2400Pa/5400Pa

Connector:: MC Compatible

Packaging:: 36pcs/box, 720pcs/40'HQ

Quick Details

Cell size:: 182mmx182mm

Type:: PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE

Panel Efficiency:: 23%

Warranty:: 25 YEARS

Brand Name:: SunEvo

Model Number:: Evo 5N 120cells 480-500W

Place of Origin:: Anhui, China

Panel Dimensions:: 1910 * 1134 * 35mm

Solar Cells:: HJT Mono 182*91mm

No. of Cells:: 120 (6*20)

Dimensions:: 1910 * 1134 * 35mm

Glass:: 2.0mm coated semi-tempered glass

Frame:: Anodized aluminium alloy

Junction Box:: IP68 Rated, 3 Diodes

Cable:: 4mm2, 300mm (+) / 300mm (-) or Customized

Wind/Snow Load:: 2400Pa/5400Pa

Connector:: MC Compatible

Packaging:: 36pcs/box, 720pcs/40'HQ

Solar Panel Detail

Module Type: SE5-60HBD	480W	485W	490W	495W	500W
Maximum Power (Pmax/W)	480W	485W	490W	495W	500W
Module Efficiency (%)	22.16	22.39	22.62	22.85	23.08
Optimum Operating Voltage (Vmp/V)	37.50	37.68	37.85	38.03	38.20
Optimum Operating Current (lmp/A)	12.80	12.87	12.95	13.02	13.09
Open Circuit Voltage (Voc/V)	44.93	45.10	45.26	45.42	45.58
Short Circuit Current (lsc/A)	11.13	11.17	11.21	11.25	11.29

430 - 450 Watt

Cells Layout: 108 Half Cells(6×18)

Dimensions: 1722 x 1134 x 30/35mm
Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

480 - 500 Watt

Cells Layout: 120 Half Cells(6×20)
Dimensions: 1910 x 1134 x 30/35mm
Weight: 26.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
