Quick Details
-
Model Number:
-
YZQ-120
-
Product Name:
-
Digital Pressure Gauge Calibrator
-
Material:
-
304 Stainless Steel
-
Application:
-
Pressure gauge calibration
-
Thread:
-
M20*1.5(Customizable)
-
Pressure range:
-
-0.1~0~70Mpa
-
Dial size:
-
100mm
-
Power supply:
-
3V(Battery-powered)
-
MOQ:
-
1 Set
-
Display:
-
LCD Display
-
Feature:
-
5-digit Unit
Quick Details
-
Warranty:
-
2 Years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
XINYIYB
-
Model Number:
-
YZQ-120
-
Product Name:
-
Digital Pressure Gauge Calibrator
-
Material:
-
304 Stainless Steel
-
Application:
-
Pressure gauge calibration
-
Thread:
-
M20*1.5(Customizable)
-
Pressure range:
-
-0.1~0~70Mpa
-
Dial size:
-
100mm
-
Power supply:
-
3V(Battery-powered)
-
MOQ:
-
1 Set
-
Display:
-
LCD Display
-
Feature:
-
5-digit Unit
Product Description

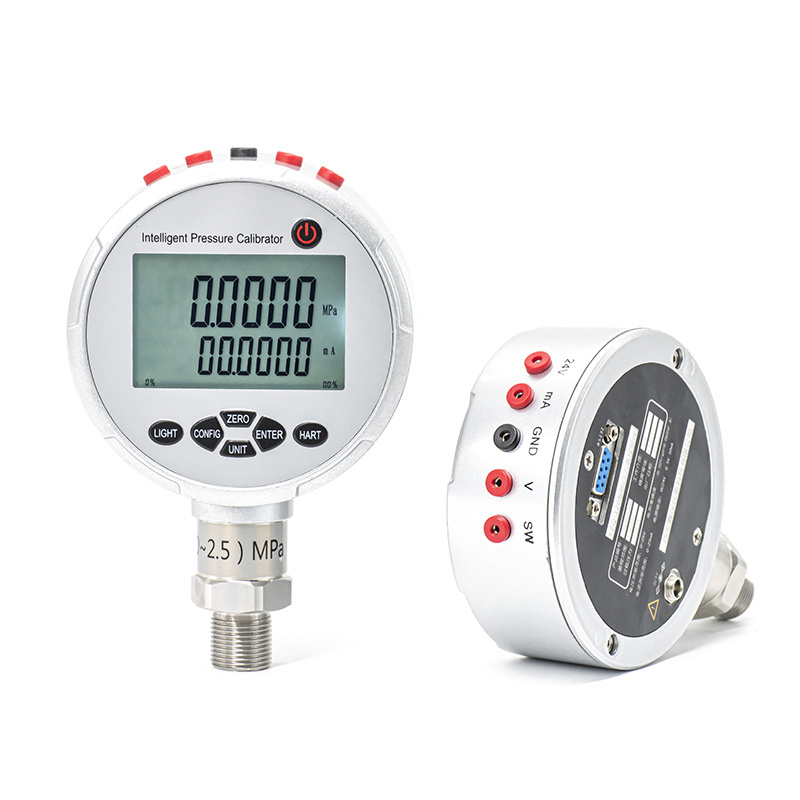

Intelligent pressure calibrator
The YZQ-120 intelligent pressure calibrator is a single-range instrument with full-range
pressure measurement, high-accuracy DC current, voltage measurement and 24VDC power output functions. It can be used to calibrate ordinary (precision) pressure gauges, pressure transmitters, pressure regulating valves, pressure switches and pressure real-time measurement.
main application:
Check the intelligent pressure (differential pressure) transmitter
Calibration of ordinary pressure (differential pressure) transmitter
Calibration pressure switch
Calibration of precision pressure gauges and general pressure gauges
Features:
High precision and high reliability
Built-in pressure module, and can be connected with intelligent digital pressure module
Two-point calibration, user-friendly operation
Data backup, powerful data error correction function
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar multiple pressure unit switching
Check the intelligent pressure (differential pressure) transmitter
Calibration of ordinary pressure (differential pressure) transmitter
Calibration pressure switch
Calibration of precision pressure gauges and general pressure gauges
Features:
High precision and high reliability
Built-in pressure module, and can be connected with intelligent digital pressure module
Two-point calibration, user-friendly operation
Data backup, powerful data error correction function
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar multiple pressure unit switching
Power supply mode: internal battery power supply or special adapter power supply
Battery working time: about 100 hours, correspondingly shortened when 24V is loaded
Battery charging time: about 3 hours
Pressure port: M20×1.5
Communication interface: RS232
Environment temperature: (-20~70)℃
Temperature compensation: (0~50)℃
Relative humidity: <95%
Atmospheric pressure: (86~106)kPa
Storage temperature: (-40~85)℃
Battery working time: about 100 hours, correspondingly shortened when 24V is loaded
Battery charging time: about 3 hours
Pressure port: M20×1.5
Communication interface: RS232
Environment temperature: (-20~70)℃
Temperature compensation: (0~50)℃
Relative humidity: <95%
Atmospheric pressure: (86~106)kPa
Storage temperature: (-40~85)℃
Specification
|
Measurement function
|
Range
|
Parameters
|
|
Electric current
|
25.0000 mA
|
Accuracy ± (0.02%RD+0.003%FS)
|
|
Voltage
|
25.0000 V
|
Accuracy ± (0.02%RD+0.003%FS)
|
|
switch
|
On/off
|
If the switch has inspection voltage, the voltage range is (1~12)V
|
|
Power Output
|
DC24V±0.5V
|
Maximum output current 50mA, overload protection current 120mA
|
|
Pressure range
|
Accuracy grade①
|
Accuracy grade②
|
Accuracy grade③
|
Medium
|
||||
|
(-100~0)kPa
|
0.02，G
|
0.05，G
|
--
|
④
|
||||
|
(0~16) kPa
|
--
|
0.05，G
|
--
|
④
|
||||
|
(0~25) kPa
|
--
|
0.05，G
|
--
|
④
|
||||
|
(0~40) kPa
|
0.02，G
|
0.05，G
|
--
|
④
|
||||
|
(0~60) kPa
|
0.02，G
|
0.05，G
|
0.1,A
|
④
|
||||
|
(0~100) kPa
|
0.02，G
|
0.05，G
|
0.1,A
|
④
|
||||
|
(0~160) kPa
|
0.02，G
|
0.05，G
|
0.05,A
|
④
|
||||
|
(0~250) kPa
|
0.02，G
|
0.05，G
|
0.05,A
|
④
|
||||
|
(0~400) kPa
|
0.02，G
|
0.05，G
|
0.05,A
|
⑤
|
||||
|
(0~600) kPa
|
0.02，G
|
0.05，G
|
0.05,A
|
⑤
|
||||
|
(0~1) MPa
|
0.02，G
|
0.05，G
|
0.05,A
|
⑤
|
||||
|
(0~1.6) MPa
|
0.02，G
|
0.05，G
|
0.05,A
|
⑤
|
||||
|
(0~2.5) MPa
|
0.02，G
|
0.05，G
|
0.05,A
|
⑤
|
||||
|
(0~4 )MPa
|
0.02，G
|
0.05，G
|
0.05,A
|
⑤
|
||||
|
(0~6) MPa
|
0.02，G
|
0.05，G
|
0.05,A
|
⑤
|
||||
|
(0~10) MPa
|
0.02，SG
|
0.05，SG
|
0.05,A
|
⑤
|
||||
|
(0~16 )MPa
|
0.02，SG
|
0.05，SG
|
0.05,A
|
⑤
|
||||
|
(0~25)MPa
|
0.02，SG
|
0.05，SG
|
0.05,A
|
⑤
|
||||
|
(0~40) MPa
|
0.02，SG
|
0.05，SG
|
0.05,A
|
⑤
|
||||
|
(0~60) MPa
|
0.02，SG
|
0.05，SG
|
0.05,A
|
⑤
|
||||
|
(0~100) MPa
|
--
|
0.1/0.2,SG
|
--
|
⑤
|
||||
|
(0~160) MPa
|
--
|
0.1/0.2,SG
|
--
|
⑤
|
||||
|
(0~250) MPa
|
--
|
0.1/0.2,SG
|
--
|
⑤
|
||||
|
G=gauge pressure; SG=sealed gauge pressure; A=absolute pressure; temperature range to ensure accuracy: ①(20±5)℃, ②,③(0~50)℃; ④
Compared with glass, ceramic, silicon, room temperature Non-corrosive gas compatible with vulcanized silicon rubber, nickel, gold, aluminum and other materials; ⑤liquid, gas or vapor compatible with 316 stainless steel |
|
|
|
|
||||
