Quick Details
-
Brand Name:
-
NEW FELLOW
-
Model Number:
-
NF-A10
-
Material:
-
Stainless Steel, aluminum alloy
-
Type:
-
Ambulance Stretcher
-
N.W:
-
49kg
-
OEM&Design:
-
available
-
Packing size:
-
199*61*42cm
-
Max knee angle:
-
15 deg
-
Load-bearing:
-
180kg
-
Packing:
-
1pc/CTN
-
Certificates:
-
CE;ISO9001/13485
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
NONE
-
Place of Origin:
-
China
-
Brand Name:
-
NEW FELLOW
-
Model Number:
-
NF-A10
-
Material:
-
Stainless Steel, aluminum alloy
-
Type:
-
Ambulance Stretcher
-
N.W:
-
49kg
-
OEM&Design:
-
available
-
Packing size:
-
199*61*42cm
-
Max knee angle:
-
15 deg
-
Load-bearing:
-
180kg
-
Packing:
-
1pc/CTN
-
Certificates:
-
CE;ISO9001/13485

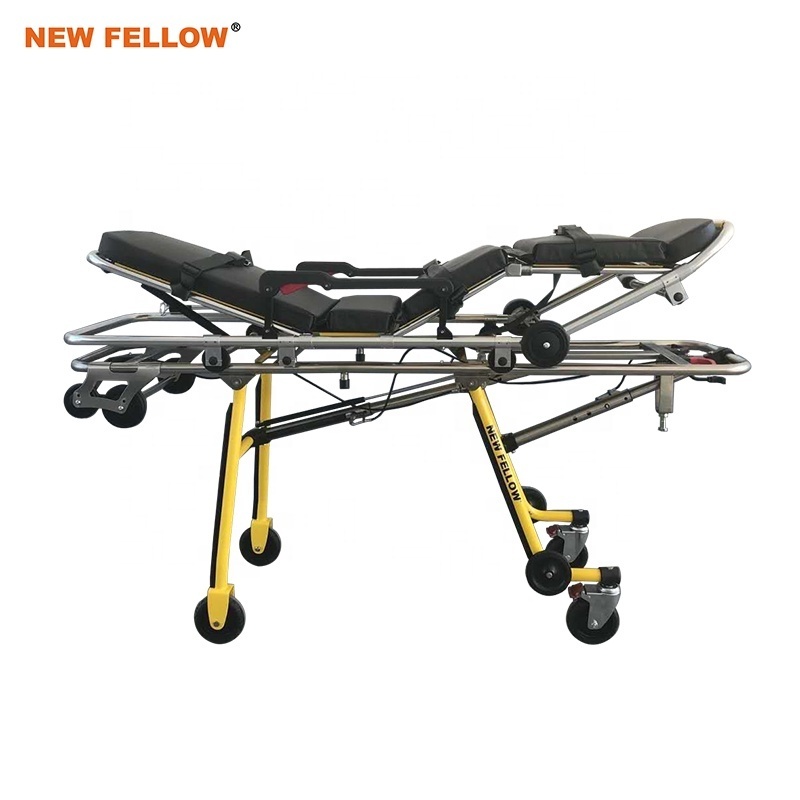

Ambulatory Stretcher
Technical features:
The ambulatory stretcher has a separable stretcher with the main stretcher frame which could be removed from trolley and used as a separate stretcher, easy locking/unlocking system to lock the separable stretcher into the trolley
The separate stretcher with capability to convert into wheel chair
Adjustable height:65-85cm
The backrest can be adjusted from 0 - 65 deg by gas spring
Swing-down side rails to protect patient when transfer
The mechanical legs are controlled by the handles in both sides
Only one person can slide the stretcher on to the ambulance
The ambulatory stretcher can be locked by the fixing device when it is in the ambulance
The ambulatory stretcher is made of high-strength aluminum alloy.
φ 150mm wide rubber castors
Mainly used for ambulance, hospitals, emergency centers
Accessories:
Waterproof seamless welding PVC mattress(5cm thickness foam)
3pcs belts for chest, hip and knee
Fixing device L01-1
Optional:
IV pole I01
Pillow
Oxygen holder H02
|
Model |
High position |
Low position |
Max angle of the back |
Max angle of the knee part |
N.W |
Load Bearing |
Packing |
||
|
Quantity |
Size(L*W*H) |
G.W |
|||||||
|
NF-A10 |
195×55×85cm |
195×55×40cm |
65° |
15° |
49kg |
180kg |
1 |
199×61×42cm |
56kg |
Product : If the ambulatory stretcher is damaged under normal use conditions, without human factors, from the date of purchase, we supply two years warranty and lifetime service. During the warranty period, if the product has any quality problems, our company will provide free repair or replacement service.
