ZAY7045G TTMC Gear Head Drilling cum Milling Machine, Tilt Head Milling Machine, Bench Type Milling Machine for Home Use

FOB Reference Price: Get Latest Price

≥1 Sets

US $2090

≥5 Sets

US $1790

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Drilling Speed:: 80-1250 rpm @50 Hz

Place of Origin:: Shandong, China

Brand Name:: TTMC

Model Number:: ZAY7045G

Voltage:: According to customer request

Dimension(L*W*H):: 770x880x1160 mm

Power (kW):: 1.5

Weight (KG):: 318 KG

Marketing Type:: Bench type milling machine for home use

Item No.:: 221108

Model:: ZAY7045G

Table size:: 800x240 mm

Drilling capacity:: 45 mm

Distance from spindle nose to table:: 440 mm

Spindle travel:: 130 mm

Spindle taper:: MT4 or R8

Step of spindle speed:: 6

Quick Details

type:: Column Drilling Machine

Max. Drilling Dia. (mm):: 45

Range of Spindle Speed(r.p.m):: 80 - 1250 r.p.m

Drilling Speed:: 80-1250 rpm @50 Hz

Place of Origin:: Shandong, China

Brand Name:: TTMC

Model Number:: ZAY7045G

Voltage:: According to customer request

Dimension(L*W*H):: 770x880x1160 mm

Power (kW):: 1.5

Weight (KG):: 318 KG

Marketing Type:: Bench type milling machine for home use

Item No.:: 221108

Model:: ZAY7045G

Table size:: 800x240 mm

Drilling capacity:: 45 mm

Distance from spindle nose to table:: 440 mm

Spindle travel:: 130 mm

Spindle taper:: MT4 or R8

Step of spindle speed:: 6

Product Overview

TTMC Bench Type Gear Head Drilling Milling Machine

The ability to drill and mill with one machine save time and money and is perfect for maintenance departments, machine, welding, job, or even home shops. An optional stand is also available, if bech space is at a premium

FEATURES AT A GLANCE

Gear Head Drilling Milling Machine

Milling head rotates 360º on column
Extra large 820 x 240mm ground work table with T-slots

Fine feed hand wheel operating quill feed Forward and reverse on/off switch with emergency stop 3MT spindle Adjustable table and drill length stops

Spindle lock for quill
Table locks on both axis

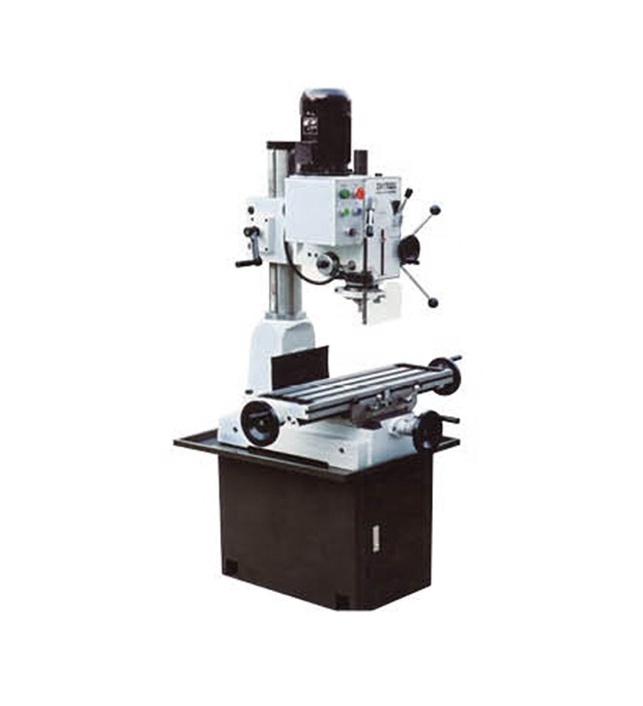

** the left picture with optional stand and tray

Standard Accessories

* Allen wrench,
* Wedge
*Wrenches,
*Drill chuck arbor,
*Screw,
*Draw bar and washers.

Optional Accessories

*Machine stand and chip tray
*Workng lamp;
*Coolant system;
* Drill chuck;
*Milling cutter holder;
*Mill chuck;
*Power feed attachment;
*Auto-tapping system;
*Parallel vice;
*Clamping kits(58pcs);
*Rotary table

PRODUCT SPECIFICATIONS

Bench Type Drilling Milling Machine

Item No.	221105	221106	221107	221108
Model	ZAY7020G	ZAY7032G	ZAY7040G	ZAY7045G
Drilling capacity	20 mm	32 mm	40 mm	45 mm
Face milling capacity	63 mm	63 mm	80 mm	80 mm
End milling capacity	20 mm	20 mm	32 mm	32 mm
Distance from spindle nose to table	439 mm	440 mm	440 mm	440 mm
Distance from spindle nose to column	179.5 mm	272.5 mm	272.5 mm	272.5 mm
Spindle travel	85 mm	130 mm	130 mm	130 mm
Spindle taper	MT3 or R8	MT3 or R8	MT4 or R8	MT4 or R8
Step of spindle speed	12	6	6	6
Speed range @50HZ	95-1420 rpm	80-1250 rpm	80-1250 rpm	80-1250 rpm
Speed range @60HZ	115-1700 rpm	95-1500 rpm	95-1500 rpm	95-1500 rpm
Swivel angel of headstock	360°	360°	360°	360°
Perpendicularly	±90°	±90°	±90°	±90°
Table size	520x160 mm	800x240 mm	800x240 mm	800x240 mm
Table travel (X, Y)	290x140 mm	500x175 mm	500x175 mm	500x175 mm
Motor power	0.37 kW	0.75 kW	1.1 kW	1.5 kW
Packing size	68x75x100 cm	77x88x116 cm	77x88x116 cm	77x88x116 cm
N.W./G.W.	130/190 kg	315/365 kg	315/365 kg	318/368 kg
