Quick Details
-
Connection:
-
CCS2, CCS1, Chademo
-
Voltage:
-
400VAC±15%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Piwin
-
Model Number:
-
PEVC3106E
-
Design Style:
-
outdoor
-
Product Name:
-
DC Fast EV Charging Station
-
Connector Type:
-
CCS Combo 2
-
Wire length:
-
5 meters (Custom)
-
Protection level:
-
IP54
-
Payment Method:
-
RFID Card
-
Communication Protocol:
-
OCPP 1.6J
-
Operating Noise Level:
-
≤60dBA
-
Enclosure:
-
Galvanized steel
-
Output Power Rating:
-
120KW
-
HMI:
-
7 inch touch screen
Quick Details
-
Function:
-
screen display, Voltage Monitoring
-
Car Fitment:
-
BYD, Tesla, bmw
-
Type:
-
ev charger, EV Charger
-
Connection:
-
CCS2, CCS1, Chademo
-
Voltage:
-
400VAC±15%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Piwin
-
Model Number:
-
PEVC3106E
-
Design Style:
-
outdoor
-
Product Name:
-
DC Fast EV Charging Station
-
Connector Type:
-
CCS Combo 2
-
Wire length:
-
5 meters (Custom)
-
Protection level:
-
IP54
-
Payment Method:
-
RFID Card
-
Communication Protocol:
-
OCPP 1.6J
-
Operating Noise Level:
-
≤60dBA
-
Enclosure:
-
Galvanized steel
-
Output Power Rating:
-
120KW
-
HMI:
-
7 inch touch screen

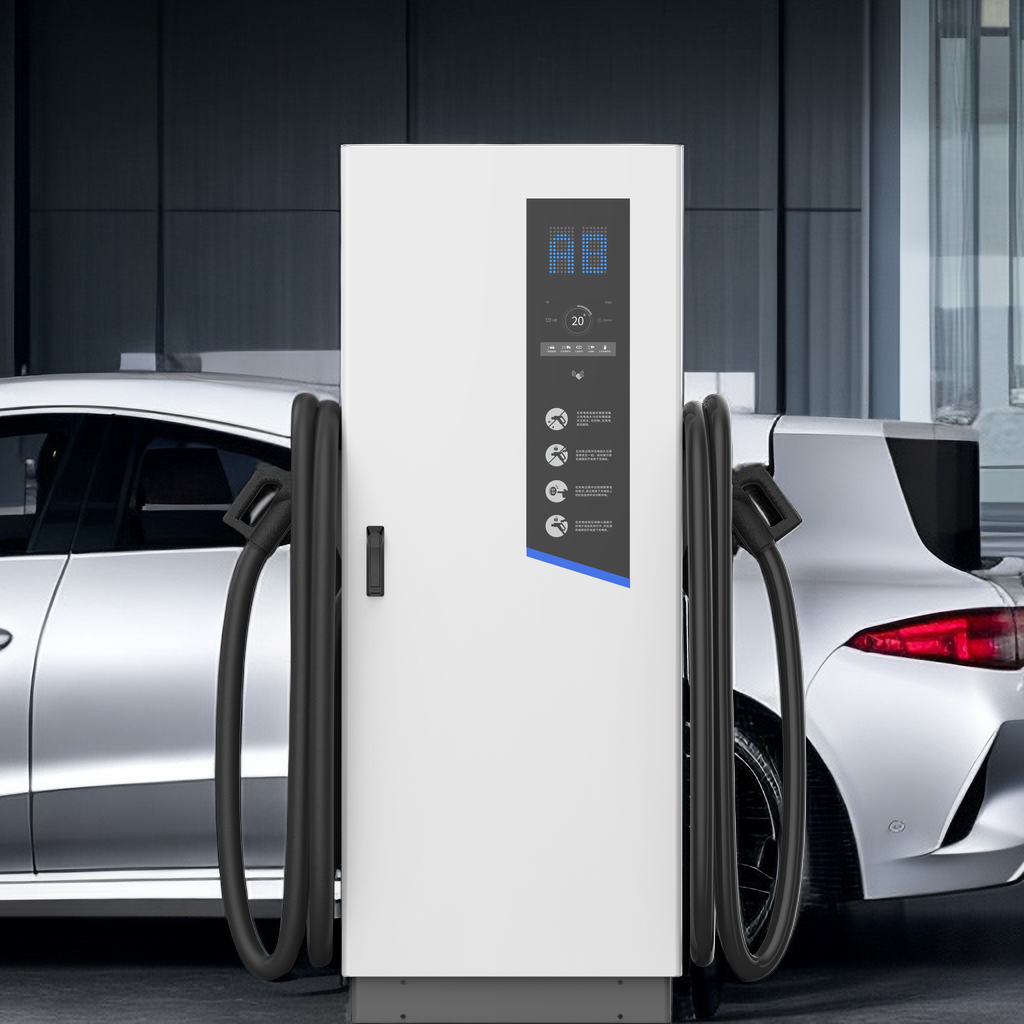

PEVC3107
E Fast DC EV Charger Station
PEVC3107E
is a basic DC Fast EV charger. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors.
Product Overview
|
Power Suppply
|
3P+N+PE
|
|
Rated Voltage
|
400VAC±15%(50/60Hz)
|
|
THDi
|
≤5%
|
|
Efficiency
|
≥95%
|
|
Power Factor
|
≥0.98
|
|
Connector Type
|
CCS Combo 2
|
|
Output Voltage
|
150-1000V
|
|
Maximum Output Current
|
250A
|
|
Output Power Rating
|
120kW(Max)
|
|
Output Voltage Accuracy
|
≤0.5%
|
|
Output Current Accuracy
|
≤±5%
|
|
HMI
|
7-Inch touch screen
|
|
Charging Method
|
RFID Card
|
|
Cable Length
|
Cellular modem:GSM/4G (optional）
LAN:10/100 Base-T Ethernet
|
|
Communication Protocol
|
OCPP 1.6J
|
|
Operating Noise Level
|
≤60dBA
|
|
Ingress Protection(IP/IK rating)
|
IP54/IK08
|
|
Power Meter
|
Accuracy Class 1 energy meter
|
|
Enclosure
|
Galvanized steel
|
|
Product Dimension
|
700 x 550 x 1800mm(W x D x H)
|
|
Package Dimension
|
950 x 720 x 1950mm(W x D x H)
|
|
Protection
|
Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection
|
|
Certification Standard
|
EN/IEC 61851-1、EN/IEC 61851-23、EN/IEC 61851-24、EN/IEC62196-1、EN/IEC62196-3
|
|
Operating Temperature
|
-35℃ to +50℃
|
|
Storage Temperature
|
–40°C to +75°C
|
|
Maximum Installation Height
|
≤2000m
|
|
Operating Humidity
|
5%–95% RH
|
I
P54, Strong and Durable:
Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car.
WARRANTY
— 24-month warranty and life-time hassle-free technical support.
