Quick Details
-
Model Number:
-
LYK38G-G550
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
230/400v
-
Speed:
-
1500rpm
-
Frequency:
-
50hz
-
Rated power:
-
550kw
-
Engine form:
-
60°,V type,4 stroke
-
Cooling method:
-
water cooling
-
Intake method:
-
Turbocharged,water-air intercooling
-
Number of cylinders:
-
12
-
Bore X Stroke:
-
159*159
-
Displacement:
-
37.7L
-
Compression ratio:
-
11:1
-
Exhaust method:
-
≤580℃
-
Certification:
-
CE,ISO
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
EAPP
-
Model Number:
-
LYK38G-G550
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
230/400v
-
Speed:
-
1500rpm
-
Frequency:
-
50hz
-
Rated power:
-
550kw
-
Engine form:
-
60°,V type,4 stroke
-
Cooling method:
-
water cooling
-
Intake method:
-
Turbocharged,water-air intercooling
-
Number of cylinders:
-
12
-
Bore X Stroke:
-
159*159
-
Displacement:
-
37.7L
-
Compression ratio:
-
11:1
-
Exhaust method:
-
≤580℃
-
Certification:
-
CE,ISO

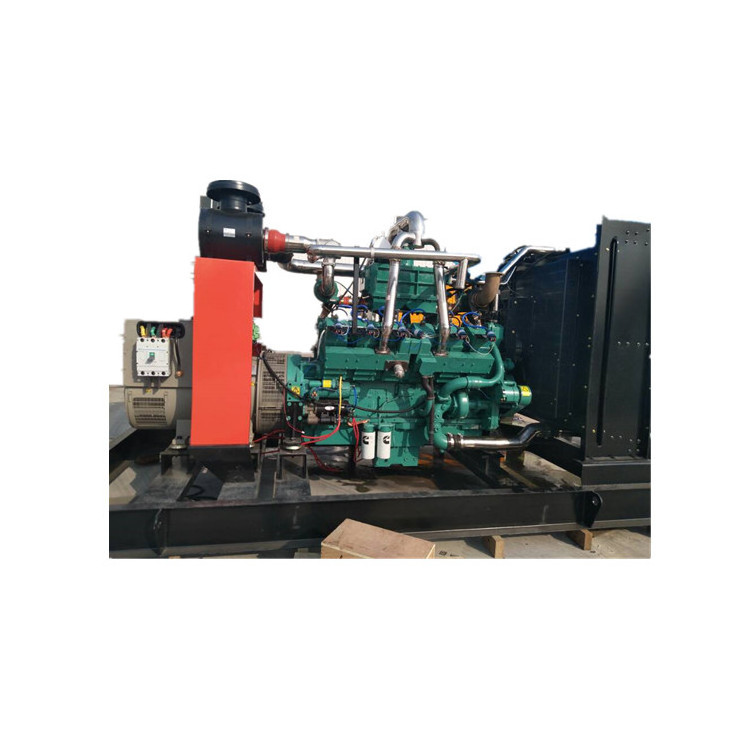

High-efficiency 550 kW natural gas generator set biomass generator biogas generator
Customized gas engine power range: 7KW to 1000KW.
High-efficiency 550 kW natural gas generator set biomass generator biogas generator
|
Brand name
|
R&D Power
|
|
Genset Model
|
LYNGMS500KW
|
|
Rated power
|
500kw/625kva
|
|
Frequency
|
50hz/60hz
|
|
Rated speed
|
1500rpm/1800rpm
|
|
Voltage
|
400v
|
|
Wiring and phase
|
3phase 4 wiring
|
|
Biogas engine model
|
LYK38G-G550
|
|
Displacement
|
37.7L
|
|
Compression ratio
|
11:1
|
|
Bore*stroke
|
159*159mm
|
|
100% Load Gas Consumption
|
125NM3/H
|
|
E-Throttle(Control supply of gas flow)
|
BOSCH German Brand
|
|
Mixer(Mix gas and air for combustion)
|
IMPCO USA Brand
|
|
Regulator (Regulate the pressure of gas supply)
|
MADAS Italian Brand
|
|
Genset size
|
6000*2400*2800mm
|
|
Gross weight
|
11100kg
|
Warm note:
1.Gas source: biogas, methane(CH4) concentration ≥50%.
2.Natural gas engine special lubrication oil is needed.
3. Customized requirement for above is available upon request.
4. Supplier is responsible for quality failure parts in one year or 2000hrs, without any other incidental expenses. If need to extend warrenty to 5000hrs, additional cost is needed.
Schematic
Optional Choices
1. Silent Canopy
2. Heat Recovery Device
3. Biogas Purification equipment
Silent Canopy(68dB @ 7 meters)
Heat Recovery
ATS System
Automatic transfer switching equipment
Control and Paralleling
QUALITY CONTROL
Each individual gas engine will be tested in our lab to ensure its high performance. The test includes power, gas consumption, intake system, etc. We can provide test video and test report if customer requested.
CASE STUDY
EAPP is Chinese leading manufacturer for gas turbine power turbo electric engine power from 7KW to 1000KW, including natural gas engine, CNG/LNG/LPG/methane engine, bio gas engine, biomass, methane engine, natural gas generator, and biogas/biomass generator etc. As an important partner of power unit, our company has absolute advantage in gas power engine market. With the massive engine technical data as a support, we can provide customers with the overall power unit solution plan..
1. What is the warranty ?
The standard warranty is 12months or 1000 running hours whichever occured first.
Any damaged parts during warranty period can be shipped free by express to you.
And we will offer life time technological support and trouble shooting service.
2. Which fields or what's the application of your natural gas biogas generator?
According to different power, the natural gas biogas generato can be used in residental, industrial, marine, generating, power plant, etc. If any special application project, welcome to contact us firstly.
3. What's the power range you can make for gas power generator?
7-1000KW is normal choice for customers. For other customized power, welcome to contact us.
4. Will you test your generators or engines before shipped?
Yes, every product will be tested individually in our test lab and test report and test vidoe can be provided.
5. What's the lead time and delivery time for your gas power generator?
Usually 15-35 days for lead time. Delivery time is according to your choice of shipping method.
6. What's the payment method do you accept?
We accept Alibaba trade assurance, west union, TT, etc. If you have speical requirement, welcome to contact us.
7. Are you manufacturer?
Yes, we are both manufacturer and foreign trade company, cooperating with many famous brand suppliers. Welcome to visit our factory.
