- Product Details
- {{item.text}}
Quick Details
-
Power:
-
18.5-900 kw
-
Dimension(L*W*H):
-
Depends on model
-
Weight:
-
47.5-1300 t
-
Keywords:
-
Rotary kiln electric
-
After-sales Service Provided:
-
Overseas service center available, Field installation, commissioning and training, Video technical support
-
Application:
-
Mining, construction, chemical
-
Raw material:
-
Cement,limestone, bauxite,zinc oxide, magnesia
-
Capacity:
-
1-350 tph
-
Color:
-
Customized
-
MOQ:
-
1
-
Usage:
-
Calcining Production Line
-
Spare parts:
-
LifeLong Time
-
Fuel:
-
Coal Gas Heavy Oil
-
Certification:
-
ISO,BV,CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongke
-
Voltage:
-
380V/220V
-
Power:
-
18.5-900 kw
-
Dimension(L*W*H):
-
Depends on model
-
Weight:
-
47.5-1300 t
-
Keywords:
-
Rotary kiln electric
-
After-sales Service Provided:
-
Overseas service center available, Field installation, commissioning and training, Video technical support
-
Application:
-
Mining, construction, chemical
-
Raw material:
-
Cement,limestone, bauxite,zinc oxide, magnesia
-
Capacity:
-
1-350 tph
-
Color:
-
Customized
-
MOQ:
-
1
-
Usage:
-
Calcining Production Line
-
Spare parts:
-
LifeLong Time
-
Fuel:
-
Coal Gas Heavy Oil
-
Certification:
-
ISO,BV,CE
China Factory Electrical Heating Rotary Kiln Price Rotary Kiln Electric Supplier
WhatsApp/ Wechat:86-17698021703
1.Introduction of Rotary Kiln Electric
Rotary kiln electric is the main equipment for claiming cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc.
Rotary kiln electric is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.
Rotary kiln electric has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.
Through the technical renovations, the rotary kiln claiming system equipment has adopted the advanced hydraulic thrust roller device,and the other national advanced technologies.
2.Features of Rotary Kiln Electric
Rotary kiln electric is used for calcinating high standard cement in cement factories, but also widely used in metallurgy, construction and chemical industry.
The rotary kiln produced by our factory has strong structure, smooth operation, and high quality products. Besides, we provide our customers with advanced and efficient shaft preheater and five stage cyclone preheater.
3.Application of Rotary Kiln Electric
Rotary kiln electric belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry; for calcimine of calotte and aluminum hydroxide in aluminum manufacturer; for claiming of chrome sand ore and chrome powder ore in chemical plant.
4.Technical Parameters of Rotary Kiln Electric
|
Product specifications (m) |
Diameter (m) |
Kiln dimensions Length (m) |
Obliquity (%) |
Capacity (t/d) |
Rotation speed (r/min) |
Motor power (kw) |
Total weight (t) |
|
Φ2.5*40 |
2.5 |
40 |
3.5 |
180 |
0.44-2.44 |
55 |
149.61 |
|
Φ2.5*50 |
2.5 |
50 |
3 |
200 |
0.62-1.86 |
55 |
187.37 |
|
Φ2.7*42 |
2.7 |
42 |
3.5 |
320 |
0.10-1.52 |
55 |
198.5 |
|
Φ2.8*44 |
2.8 |
44 |
3.5 |
400 |
0.437-2.18 |
55 |
201.58 |
|
Φ3.0*45 |
3 |
45 |
3.5 |
500 |
0.5-2.47 |
75 |
210.94 |
|
Φ3.0*60 |
3 |
60 |
3.5 |
300 |
0.3-2 |
100 |
310 |
|
Φ3.2*50 |
3.2 |
50 |
4 |
1000 |
0.6-3 |
125 |
278 |
|
Φ3.3*52 |
3.3 |
52 |
3.5 |
1300 |
0.266-2.66 |
125 |
283 |
|
Φ3.5*54 |
3.5 |
54 |
3.5 |
1500 |
0.55-3.4 |
220 |
363 |
|
Φ3.6*70 |
3.6 |
70 |
3.5 |
1800 |
0.25-1.25 |
125 |
419 |
|
Φ4.0*60 |
4 |
60 |
3.5 |
2500 |
0.396-3.96 |
315 |
510 |
|
Φ4.2*60 |
4.2 |
60 |
4 |
2750 |
0.4-3.98 |
375 |
583 |
|
Φ4.3*60 |
4.3 |
60 |
3.5 |
3200 |
0.396-3.96 |
375 |
633 |
|
Φ4.5*66 |
4.5 |
66 |
3.5 |
4000 |
0.41-4.1 |
560 |
710.4 |
|
Φ4.7*74 |
4.7 |
74 |
4 |
4500 |
0.35-4 |
630 |
849 |
|
Φ4.8*74 |
4.8 |
74 |
4 |
5000 |
0.396-3.96 |
630 |
899 |
|
Φ5.0*74 |
5 |
74 |
4 |
6000 |
0.35-4 |
710 |
944 |
|
Φ5.6*87 |
5.6 |
87 |
4 |
8000 |
Max4.23 |
800 |
1265 |
|
Φ6.0*95 |
6 |
95 |
4 |
10000 |
Max5 |
950*2 |
1659 |

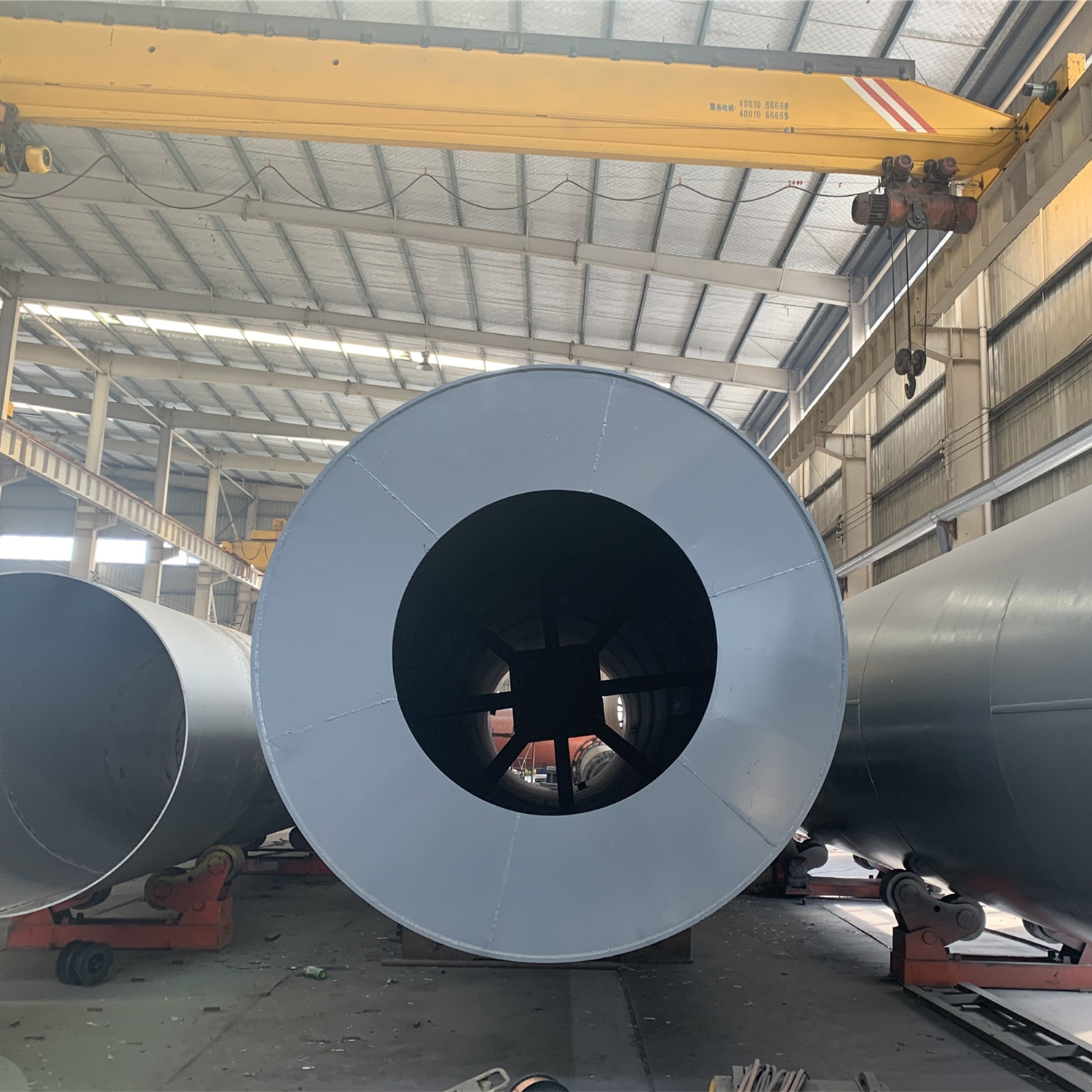

5.Our factory delivery of Rotary Kiln Electric
6.Working Sites for Rotary Kiln Electric
