Quick Details
-
Brand Name:
-
XJ
-
Model Number:
-
XTM35SC
-
Accuracy Class:
-
1
-
Output Voltage:
-
110V/220V
-
Operating Temperature:
-
-20°C ~ +80°C
-
Dimensions:
-
37*66*79mm
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
5(80)A 50/60Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XJ
-
Model Number:
-
XTM35SC
-
Accuracy Class:
-
1
-
Output Voltage:
-
110V/220V
-
Operating Temperature:
-
-20°C ~ +80°C
-
Dimensions:
-
37*66*79mm

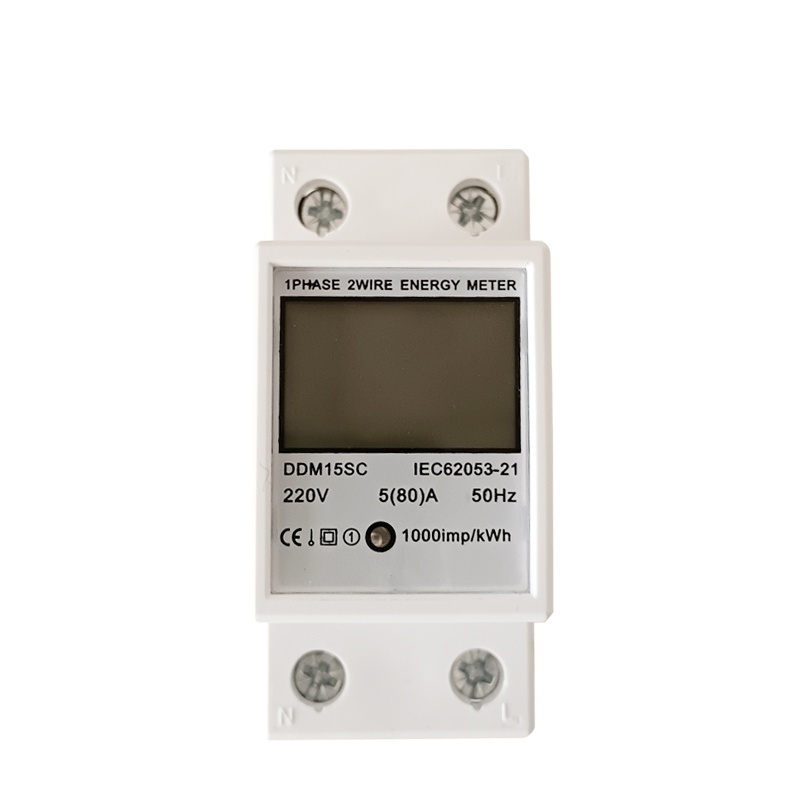

Product Description
It has independent intellectual property. Its performance fully complies with the relevant technical requirements of GB/T17215.321-2008 (Level 1 and Level 2 Static AC Active Energy Meters). It can accurately and directly measure the active energy consumption of loads in a 50Hz or 60Hz single-phase AC power grid. The meter can be selected with a meter and LCD display of active energy.
It has the following characteristics: good reliability, small size, light weight, beautiful appearance, convenient installation, etc.
At present, this form has obtained the patent certificate issued by the China National Intellectual Property Administration of China. Patent number 2012 3 0473501.3, patents from other countries are under review.
Function and Characteristics
XTM35 series energy meter: installed on a 35mm standard rail, in accordance with DIN EN50022 standard.
XTM35 series electric energy meter: Two pole width (module 17.5mm), in accordance with DIN43880 standard.
XTM35 series energy meters: standard configuration with 5+1 bit (99999.1) meter or 5+1 bit LCD (99999.1) display.
XTM35 series energy meters: standard configuration with passive energy pulse output (polarity), convenient for connection with various AMR systems, compliant with IEC 62053-21 and DIN43864 standards.
XTM35 series energy meter: Dual color LED indicator light indicating power status (green) and energy pulse signal (red).
XTM35 series energy meter: automatically detects the direction of load current flow and indicates it (when only the red energy pulse signal is working, if there is no green indicating power supply, it means that the direction of load current flow is opposite).
XTM35 series energy meter: can measure active energy, voltage, current, power, power factor, frequency and other data.
XTM35 series electric energy meter: measures the active energy consumption of single-phase and two wires in a single direction. It is independent of the direction of load current flow. Its performance fully complies with the GB/T17215.321-2008 standard.
XTM35 series energy meters: direct connection, standard configuration with S-type wiring.
XTM35 series energy meters: equipped with extended terminal covers and short terminal covers to protect electrical safety.
Specification
|
Model
|
XTM35SC
|
|
Rated Voltage
|
120V/230V
|
|
Rated Current
|
2.5(10),5(20), 10(40),15(60), 20(80),30(100),
|
|
Accuracy Class
|
1
|
|
Starting Current
|
0.04%
|
|
Insulation Performance
|
Power frequency AC voltage of 2kV for 1 minute, impulse voltage of 6kV
|
|
Port
|
Pulse
|
|
Communication Protocol
|
None
|
|
Display Type
|
LCD
|
|
Active Power
|
Yes
|
|
Voltage
|
Yes
|
|
Current
|
Yes
|
|
Power
|
Yes
|
|
Power Factor
|
None
|
|
Frequency
|
None
|
|
Backlight Source
|
Choose
|
|
Reset
|
None
|
|
Anti flaming
|
Self - extinguish
|
|
Color
|
White
|
|
Installation method
|
35mm Guide Rail Type
|
|
Volume
|
37mmx66mmx79mm
|
