Quick Details
-
Application:
-
Apartment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S4A
-
Model Number:
-
ED100
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
Swing Openers
-
Application:
-
Apartment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S4A
-
Model Number:
-
ED100
Automatic Door Operators Swing Sliding Garage Gate 220V Push Arm Door Opener Electric Door Closer with Microcomputer Controller
| Question | What is an Automatic Door Operators? | |
| S4A Answer |
S4A Swing-Door Operator or Swing-door Opener or Automatic Swing-Door Operator or Swing Gate Operator is a device that operates a swing door for pedestrian use.
It opens or helps open the door automatically,waits,then closes it. Automated swing doors are suitable for both indoor and outdoor doors. They can be designed with or without a threshold and can meet a number of requirements. They make excellent emergency doors – with break-out features and smoke and fire control features and they can have anti-burglary protection for added security. |
|

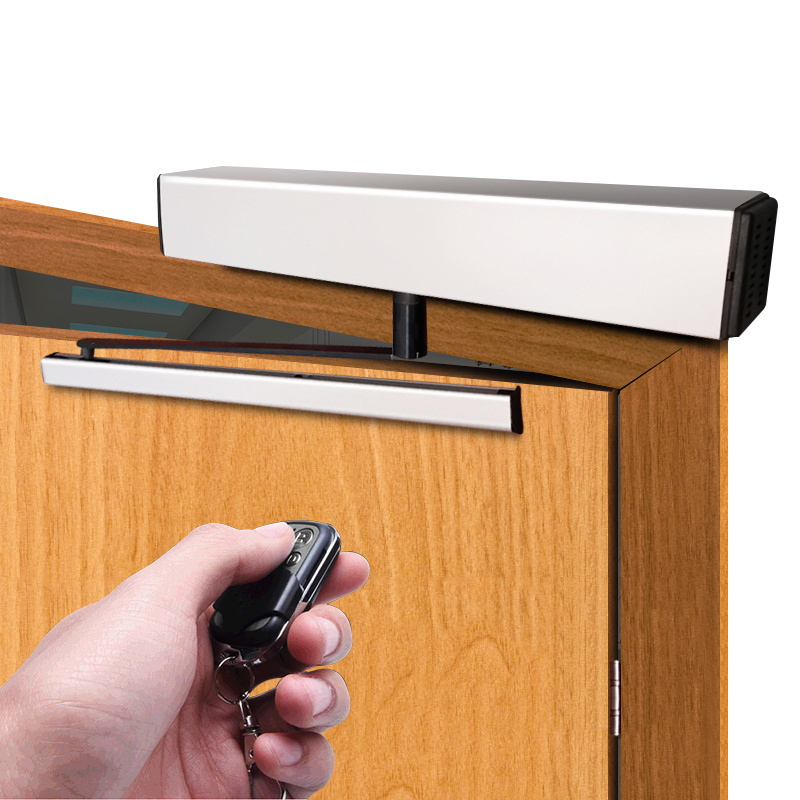

S4A ED100 Automatic Swing Door Opener is low energy automatic with a swing door opener that is activated by push buttons.
This system operates in both automatic and manual modes,
it makes the electronic door opener and closer highly adapt to voltage fluctuations between 110 or 220VAC ±10%,
More energy-saving and durable than an ordinary single input voltage.
The simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.
It supports 2ways working mode:
1. standalone access controller, connect it to power, power on, then we could open it by remote control and close it automatically
2. Connect it with RFID door access control systems, Enter by Face, RFID, Pincode or Finger
and exit by EB-16 or EB-17 Non-touch button or M-204T Microwave Sensor.
Main Features:
1. An advanced and reliable microprocessor controller is applied.
2. Brushless motor with self-locking, a long life span, and energy conservation.
3. Opening & Closing Speed adjustable.
4. Automatic/Lock/One Way/Half-open/Hold-open status can be set by remote key.
5. Opening and closing smooth with low noise.
6. Safety interlock and electric lock function.
7. Support multiple access control systems and Fire Alarm System
8. Auto-Reverse
| Product Parameter | Parameter Description |
| S4A Model | ED100 |
| Product Name | Automatic Swing Door Operators |
| Power supply | 220V / 110V |
| An operator with arm | Open Inside ( PULL ); Open Outside ( PUSH ) |
| Opening time | 3~7s / 90° |
| Opening and holding time | 1-30s |
| Temperature | -20 ℃ ~55 ℃ |
| Protection level | IP12D |
| Product volume | 515x95x90mm |
| Unit Weight | 7.7KG |
| Standard Package | 2PCS/carton |
| Carton Weight | 15.5KG |
| Carton Size | 65*33*23(cm) |
| Question | What is a swing door? | |
| S4A Answer |
Most doors are swing doors – just think of your home, the doors to your bedroom, bathroom and kitchen are all, most probably, swing doors. Any entrance with two hinges that opens either inwards or outwards is a swing door.
Swing doors are always framed, but can be made from a variety of different materials, from wood to aluminum to plastic to glass |
|
| Question | How does a swing door work? | |
| S4A Answer | Swinging doors, also commonly known as hinged doors, operate by turning on hinges installed on a side jamb. When pulled or pushed, a swing door pivots around the jamb and the threshold. ... Swinging doors, also commonly known as hinged doors, operate by turning on hinges installed on a side jamb. | |
| Question | How much holding force does it support? | |
| S4A Answer | 80-100kg is most ideal,200KG is max | |
| Question | Could we set time delay on ED100 Swing Operator? | |
| S4A Answer | yes,we can set 1-30seconds. | |
| Question | could we change the push arm and pull arm by ourselves? | |
| S4A Answer | yes,if you are not sure right now,you can buy extra pull or push arm and changing by yourself in case. | |
| Question | Could we connect magnetic lock,strike lock or dropbolt lock etc to ED100 Door Operator? | |
| S4A Answer | Yes,we can connect any locks,no matter NC or NO types | |
| Question | What is the door width suitable? | |
| S4A Answer | 1 ~ 1.2 meters is best,max is 2meters for single door | |
| Question | What is the weight for each ED100 kit? | |
| S4A Answer |
Standard package is 2 pcs/CTS, Weight is 15.5KG, Package Dimension: 65*30*20cm Unit price is 8KG |
|
| Question | Does the shipment include battery? | |
| S4A Answer | Yes,the remote control build-in battery,but we can take out if shipment has extra charge. | |
| Question | Could we use on glass door? | |
| S4A Answer | Yes,you will need to advise us to configure UB-600 u bracket for you before placing order | |
| Question | Power supply is 200V-240V,but i use 110V-120V | |
| S4A Answer | Factory default support 220V, also can customized 110V without extra charge | |
| Question | Where shall I install micro-wave sensor | |
| S4A Answer | We suggest installing on the top of of the door or on the ceiling. | |
| Question | How many micro-wave sensor shall we used? | |
| S4A Answer | Normally 1 enough,but you can also install 2pcs,outdoors and indoors. | |
