Quick Details
-
Weight (KG):
-
0.1 KG
-
Product name:
-
Fiber laser module
-
Wavelength:
-
405-980nm
-
LD power(mW):
-
1-300mw
-
Fiber core diameter:
-
4μm 50μm 105μm 200μm
-
Numerical Aperture:
-
0.11 0.22 0.53
-
Fiber Length:
-
0.5m-10m
-
Connector:
-
SMA ST FC
-
Certification:
-
ISO2000:2008
-
TEC temperature control:
-
can be customized
-
Color:
-
blue green red orange purple
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
laser module
-
Brand Name:
-
OEM
-
Weight (KG):
-
0.1 KG
-
Product name:
-
Fiber laser module
-
Wavelength:
-
405-980nm
-
LD power(mW):
-
1-300mw
-
Fiber core diameter:
-
4μm 50μm 105μm 200μm
-
Numerical Aperture:
-
0.11 0.22 0.53
-
Fiber Length:
-
0.5m-10m
-
Connector:
-
SMA ST FC
-
Certification:
-
ISO2000:2008
-
TEC temperature control:
-
can be customized
-
Color:
-
blue green red orange purple

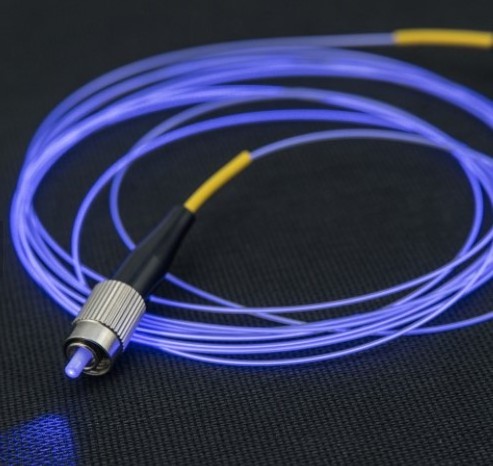

Fiber Coupled Laser Module
Elite could customize the laser module with fiber. The diameters of fiber have 4μm, 9μm, 50μm, 62.5μm, 105μm, 125μm, 170μm, 200μm, single mode fiber, multi mode fiber etc. it has SMA, FC, or ST connector and different fiber length. The wavelength includes 405nm, 445nm, 520nm, 532nm, 635nm, 650nm, 670nm, 690nm, 740nm, 780nm, 808nm, 830nm, 850nm, 940nm, 980nm. The LD driver or TEC temperature control could be customized.
Low Power Coaxial Series:
Different wavelength with power less than 300mW could be made into coaxial. Its chaeacteristics are lower power consumption, compact size and customized LD driver. PD control could be added to increase stability and reliability of the laser module.
High Power Butterfly Series
With power more than 500mW, buterfly package can be customized with TEC temperature control and LD drive to increase the working temperature range and reliability of the laser module. The diameters of fiber are 50μm, 62.5μm, 105μm, 170μm, 200μm, multi-mode fiber etc.
Features
Low Power Coaxial Series:
|
Item
|
Specifications
|
|
Wavelength
|
405nm, 450nm, 520nm, 635nm, 660nm, 670nm, 685nm, 780nm, 808nm, 850nm, 860nm, 980nm
|
|
Output Power
|
1mW~300mW
|
|
Fiber Core Diameter
|
4um, 9um, 50um, 62.5um, 105um, 125um, 170um, 200um
|
|
Numerical Aperture
|
0.11, 0.12, 0.17, 0.18, 0.22, 0.37, 0.53
|
|
Fiber Length
|
0.5-10M
|
|
Connector
|
FC, ST, SMA
|
|
Dimensions
|
Customized
|
High Power Series:
|
Item
|
Specifications
|
|
Wavelength
|
635nm, 640nm, 660nm, 780nm, 808nm, 850nm, 980nm
|
|
Output Power
|
0.5W~50W
|
|
Fiber Core Diameter
|
105um, 200um, 400um
|
|
Numerical Aperture
|
0.22, 0.37, 0.53
|
|
Fiber Length
|
0.5-10M
|
|
Connector
|
FC, ST, SMA
|
|
Dimensions
|
With TEC temperature control
|
Single Fiber Coupled Laser Module Package:
FAQs
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What is the quality inspection of the product? 100% Full inspection (From materials, semi-finished products, finished product to delivery), the Final Test Report will be provided.
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, IEC, RoHS.
7. How long is the warranty period?
12 months.
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What is the quality inspection of the product? 100% Full inspection (From materials, semi-finished products, finished product to delivery), the Final Test Report will be provided.
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, IEC, RoHS.
7. How long is the warranty period?
12 months.
