Mug Industrial Plastic Rotary Round Heat Transfer Printing Machine for glass bottles plastic tube Thermal Transfer Machine
Mug Industrial Plastic Rotary Round Heat Transfer Printing Machine for glass bottles plastic tube Thermal Transfer Machine
Mug Industrial Plastic Rotary Round Heat Transfer Printing Machine for glass bottles plastic tube Thermal Transfer Machine
Mug Industrial Plastic Rotary Round Heat Transfer Printing Machine for glass bottles plastic tube Thermal Transfer Machine
Mug Industrial Plastic Rotary Round Heat Transfer Printing Machine for glass bottles plastic tube Thermal Transfer Machine
Mug Industrial Plastic Rotary Round Heat Transfer Printing Machine for glass bottles plastic tube Thermal Transfer Machine
Mug Industrial Plastic Rotary Round Heat Transfer Printing Machine for glass bottles plastic tube Thermal Transfer Machine
Mug Industrial Plastic Rotary Round Heat Transfer Printing Machine for glass bottles plastic tube Thermal Transfer Machine

Mug Industrial Plastic Rotary Round Heat Transfer Printing Machine for glass bottles plastic tube Thermal Transfer Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $5019
≥3 Sets
US $4510
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220 / 380V 60 / 50Hz
Place of Origin:
Guangdong, China
Brand Name:
LC
Model Number:
LC-TH-300R
Use:
Lipstick/Pencil/Bottle Printer
Dimensions(L*W*H):
1250* 780 * 1970mm
Weight:
295 KG
Product name:
hot foil stamping machine hot foil printing press for glass bottles
Heating plate size:
400*300mm
Work Table size:
300 * 400mm
Stamping head adjustable stroke:
≤70mm hot head outer diameter 100mm inner diameter of 80mm
Max stamping diameter:
300mm
Stamping temperature range of options:
from room temperature to 280 degrees Celsius
The maximum printing speed:
500pcs / hr
Stamping pressure range of options:
≤2500kgf (7bar)
Air consumption:
165L / min
Local Service Location:
None

Quick Details

Condition:
New
Plate Type:
Letterpress
Color & Page:
Multicolor
Voltage:
220 / 380V 60 / 50Hz
Place of Origin:
Guangdong, China
Brand Name:
LC
Model Number:
LC-TH-300R
Use:
Lipstick/Pencil/Bottle Printer
Dimensions(L*W*H):
1250* 780 * 1970mm
Weight:
295 KG
Product name:
hot foil stamping machine hot foil printing press for glass bottles
Heating plate size:
400*300mm
Work Table size:
300 * 400mm
Stamping head adjustable stroke:
≤70mm hot head outer diameter 100mm inner diameter of 80mm
Max stamping diameter:
300mm
Stamping temperature range of options:
from room temperature to 280 degrees Celsius
The maximum printing speed:
500pcs / hr
Stamping pressure range of options:
≤2500kgf (7bar)
Air consumption:
165L / min
Local Service Location:
None
Product description
Plane / Cylindrical Plastic Cup Pneumatic Roll Heat Press Machine

Flat and round heat transfer machine
The TH-300R heat transfer machine has a beautiful appearance and is mainly used for surface printing of high-end toys, stationery, wood, high-end cosmetics, and so on.
Especially suitable for heat transfer printing of ABS, PP, PE, PS, ABS, PVC, etc.
Heat transfer shape: flat, round, oval, conical.
Scope of application: such as plastic cups, cosmetic bottles, glass bottles, transfer bottles, fishing rod, bait, etc.
Model Numeber
TH-300R
Brand Name
LC
（Plane）Max Printing
250*300mm
Max Printing
￠300mm
Length of Rubber Roller
150mm
Working table area
600 x 200 mm
Up-and down distance
80 mm
Table Stroke
300 mm
Heat wattage
1600 W
Foil feed
Motor Drive
Temperature range
0 - 400℃
Net Weight
295 Kg
Outer dimension
1100*850 *1700 mm
Max Oil Pressure
70kgf/cm2
Wattage
220V 50Hz
Air Pressure
0.5-0.7MPa
work speed
500-1000P/hour
Application area
learth ， toys ， plastic parts





Features
1.Controlled by touch-screen, ensure reliable machine operation.
2. Using Omron temperature controller to ensure that heating
temperature stability, and ensure stamping quality.
3. Toggle mechanism design, low consumption of compressed air,  pressure strong.
4. Stamping pressure, temperature, hot pressing time is adjustable.
5. Table automatically before and after the move, easy to operate safely and quickly.
6. Automatic document feeder, the collection of paper, and adjustable.
7. Installation of the photocell (electric eye) with the contacts after the transfer paper on the track in place control.
8. Stamping head height-adjustable lift, a larger work can be stamping.
9. with security guards to protect the operator's safety.

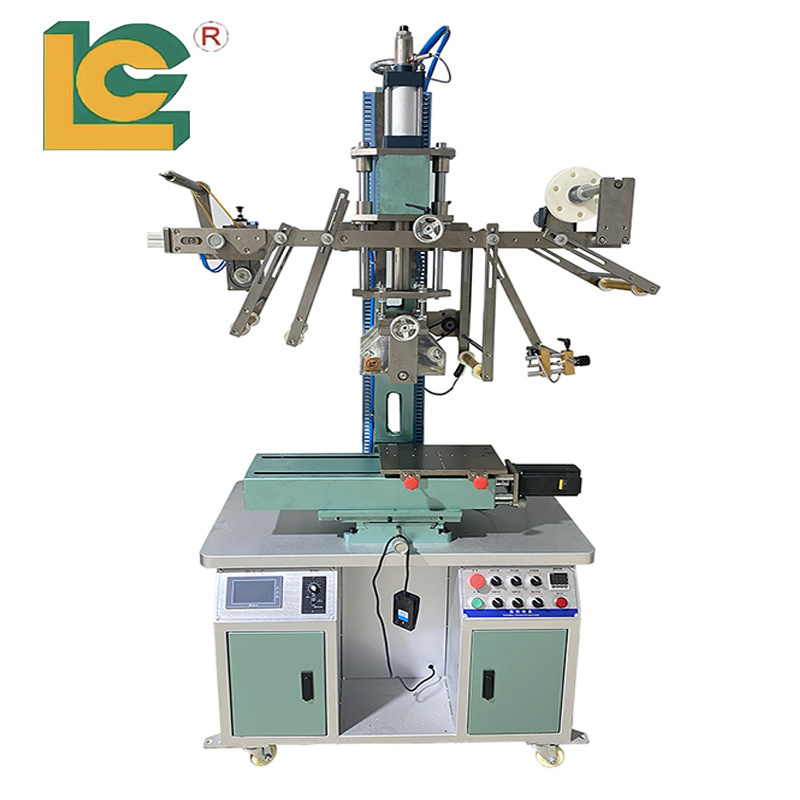

Machine Picture
Printing sample
