Quick Details
-
Warranty:
-
One year, 1 Year
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
QJ
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
4hp-330hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
150mm-500mm
-
Power:
-
3 KW-250 KW, Electric
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Material:
-
Steel
-
Motor:
-
100% Copper Wire
-
Product name:
-
Deep well vertical submersible electric water pump list
-
Type:
-
Vertical
-
Name:
-
vertical submersible electric water pump list
-
Fuel:
-
electric
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure or Low Pressure
-
Voltage:
-
380V/415V/660V/1140V
-
Warranty:
-
One year, 1 Year
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
QJ
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
4hp-330hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
150mm-500mm
-
Power:
-
3 KW-250 KW, Electric
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Material:
-
Steel
-
Motor:
-
100% Copper Wire
-
Product name:
-
Deep well vertical submersible electric water pump list
-
Type:
-
Vertical
-
Name:
-
vertical submersible electric water pump list
-
Fuel:
-
electric
|
|
Specification
|
|
|
|
Min.well diameter
|
150-500mm
|
|
|
|
Capacity Q
|
5-900m
3
/h
|
|
|
|
Head H
|
13-600m
|
|
|
|
Power P
|
3-250KW
|
|
|
|
Motor
|
Brand optional,100% Copper Wire
|
|
|
|
Voltage
|
380V/415V/660V/1140V
|
|
|
|
Material
|
Cast Iron/SS316/SS304/Copper,Can be customized
|
|
|
|
Scope of supply
|
Pump,Motor,Pipe,Control cabinet,Flange,Wearing parts,Other Accessories
|
|
|
|
Certification
|
ISO 9001
|
|
|
|
Warranty
|
One Year/According to customer requirements
|
|
|
If you have any questions, please send me an inquiry, we will choose the model and quotation for you.
T
he deep well pump is the host by the series QJ(R) well submersible pump and YQS submersible motor of underwater integrated work,it has a compact structure, small volume, low noise, no secondary pollution, installation & use convenient maintenance, safe and reliable operation, high efficiency and energy saving, no need to build the pump room and so on. It can vertical and horizontal installation. It can also be used for open water and as a ground pump. Compared with other ground water pumps, it has the advantages of small footprint, no pollution and leakage, convenient use and installation, etc. It can be used for water supply and other occasions. It is the traditional ISG, DL centrifugal pump ideal alternative pumping, drainage tools.
The QJ(R) submersible pump is an energy-saving product designed according to national standards.It is mainly used to pump groundwater from deep wells, and is also widely used in farmland irrigation, water supply and drainage in cities, industrial and mining enterprises, water supply for human and animal water in highland and mountainous areas, and high-rise buildings.
For example:150QJ(R)10-150
MOTOR:YQST250-75
150- Adapt to the minimum diameter (mm) 150 YQS - Asynchronous submersible motor.
QJ(R)- Well submersible pump (hot water) T - High thrust structure
10-Capacity:10m³/h 250 - Min well diameter(mm)
150-Head:150m 75 - Motor power(kw)
150- Adapt to the minimum diameter (mm) 150 YQS - Asynchronous submersible motor.
QJ(R)- Well submersible pump (hot water) T - High thrust structure
10-Capacity:10m³/h 250 - Min well diameter(mm)
150-Head:150m 75 - Motor power(kw)

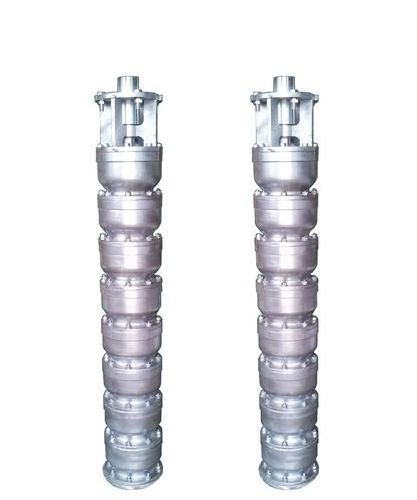

Electric vertical submersible deep well centrifugal water pump
1) The pump is centrifugal or mixed flow; the water lubricated bearing is adopted;connected with teh motor by rigid coupling.A non-return valve body is arranged at the upper end of the water pump to prevent the working parts from being damaged due to the backflow of water in the water pipe when the electric pump is stopped.
2) The motor is a closed water-filled wet structure.The stator winding of the motor is made of water-resistant polyethylene insulated nylon sheathed multilayer electromagnetic wire.The motor is filled with clean water to cool the motor and lubricate the bearings.
3) Pipe part: It is used to connect the electric pump to hoist it in the machine well and transport the water to the ground.
2) The motor is a closed water-filled wet structure.The stator winding of the motor is made of water-resistant polyethylene insulated nylon sheathed multilayer electromagnetic wire.The motor is filled with clean water to cool the motor and lubricate the bearings.
3) Pipe part: It is used to connect the electric pump to hoist it in the machine well and transport the water to the ground.
|
Model
|
Min.well diameter (mm)
|
Capacity
(m
3
/h)
|
Head
(m)
|
Power
(KW)
|
|
150QJ
|
150
|
5-50
|
13-350
|
3-30
|
|
200QJ
|
200
|
20-80
|
22-500
|
4-90
|
|
225QJ
|
225
|
40-130
|
14-360
|
4-90
|
|
250QJ
|
250
|
50-200
|
15-600
|
5.5-220
|
|
300QJ
|
300
|
200-300
|
20-240
|
18.5-220
|
|
350QJ
|
350
|
360
|
36-144
|
55-220
|
|
400QJ
|
400
|
370
|
16-96
|
25-140
|
|
500QJ
|
500
|
550-900
|
27-108
|
63-250
|
Parameter table above is only a part of whole.For more,please contact us directly.
