Quick Details
-
Return Force (kN):
-
500 kN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dominent
-
Year:
-
1
-
Voltage:
-
380v 440v
-
Dimension(L*W*H):
-
1900*1600*3300 mm
-
Weight (T):
-
4.5 T
-
Model Number:
-
Y98-200
-
Motor Power (kw):
-
18.5 kw
-
machine name:
-
hydraulic press
-
application:
-
manufacture cookware
-
total power:
-
18.5kw
-
main cylinder force:
-
1000KN
-
lower cylinder force:
-
500KN
-
max pressure for main cylinder liquid:
-
20Mpa
-
max stroke of knock-out cylinder:
-
250mm
-
beam speed- fast down:
-
330mm/s
-
beam speed- slow down:
-
32
-
beam speed- return:
-
300
Quick Details
-
Machine Type:
-
Four-column Two-beam Hydraulic Press
-
Slide Stroke (mm):
-
900
-
Ejector Force (kN):
-
30
-
Return Force (kN):
-
500 kN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dominent
-
Year:
-
1
-
Voltage:
-
380v 440v
-
Dimension(L*W*H):
-
1900*1600*3300 mm
-
Weight (T):
-
4.5 T
-
Model Number:
-
Y98-200
-
Motor Power (kw):
-
18.5 kw
-
machine name:
-
hydraulic press
-
application:
-
manufacture cookware
-
total power:
-
18.5kw
-
main cylinder force:
-
1000KN
-
lower cylinder force:
-
500KN
-
max pressure for main cylinder liquid:
-
20Mpa
-
max stroke of knock-out cylinder:
-
250mm
-
beam speed- fast down:
-
330mm/s
-
beam speed- slow down:
-
32
-
beam speed- return:
-
300
MACHINE APPLICATION:
WE MAINLY MANUFACTURE STAINLESS STEEL AND ALUMINUM COOKWARE MAKING MACHINES, including hydraulic press machine, edge cutting beading machine, washing machine, brazing machine, polishing machine and so on.

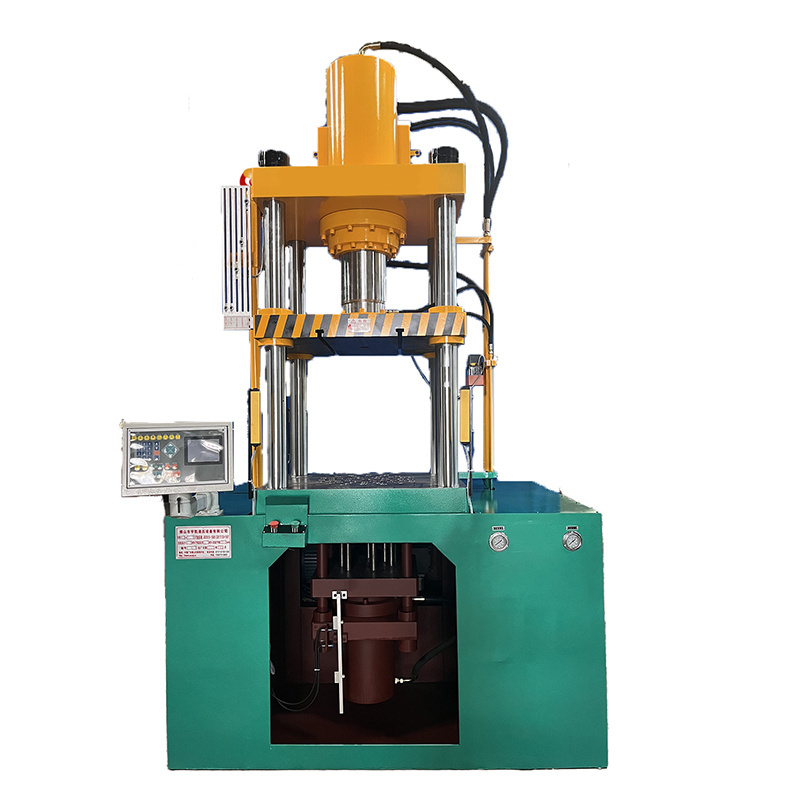

This cookware making machine is a hydraulic press machine designed for making aluminum pan and pot, can be also used for making ss cookwares and other round containers.
30 ton to 3000 ton hydraulic press machines for cookwares, kettle and sinks are available here.
Many cookware making factories are using our machines, such as HAMKO, KIAM, WALTON, RFL, TTK, MEYER, ZWILLING, WMF, HAMILTON, MIDEA, SUPOR and so on.
FEATURES:
1.FAST PRESS DRAWING AND FORMING
2.CASTED OIL CYLINDERS WITH LONG LIFE
3.CPU AND TOUCH SCREEN CONTROLLED
4.LESS DRAWING TEXTURES THAN OTHERS
5.PHOTOELECTRIC AND STROKE PROTECTED
6.STROKE,FORCE AND SPEED CAN BE ADJUSTED FREELY IN RATED RANGE
SPECIFICATIONS:
| Item | Unit | 120T | 150T | 200T | 250T | 280T | 300T |
| main cylinder force | KN | 800 | 1000 | 1300 | 1500 | 2000 | 2000 |
| lower cylinder force | KN | 400 | 500 | 700 | 800 | 800 | 1000 |
| max working pressure of main cylinder liquid | Mpa | 20 | 20 | 19 | 19 | 20 | 20 |
| max working liquid pressure of edge press cylinder | Mpa | 20 | 20 | 22 | 21 | 19 | 20 |
| max stroke of main cylinder | mm | 450 | 500 | 560 | 600 | 600 | 600 |
| max stroke of edge press cylinder | mm | 220 | 250 | 280 | 300 | 300 | 300 |
| max stroke of knock-out cylinder | mm | 200 | 250 | 250 | 250 | 250 | 250 |
| max distance from felxible beam to working flatform | mm | 850 | 900 | 960 | 1000 | 1000 | 1000 |
| min distance from felxible beam to working flatform | mm | 400 | 400 | 400 | 400 | 400 | 400 |
| effective size of working platform | mm | 600*600 | 700*700 | 800*800 | 880*880 | 920*920 | 1000*1000 |
| beam speed- no load down | mm/s | 380 | 330 | 320 | 310 | 300 | 230 |
| beam speed- slow down | mm/s | 33 | 32 | 28 | 27 | 25 | 21 |
| beam speed- return | mm/s | 310 | 300 | 290 | 280 | 270 | 210 |
OUR FACTORY:
WHY CHOOSE US:
1.Our enginneers are pioneers of hydraulic press machine in China with over 40 years experience.
2. We're capable to help you set up new factory from plant design to final production. A-Z Turnkey solution is available here.
3. Customized service is avalable, we can make machines for special extra big or small products.
