Quick Details
-
Brand Name:
-
top brand
-
Moving Type:
-
Crawler Bulldozer
-
Dimension(Long * Breadth * High):
-
5750*3725*3395mm
-
Certificate:
-
CE ISO
-
Location:
-
China
Quick Details
-
Weight (KG):
-
34000
-
Marketing Type:
-
New Product
-
Place of Origin:
-
China, China
-
Brand Name:
-
top brand
-
Moving Type:
-
Crawler Bulldozer
-
Dimension(Long * Breadth * High):
-
5750*3725*3395mm
-
Certificate:
-
CE ISO
-
Location:
-
China
Product Description
|
Product
|

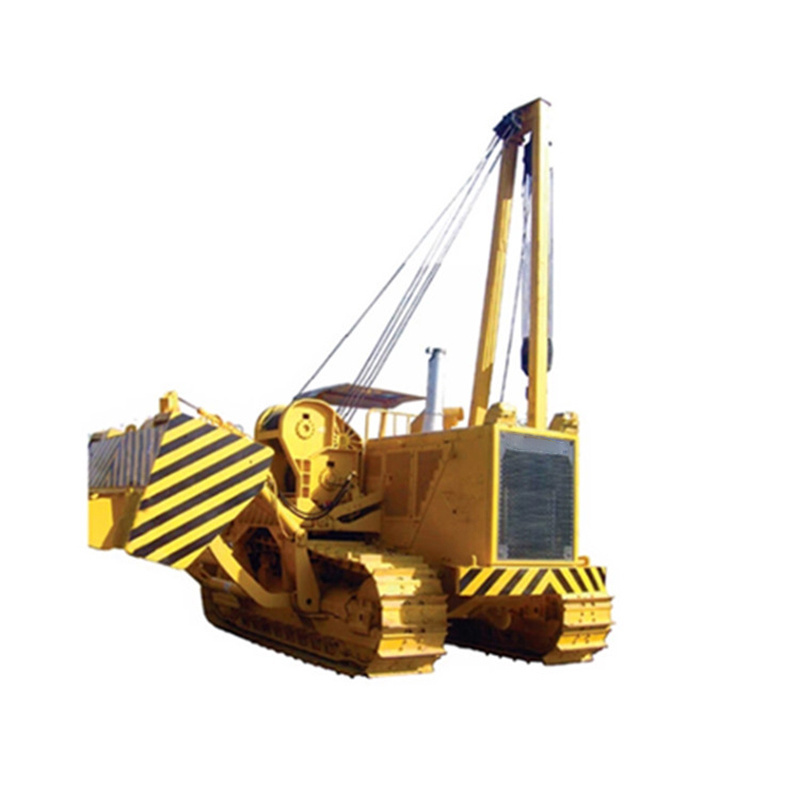

SP45Y
|
|
Performance parameters
|
|
|
Operating weight (Kg)
|
34000
|
|
Maximum lifting capacity(T)
|
45
|
|
Rated power of engine(kw/hp)
|
180Kw
|
|
Minimum turning radius (mm)
|
3200mm
|
|
Ground pressure (Mpa)
|
0.085
|
|
Engine
|
|
|
Engine model
|
Cum-mins NT855-C280S10
|
|
Number of cylinders× cylinder diameter× stroke(mm×mm)
|
6-139.7x152.4
|
|
Rated power/rated speed (kw/rpm)
|
180/2000
|
|
Maximum torque (N.m/r/min)
|
1085/1300
|
|
Overall dimensions of machine
|
|
|
Length (mm)
|
4855
|
|
Width (mm)
|
3690
|
|
Height (mm)
|
2700
|
|
Driving performance
|
|
|
Forward gear 1/Reverse gear 1 (km/h)
|
0-3.8/0-4.9
|
|
Forward gear 2/Reverse gear 2 (km/h)
|
0-6.8/0-8.5
|
|
Forward gear 3/Reverse gear 3 (km/h)
|
0-11.8/0-14.3
|
|
Traveling system
|
|
|
Hydraulic torque converter
|
Three-element single-stage and single phase
|
|
Transmission
|
Planetary gear, multi-plate clutch, and hydraulic + forced lubrication type
|
|
Main drive
|
Spiral bevel gear, one-stage deceleration and splash lubrication
|
|
Steering clutch
|
Wet type, multi-plate spring applied, hydraulically released, and manually-hydraulically operated
|
|
Steering brake
|
Wet type, floating belt type, and hydraulically assisted
|
|
Final drive
|
Two-stage straight gear reducer and splash lubrication
|
|
Chassis System
|
|
|
Suspension mode
|
Rigid crossbeam structure
|
|
Center distance of track (mm)
|
2250
|
|
Width of track shoes (mm)
|
610
|
|
Ground length (mm)
|
3050
|
|
Number of track shoes (One-sided/piece)
|
41
|
|
Chain track pitch(mm)
|
216
|
|
Number of carrier rollers (One-sided)
|
2
|
|
Number of track rollers (One-sided)
|
7
|
|
Working hydraulic system
|
|
|
Working pump
|
Fixed displacement gear pump, with maximum displacement at 116ml/r
|
|
Pilot pump
|
Fixed displacement gear pump, with maximum displacement at 10ml/r
|
|
Operating valve
|
Proportion multi-way valve
|
|
Counterweight cylinder bore(mm)
|
φ125
|
|
Tank capacity
|
|
|
Fuel tank (L)
|
465
|
|
Working hydraulic oil tank (L)
|
180
|
|
Working device
|
|
|
Maximum lifting height(mm)
|
5250
|
|
Hook lifting speed m/min
|
0--6.5
|
|
Boom length (m)
|
6.5
|
