- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
406*371*523 mm
-
Weight:
-
57
-
Rated power/speed:
-
3000 rpm
-
Marketing Type:
-
New Product 2021
-
Product name:
-
industrial Diesel Engine 402J-05
-
Rated Power:
-
3000 rpm
-
Quality:
-
Original
-
BORE*STROKE:
-
67*72 mm
-
Compression Ratio:
-
23.5:1
-
MOQ:
-
1 UNIT
-
Engine Model:
-
402J-05
-
Packing:
-
Standar Packing
-
Delivery time:
-
15 Working Days
-
Torque:
-
29.7 Nm @ 2100 rpm/22 lb-ft @ 2100 rpm
Quick Details
-
Displacement:
-
0.5L
-
Emission Standard:
-
EPA Tier4
-
Power:
-
8.8 kW, 11.8 HP, 7.5 kW, 10 HP
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
406*371*523 mm
-
Weight:
-
57
-
Rated power/speed:
-
3000 rpm
-
Marketing Type:
-
New Product 2021
-
Product name:
-
industrial Diesel Engine 402J-05
-
Rated Power:
-
3000 rpm
-
Quality:
-
Original
-
BORE*STROKE:
-
67*72 mm
-
Compression Ratio:
-
23.5:1
-
MOQ:
-
1 UNIT
-
Engine Model:
-
402J-05
-
Packing:
-
Standar Packing
-
Delivery time:
-
15 Working Days
-
Torque:
-
29.7 Nm @ 2100 rpm/22 lb-ft @ 2100 rpm
Products Description
|

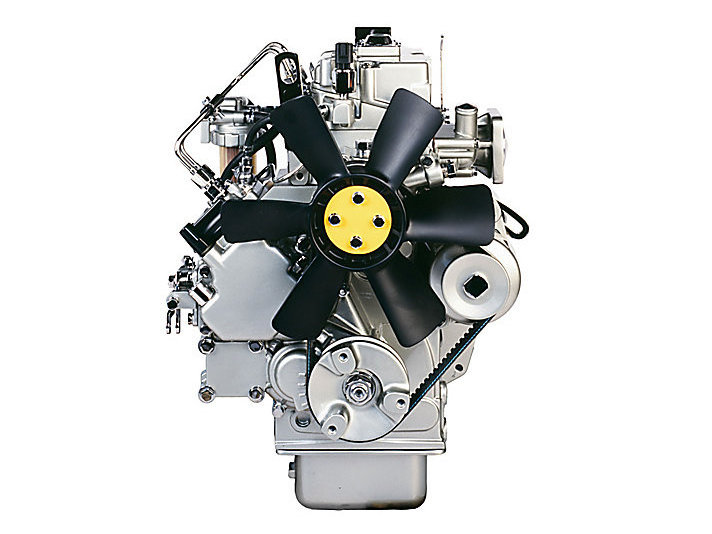

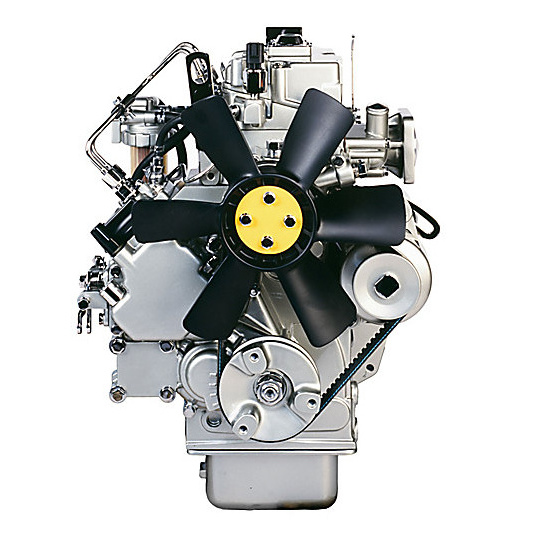

402J-05
|
|
|
|
Rated Power
|
|
|
|
Maximum Power
|
8.8 kW/11.8 HP
|
|
|
Maximum Torque
|
29.7 Nm @ 2100 rpm/22 lb-ft @ 2100 rpm
|
|
|
Rated Power
|
3000 rpm
|
|
|
Minimum Power
|
7.5 kW/10 HP
|
|
|
Emission Standard
|
|
|
|
Emission Standard
|
Stage V/EPA Tier 4 Final
|
|
|
Universal
|
|
|
|
Number of cylinders
|
Inline 2 cylinder
|
|
|
Circulation
|
4-stroke
|
|
|
Bore
|
67 mm
|
|
|
Stroke
|
72 mm
|
|
|
Displacement
|
0.5 L
|
|
|
Compression Ratio
|
23.5:1
|
|
|
Air inlet
|
Natural aspiration
|
|
|
combustion system
|
Indirect injection
|
|
|
Rotation
|
Anticlockwise facing flywheel
|
|
|
cooling system
|
liquid
|
|
|
Dimension
|
|
|
|
Length
|
406 mm
|
|
|
Width
|
371 mm
|
|
|
Height
|
523 mm
|
|
|
Weight
|
57 kg
|
|
Features:
The
400 Series
offers competitively strong performance and excellent fuel economy. Manufactured with the right technology, these engines are reliable and durable, have a low cost of ownership, and are suitable for multiple markets.
The 400 Series has a wide power range that allows you to configure your solution to your specific machine, regional and market needs.
Powerbands overlap between models, and options are available to help optimize performance and functionality, as well as increase the value of the customer's machine in the application.
We offer a
one-year standard warranty
on fixed speed engines and a
two-year standard warranty
on variable speed engines.
As an end user of the 400 Series, you also benefit from OGEM, the full range of power solutions provider, world-class product support and repair coverage programs.
These engines feature a compact design for a variety of applications including
skid steers, mini excavators, wheel loaders, welders, lift platforms, light towers, small tractors, air compressors, lawn care machinery and material handling mechanical.
The six core engines in the
400 Series
are configured to meet Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final emissions standards, giving you flexibility to choose according to the market.
The 400 Series gives you a seamless power range of 8.2-50 kW (11-67 hp), including 2-, 3- and 4-cylinder models, designed with a serialized interface look. Available in a variety of ratings and configurations, the series can be customized to meet the most stringent requirements.
Through the selective use of indirect and direct injection fuel systems, OGEM is able to provide world-class engines with the benefits of improved performance and low noise.
Please feel free to contact
>>>Click to Contact Us Now<<<
Related products
|
Spare Parts Categories
|
Liner Kit
|
Piston Kit
|
Piston Ring
|
|||
|
Overhaul Kit
|
Liner Kit
|
Piston Kit
|
Piston Ring
|
|||
|
Liner / Sleeve
|
Full Gasket Kit
|
Head Gasket
|
Cylinder Head
|
|||
|
Cylinder Block
|
Engine Bearings
|
Engine Valves
|
Connecting Rod
|
|||
|
Crankshaft
|
Camshaft
|
Water Pump
|
Oil Pump
|
|||
|
Fuel Injection Pump
|
Fuel Pump
|
Fuel Injector
|
Fuel Injector Nozzle
|
|||
|
Glow Plug
|
Shut Off Solenoid
|
Rocker Arm Assy
|
Starter
|
|||
|
Alternator
|
Filter
|
Turbocharger
|
Plunger
|
|||
|
Oil Cooler
|
Oil Cooler Cover
|
Fan Blade
|
Manifold
|
|||
About us
Chongqing Ogem Trading Co., Ltd
Chongqing Ogem Trade Co., Ltd has been specialized in service and supply of diesel engines and parts over 15 years, mainly focus on diesel engine models
400 series,1100 series,1200 series,2200 series,2400 series
etc. In April 2018, Ogem was launched to provide better more service to global markets, with alternative quality parts for Generators, Mining& Truck, Marine Engines and Construction Equipments.

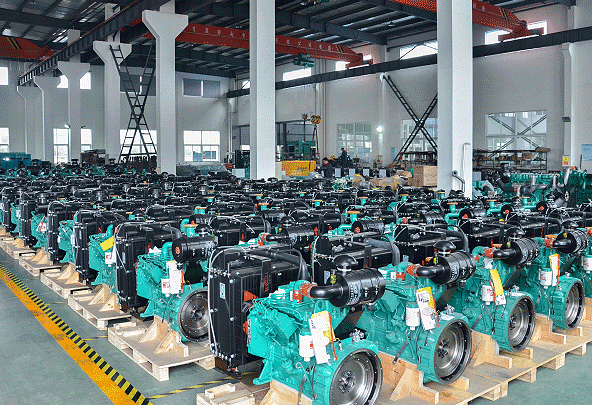

Warehouse
